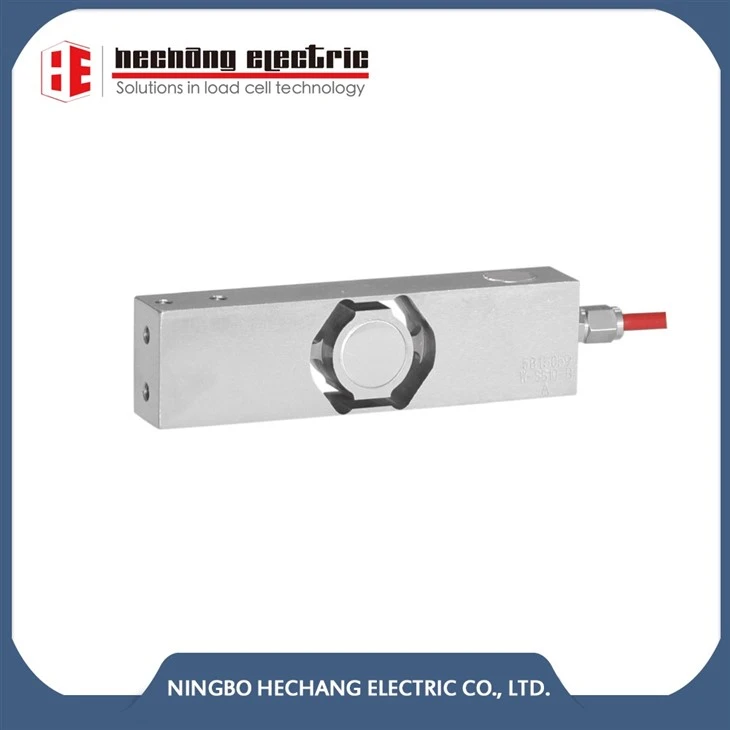

Stainless Steel Single Point Load Cell PW15AH
Reference: HPW15AH
SPECIAL FEATURES:
1. Capacity 10~100kg;
2. Sensitivity:1.9mV/V;
3. High accuracy 0.03%F.S;
4. Stainless steel construction;
5. Environmental protection: IP68;
6. Interchangeable products HBK PW15AH;
Description
DESCRIPTION
The HPW15AH single point load cell is enormously robust, hermetically encapsulated, has the highest possible degree of protection IP68 / IP69K. The HPW15AH load cell provides stable results under extreme ambient conditions. It is compatible with HBK PW15AH.
APPLICATIONS
- Platform scales

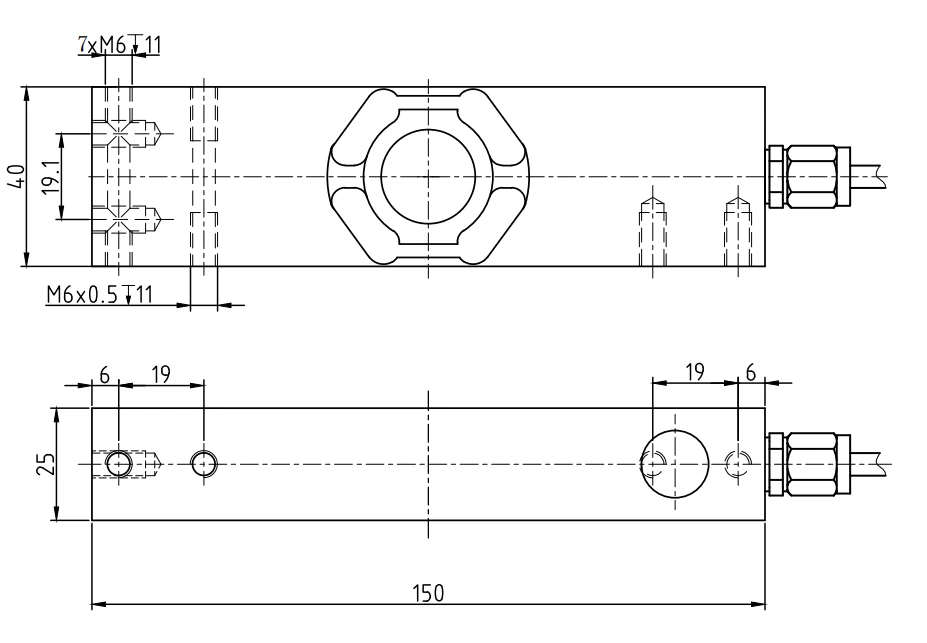

OUTLINE DIMENSIONS in mm

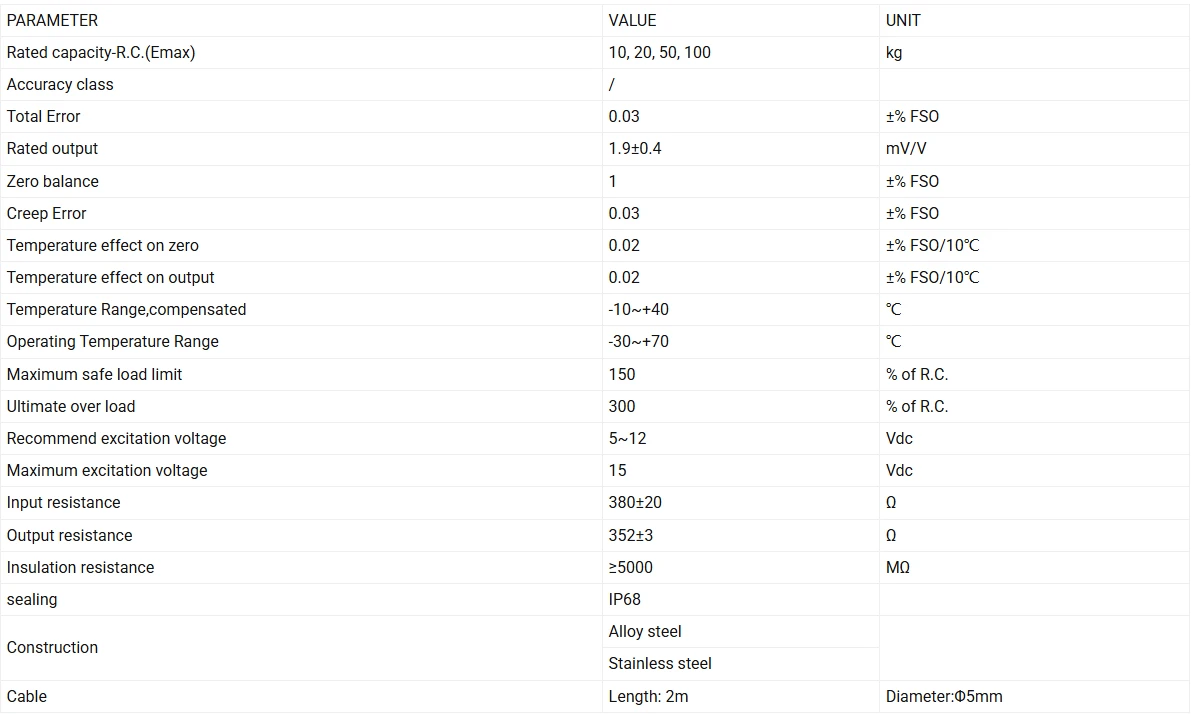

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
