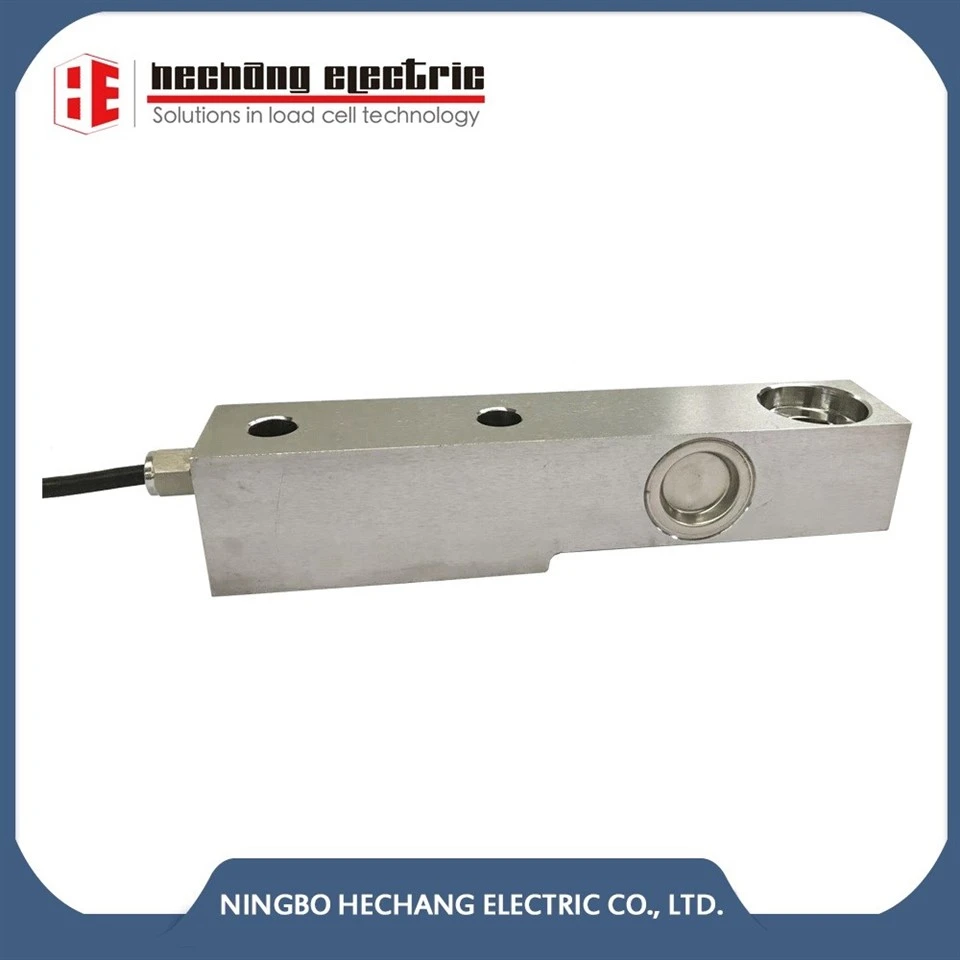

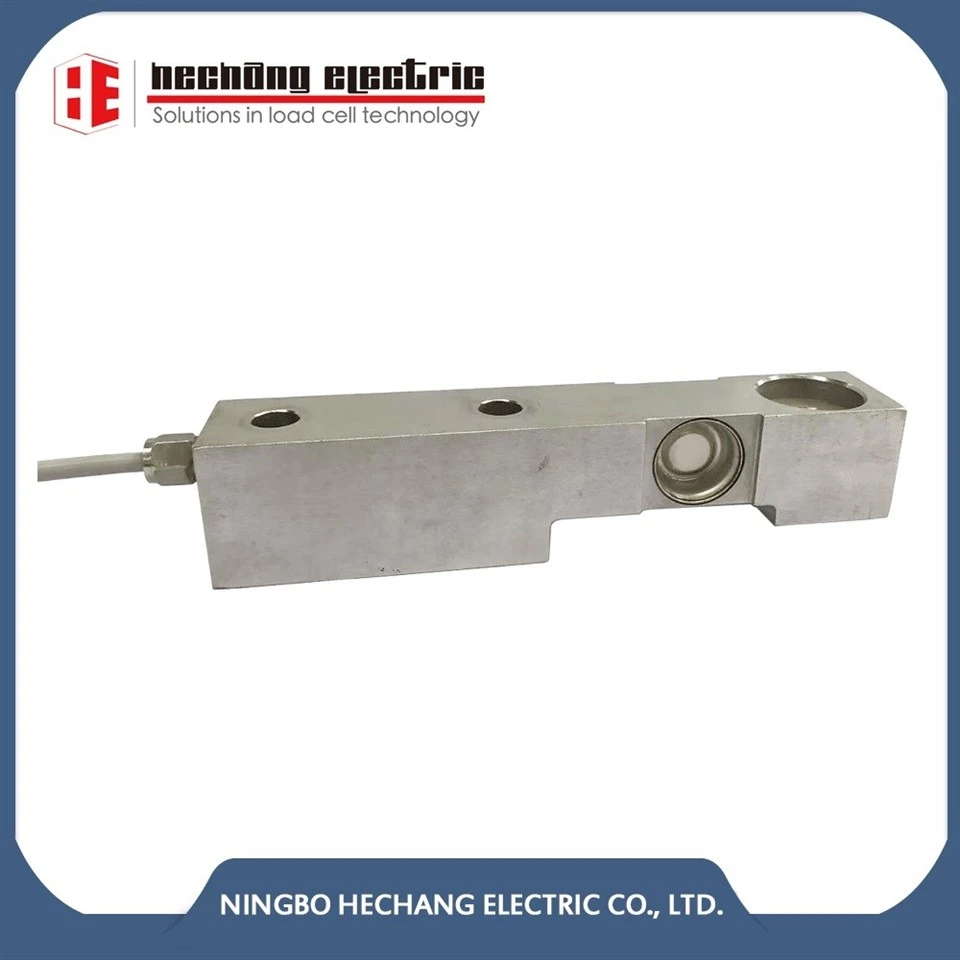

Single Ended Shear Beam Load Cell
Reference: HC-SB
SPECIAL FEATURES:
1. Capacity 300kg~25t;
2. Sensitivity: 2.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP67~IP68;
6. Optinal: stainless steel;
Description
DESCRIPTION
The HC-SB is a single ended shear beam load cell. This robust product is suitable for a wide range of platform scales, pallet scales, overhead track scales, and process weighing applications. The fully welded construction and water block cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical, and allied process industries.
APPLICATIONS
● low profile platform scales
● Belt weighing
● Pallet weighing
● Overhead track scales

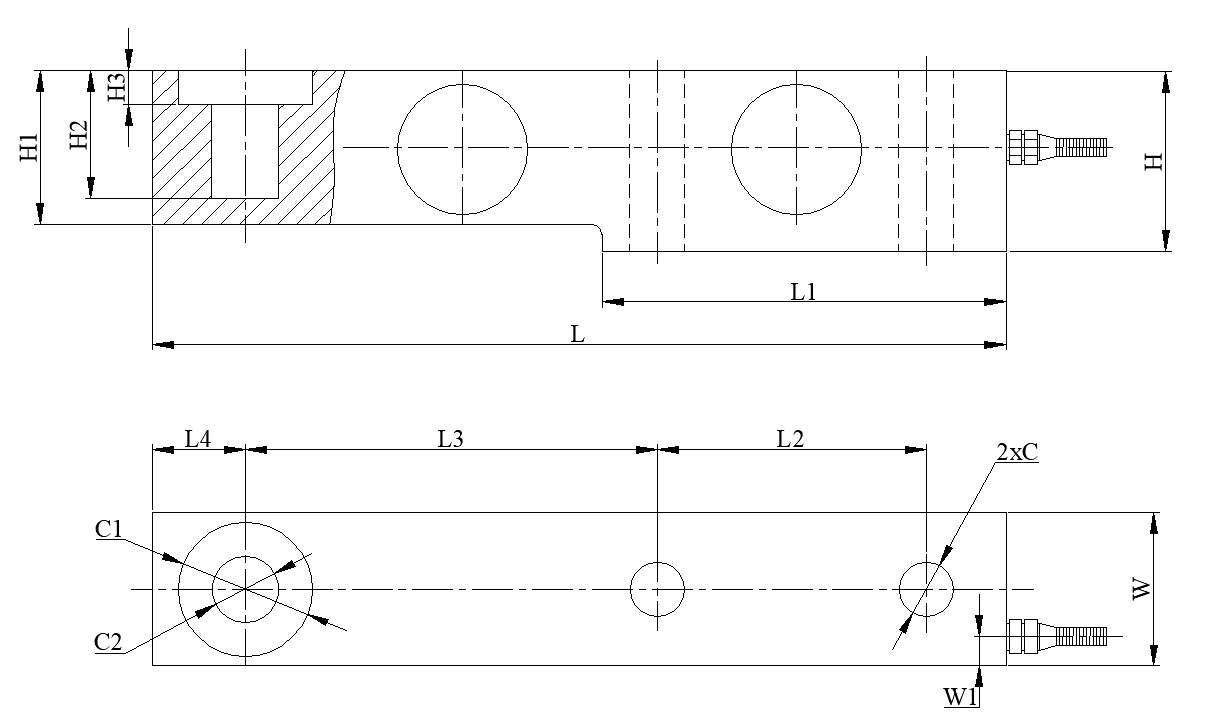

OUTLINE DIMENSIONS in mm
|
Outline Dimension |
||||||||||||||
|
Rated capacity |
L |
L1 |
L2 |
L3 |
L4 |
H |
H1 |
H2 |
H3 |
C |
C1 |
C2 |
W |
W1 |
|
300kg~3t |
203 |
95 |
64 |
98 |
22 |
43 |
36.6 |
30.5 |
8 |
Φ13 |
Φ32 |
Φ16 |
36.6 |
7 |
|
5t~8t |
235 |
110 |
66 |
124 |
22 |
52 |
48 |
30 |
12 |
Φ21 |
Φ38 |
Φ22 |
48 |
7 |
|
10t |
279 |
133 |
82 |
140 |
32 |
67 |
60 |
20 |
8.5 |
Φ28 |
Φ48 |
Φ32 |
60 |
8.5 |
|
15t~25t |
318 |
153 |
89 |
159 |
38 |
82.5 |
70 |
24 |
9.5 |
Φ34 |
Φ54 |
Φ38 |
70 |
9.5 |

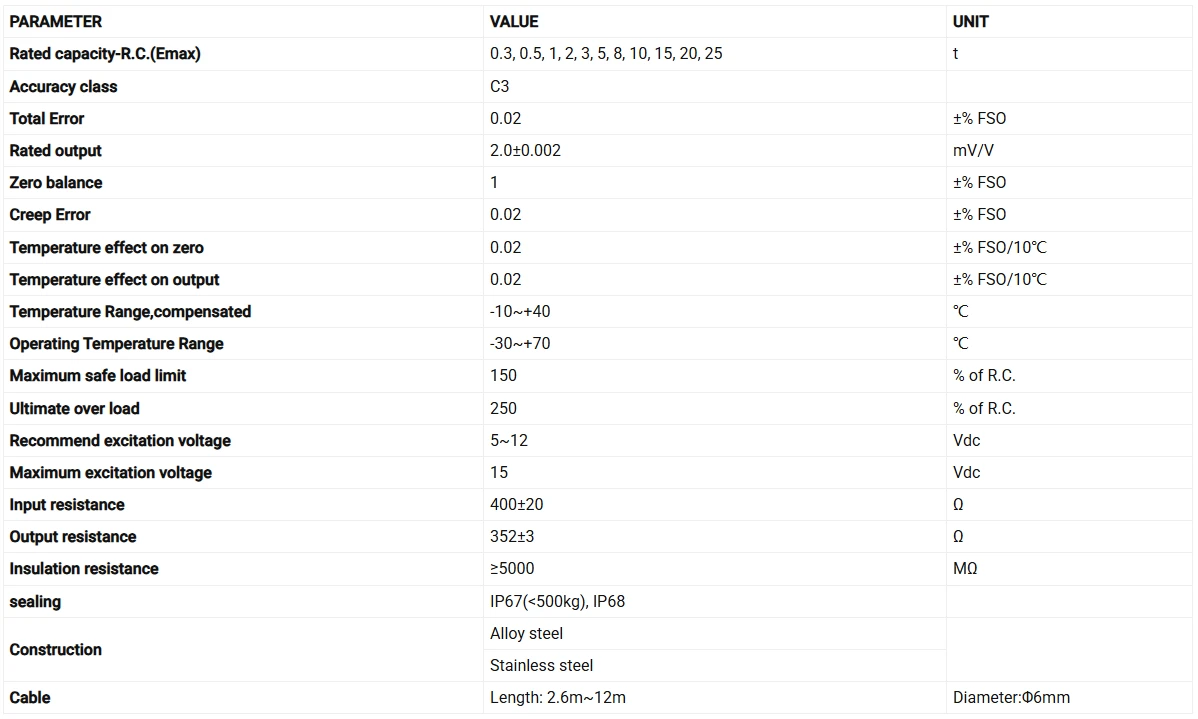

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
