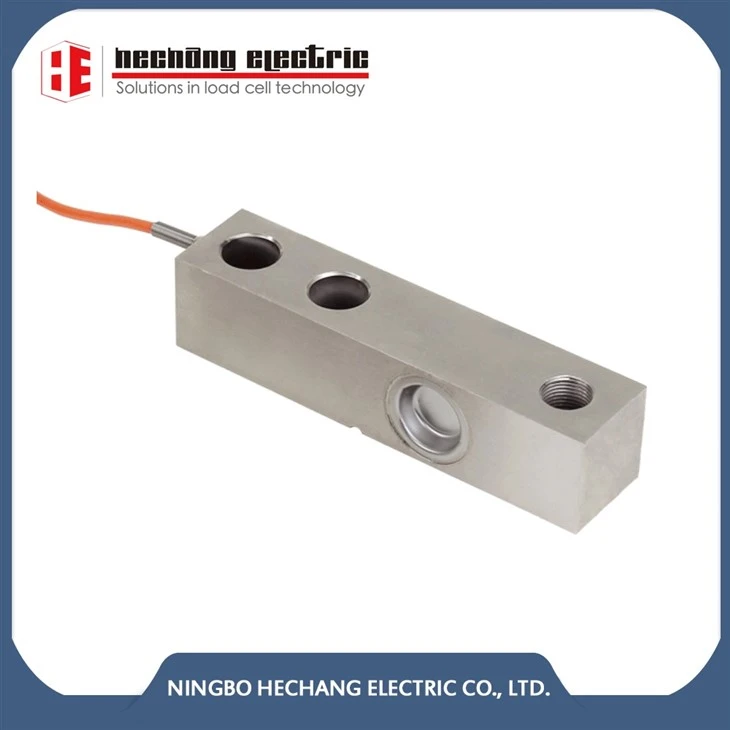

NTEP Shear Beam Load Cell

The Model HCQBY is a low‑profile shear beam load cell engineered for high‑accuracy platform scales, pallet scales, and process weighing applications. Its design offers high immunity to shock loads and side forces, ensuring stable and repeatable measurements even under demanding conditions. With a nominal sensitivity of 3 mV/V, the HCQBY delivers strong, reliable output signals for precise weight indication. Nickel plating combined with full environmental sealing guarantees long‑term durability and corrosion resistance. For applications requiring enhanced protection in harsh or corrosive environments, a stainless steel version is available for lb‑rated models, providing IP‑grade sealing and extended service life.
