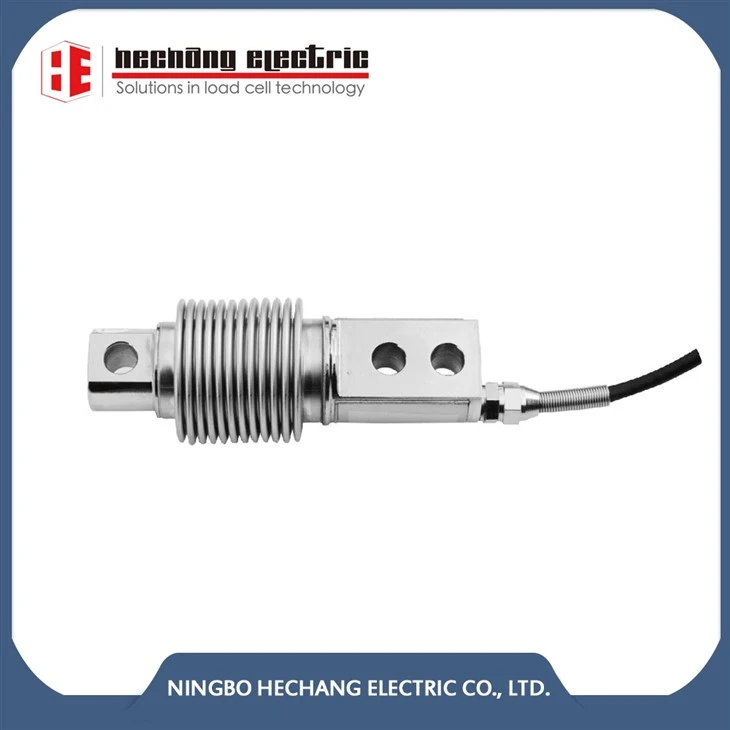

Bellow Type Load Cell
Reference: HCZ6-SS
SPECIAL FEATURES:
1. Capacity 5kg~500kg;
2. Sensitivity: 2.0mV/V or 3.0mV/V;
3. High accuracy;
4. Stainless steel;
5. Environmental protection: IP68;
6. Interchangeable products HBK Z6, Mettler Toledo MTB, VISHAY 355;
Description
DESCRIPTION
The HCZ6-SS is a fully weld-sealed stainless steel bellow type load cell, Hermetically sealed waterproof IP68. The HCZ6-SS is a universal load cell that offers an excellent price-performance ratio, making it a highly attractive choice. Its design, inspired by the bar bending principle, is specifically tailored for cantilever applications. It can fully repleace HBK Z6, Mettler Toledo MTB, VISHAY 355...
APPLICATIONS
● Belt scales
● Platform scales
● Packaging machines
● Silo weighing
OUTLINE DIMENSIONS in mm

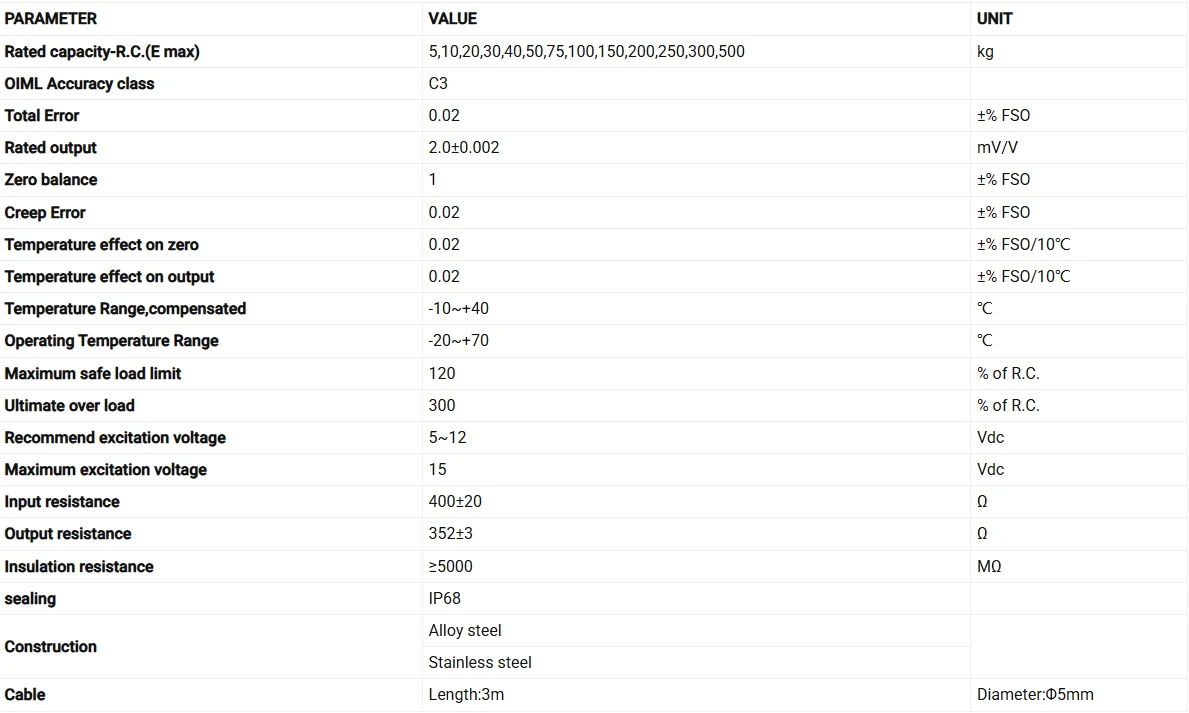

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
