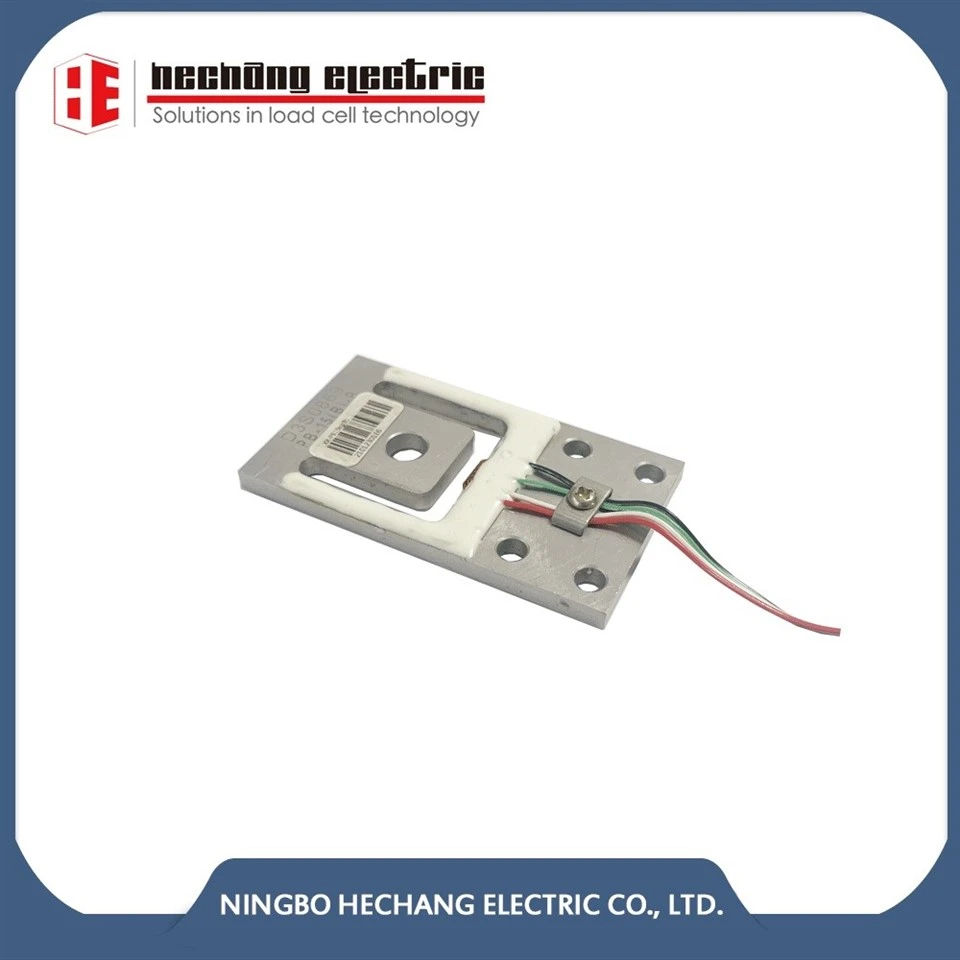

Planar Beam Load Cell
Reference: HCQB
SPECIAL FEATURES:
1. Capacity 100kg~2500kg;
2. Sensitivity: 2.0mV/V or 3.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP67~IP68;
6. Optinal: stainless steel;
Description
DESCRIPTION
The planar beam load cell range is designed for applications where a low profile solution is needed. Typically, our planar beam load cells would be used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor. The planar beam family comes with the usual innovations in build quality and performance, such as a unique humidity resistance coating to ensure durability in most environments.
APPLICATIONS
● Medical Scales
● Incubators
● Autonomous Vehicles
● Industrial Robotics
● Medical Robotics
● Agricultural Robotics
● Bench Scales
● Checkout Scales

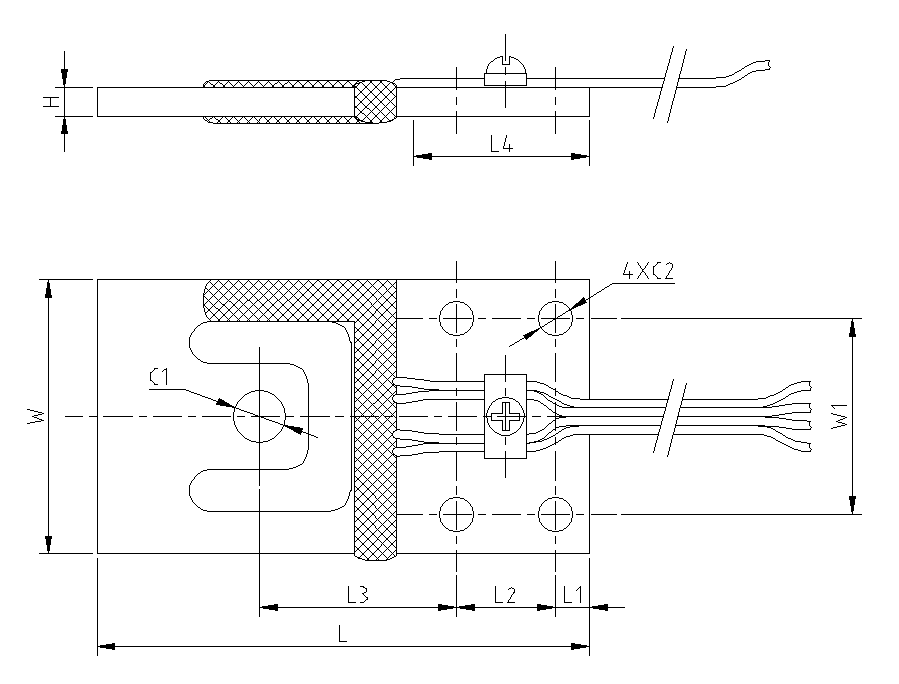

OUTLINE DIMENSIONS in mm
|
Outline Dimension |
||||||||||
|
Rated capacity |
L |
L1 |
L2 |
L3 |
L4 |
H |
W |
W1 |
C1 |
C2 |
|
3.75kg |
70 |
4.9 |
14 |
28 |
23.7 |
2 |
39 |
27.8 |
5.1 |
5.1 |
|
7.5kg |
70 |
4.9 |
14 |
28 |
23.7 |
2.5 |
39 |
27.8 |
5.1 |
5.1 |
|
15kg |
70 |
4.9 |
14 |
28 |
23.7 |
4.1 |
39 |
27.8 |
7.6 |
5.1 |
|
37.5kg |
76.2 |
6 |
15 |
29.3 |
27 |
4.8 |
44.5 |
30 |
7.6 |
6.6 |
|
75kg |
84.4 |
6.4 |
15 |
34 |
27.7 |
6.4 |
54.8 |
30 |
7.6 |
6.6 |
|
150kg |
107.3 |
7.8 |
22.9 |
45.9 |
38.4 |
7.9 |
69.9 |
44.5 |
9.1 |
8.1 |
SPECIFICATIONS
|
PARAMETER |
VALUE |
UNIT |
|
Rated capacity-R.C.(Emax) |
3.75, 7.5, 15, 37.5, 75, 150 |
Kg |
|
Accuracy class |
/ |
|
|
Total Error |
0.05 |
±% FSO |
|
Rated output |
1.0±0.2 |
mV/V |
|
Zero balance |
3 |
±% FSO |
|
Creep Error |
0.1 |
±% FSO |
|
Temperature effect on zero |
0.05 |
±% FSO/10℃ |
|
Temperature effect on output |
0.05 |
±% FSO/10℃ |
|
Temperature Range,compensated |
-10~+40 |
℃ |
|
Operating Temperature Range |
-30~+70 |
℃ |
|
Maximum safe load limit |
150 |
% of R.C. |
|
Ultimate over load |
250 |
% of R.C. |
|
Recommend excitation voltage |
5~12 |
Vdc |
|
Maximum excitation voltage |
15 |
Vdc |
|
Input resistance |
1220±15 |
Ω |
|
Output resistance |
1000±5 |
Ω |
|
Insulation resistance |
≥2000 |
MΩ |
|
sealing |
IP67 |
|
|
Construction |
aluminium |
|
|
Cable |
Length: 0.5m |
Flat cable |
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
