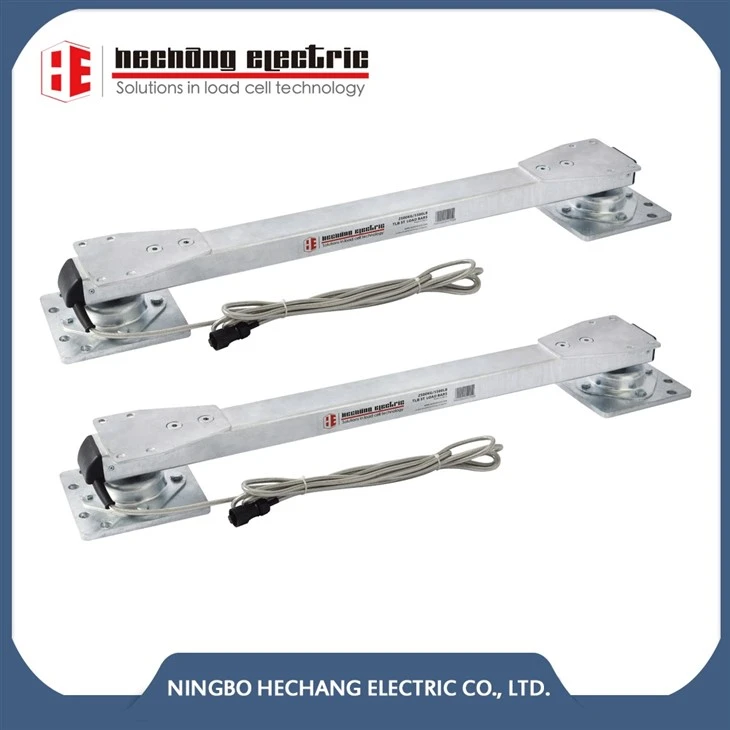

Heavy Duty 5T Load Bars
Reference: TLB 5T
SPECIAL FEATURES:
1. Heavy capacitty up to 5000kg | 11,000lb;
2. Compatible with third-party weigh indicators;
3. Corrosion-resistant hot-dip galvanized steel housing;
4. Engineered with heavy structural casing and heavy-duty potting;
5. Applications: Cattle platform, standard cattle crush, hydraulic Squeeze Chute.
Description
DESCRIPTION
The Hechang TLB 5T TITAN Load Bars are permanent, high-capacity electronic weighing sensors designed for under-chute installations. Engineered for high-volume cattle operations, they are built to withstand the extreme impact and weight of heavy manual or hydraulic squeeze chutes.
With a heavy capacity designed to handle the heaviest of cattle crushes, the TLB 5T ensures superior performance and the ideal weighing set-up for your livestock.
SPECIAL FEATURES
-
Heavy capacitty up to 5000kg | 11,000lb;
-
Compatible with third-party weigh indicators;
-
Corrosion-resistant hot-dip galvanized steel housing;
-
Engineered with heavy structural casing and heavy-duty potting;
-
Applications: Cattle platform, standard cattle crush, hydraulic Squeeze Chute.

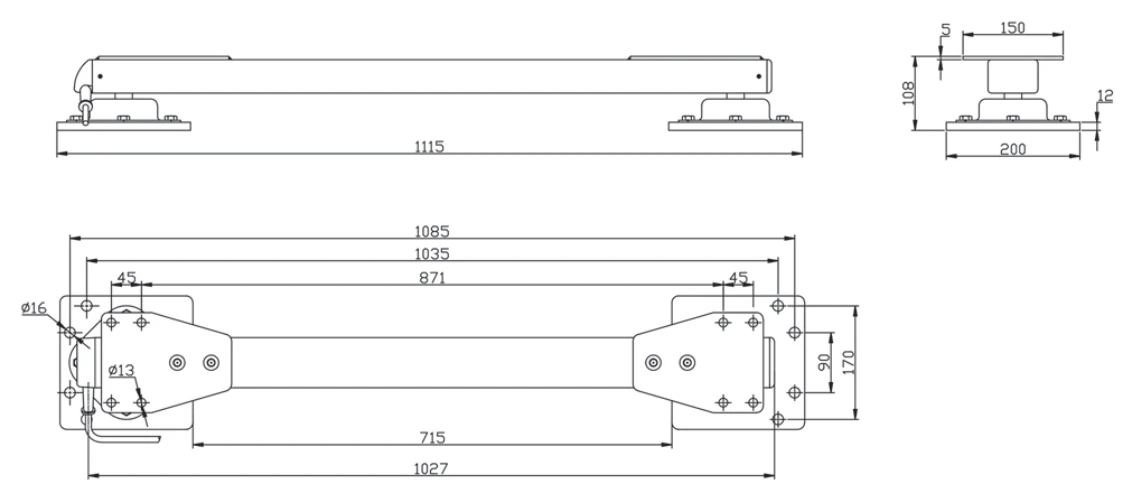

OUTLINE DIMENSIONS in mm
SPECIFICATIONS
| Specifications | |||||
| Models | TLB 5T | ||||
| Nominal Length | 1010mm | ||||
| Total Capacity | 5000kg | 11,000lb | ||||
| Resolution | 1kg | 2lb | ||||
| Platfom Fixing Centers | 871 mm | ||||
| Bar section width | 75mm | ||||
| Height | 108mm | ||||
| Weight(pair) | 41kg | ||||
| Cable Length | 5m | ||||
| Load Cell Type | Aluminum shear beam | ||||
| Accuracy | ±1%F.S.or 2d | ||||
| Operating Temperature | -20~+50℃ | ||||
| Selection Guide | Cattle platfom | Standard cattle crush | Hydraulic Squeeze Chute | ||||
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Tru-Test | HD5t |
Wiring Schematic Diagram
Universal plug connection
