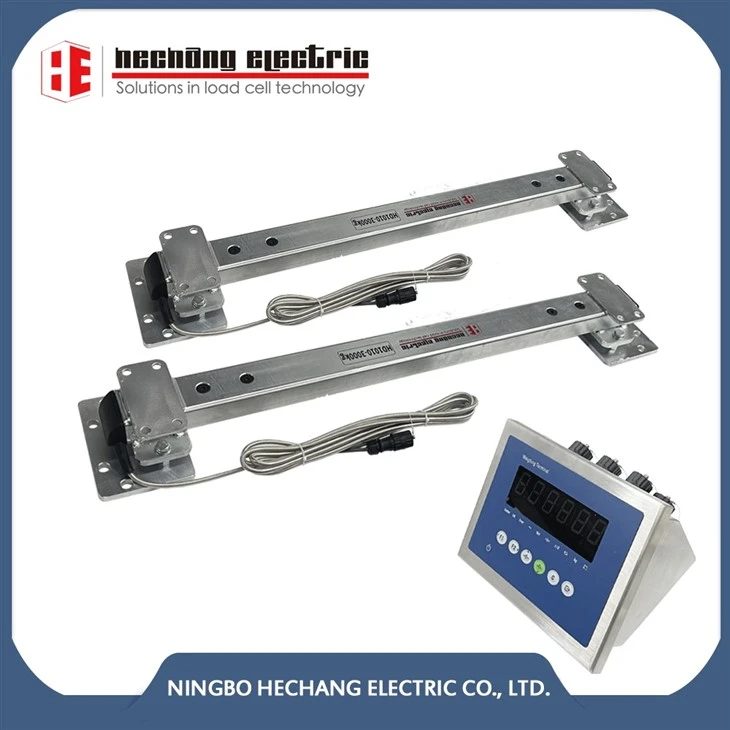

Heavy Duty Wireless Load Bar
Reference: HD1010
SPECIAL FEATURES:
1. Heavy capacity up to 3,000kg | 6600lb;
2. Designed for heavy duty permanent applications;
3. Design allows for severe loadings and high usage rates;
4. Unique foot design absorbs large side loads;
5. Galvanized steel housing ensures corrosion resistance;
6. Heavy duty armored load bar cabling for ultimate cable protection;
7. Compatible with Tru-Test's HD1010;
Description
DESCRIPTION
Hechang's HD1010 designed for permanent installations under manual squeeze chutes where extra capacity and durability is required. Must be anchored to a level concrete slab. Compatible with Tru-Test's HD1010.
SPECIAL FEATURES
- Heavy capacity up to 3,000kg | 6600lb;
- Designed for heavy duty permanent applications;
- Design allows for severe loadings and high usage rates;
- Unique foot design absorbs large side loads;
- Galvanized steel housing ensures corrosion resistance;
- Heavy duty armored load bar cabling for ultimate cable protection;
- Compatible with Tru-Test's HD1010;

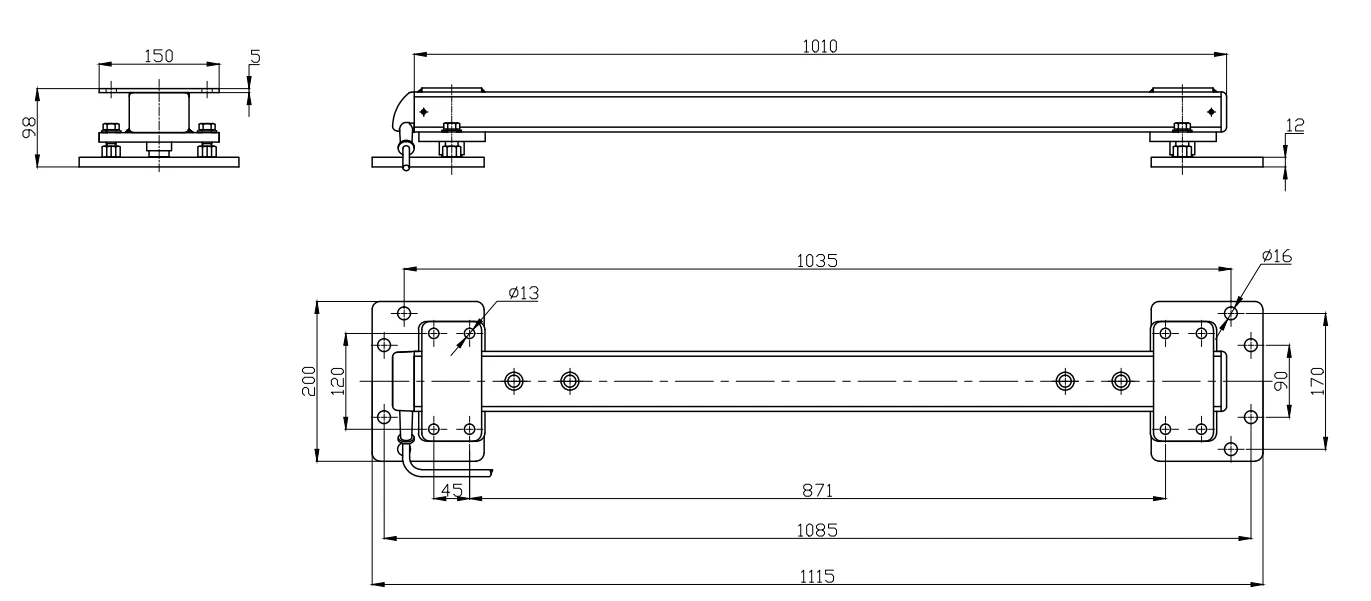

OUTLINE DIMENSIONS in mm
SPECIFICATIONS
| Specifications | |||||
| Models | HD1010 | ||||
| Nominal Length | 1000mm | ||||
| Total Capacity | 3000kg | ||||
| Resolution | 0.5kg | ||||
| Platfom Fixing Centers | 871 mm | ||||
| Bar section width | 75mm | ||||
| Height | 98mm | ||||
| Weight(pair) | 40kg | ||||
| Cable Length | 5m | ||||
| Cable Type | 4 wires PUR cable with double shield | ||||
| Load Cell Type | Aluminum shear beam | ||||
| Accuracy | ±1%F.S.or 2d | ||||
| Operating Temperature | -10~+40℃ | ||||
| Selection Guide | Under a platfom | Alleyway | Squeeze chute | Cattle crush | ||||
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Tru-Test | HD1010 |
Wiring Schematic Diagram
Universal plug connection
