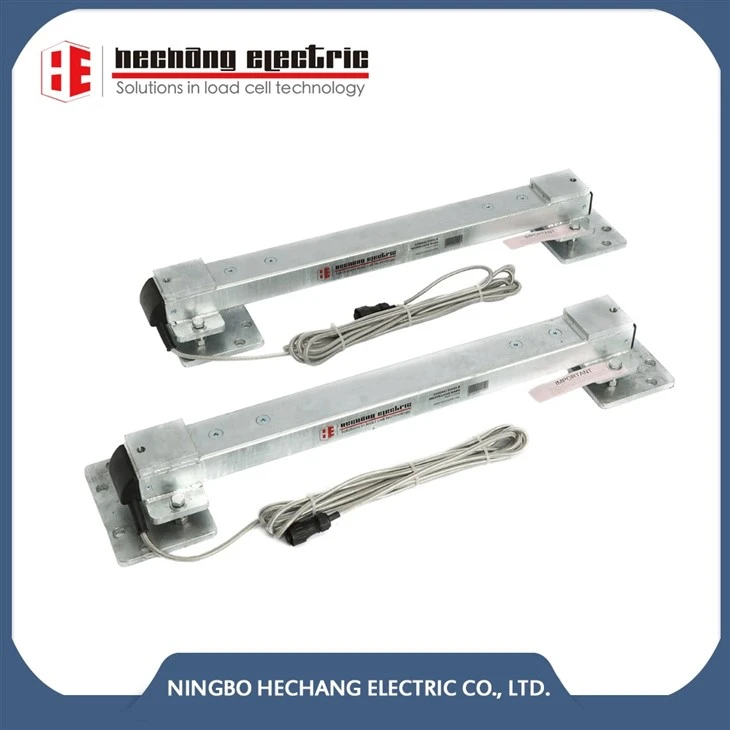

Livestock Load Bar HD800
Reference: HD800
SPECIAL FEATURES:
1. Heavy capacity up to 3,000kg | 6600lb;
2. Compatible with third- party weigh indicators;
3. Heavy-duty Armored cable minimize the risk of cable damage;
4. Galvanized coating for additional corrosion resistance;
5. Easy installation onto the crate and secure on level concrete;
6. Single-unit design;
7. Compatible with Tru-Test's HD800;
Description
DESCRIPTION
Hechang's HD800 load bars are renowned for their robust durability and abilityto perform in harsh environments. These bars are engineered to be tough, reliable, and straightforward to install under any livestockweighing crate or platform. The installation process is simple enough that it can be done without any assistance. With a capacity designed to handle a variety of systems, the HD800 ensures superior performance and the ideal weighing set-up for your animals.
SPECIAL FEATURES
- Heavy capacity up to 3,000kg | 6600lb;
- Compatible with third- party weigh indicators;
- Heavy-duty Armored cable minimize the risk of cable damage;
- Galvanized coating for additional corrosion resistance;
- Easy installation onto the crate and secure on level concrete;
- Single-unit design;
- Compatible with Tru-Test's HD800;

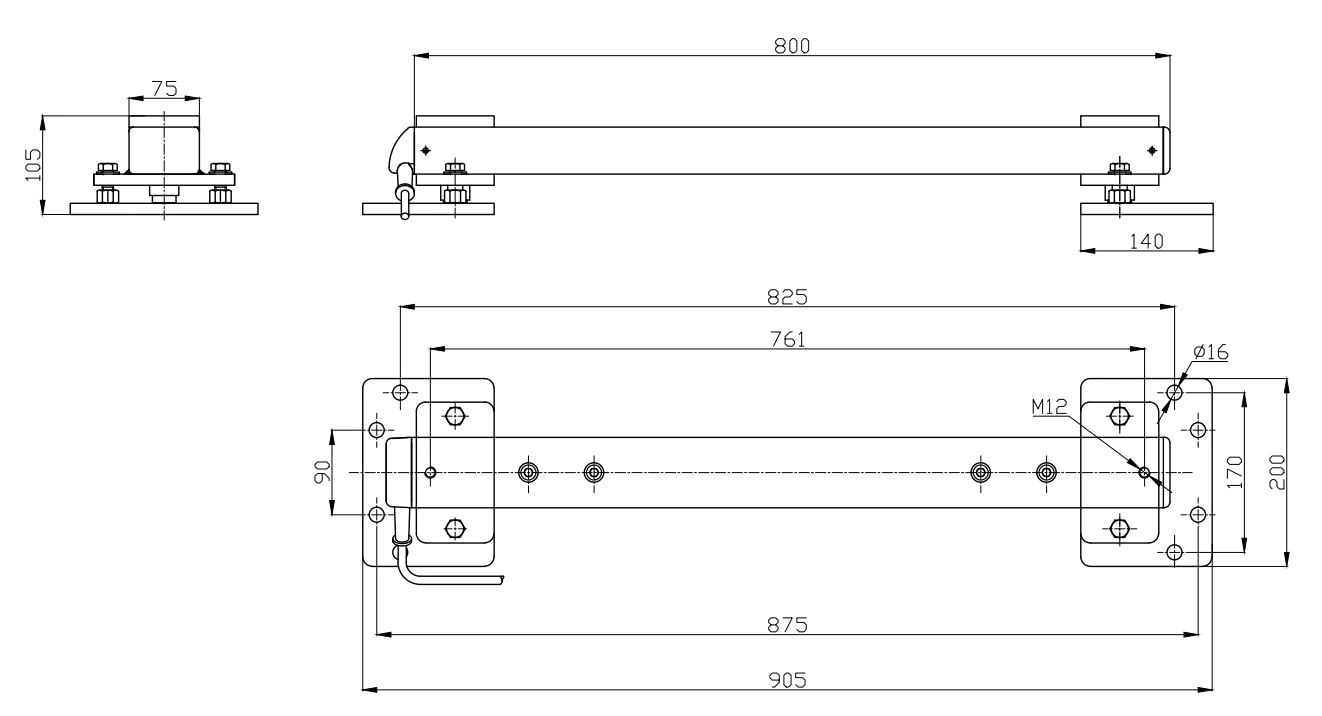

OUTLINE DIMENSIONS in mm

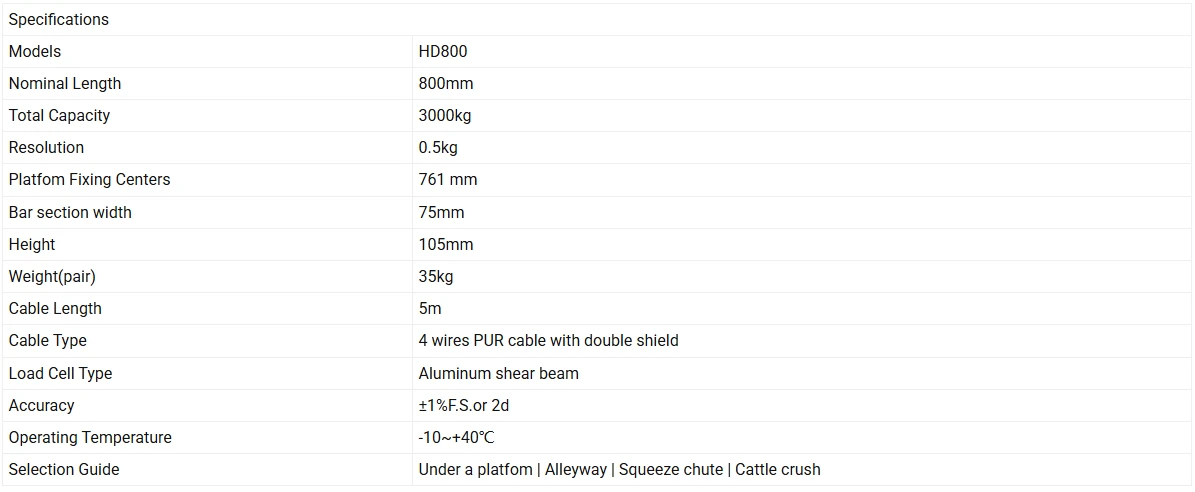

SPECIFICATIONS
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Tru-Test | HD800 |
Wiring Schematic Diagram
Universal plug connection
