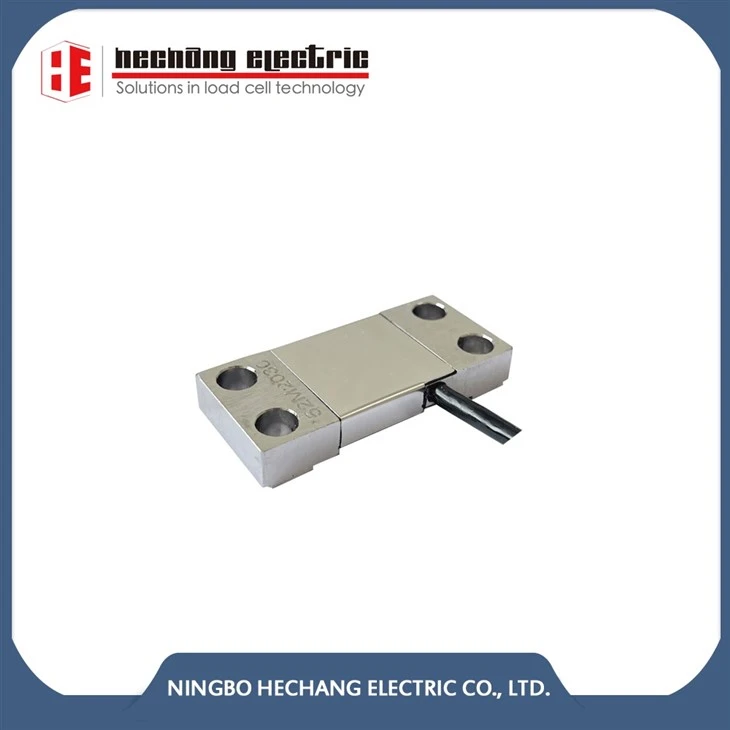

Strain Transducer

Reference: HT400
SPECIAL FEATURES:
1. Stainless steel construction;
2. Environmental protection: IP66;
3. Sensitivity: 1.0mV/V@400um/m;
4. Designed for on board weighing systems, Stress monitoring...
5. Interchangeable products Toledo Transducers T400;

Send Inquiry

Description

DESCRIPTION

The HT400 is a tough and reliable bonded strain gauge sensor. When it is properly affixed to an operating machine, it provides an electrical signal proportional to the load. It measures tension or compression. The sensor can be installed on weld pads or by drilling and tapping.
