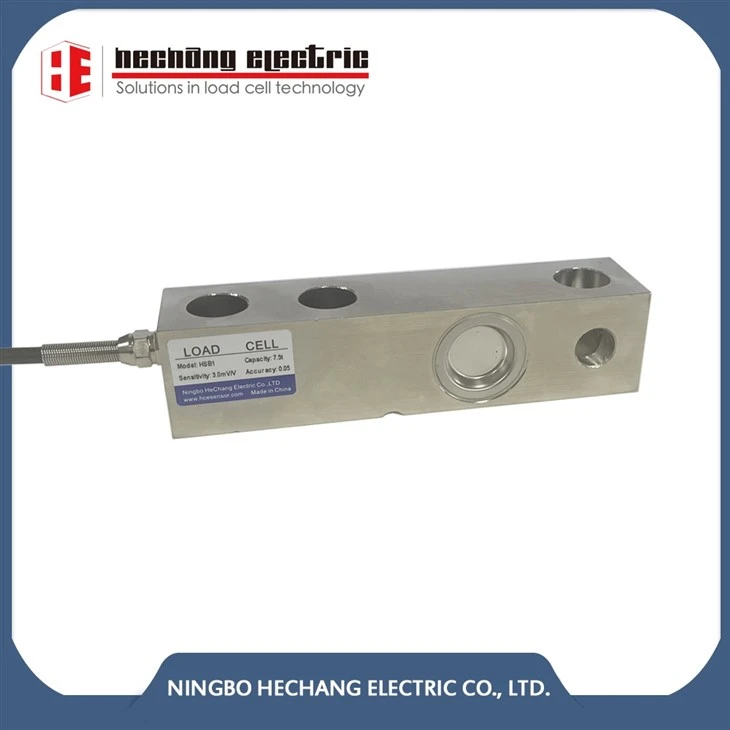

Alloy Steel Shear Beam Load Cell
Reference: HSB1
SPECIAL FEATURES:
1. Capacity 3t~7.5t;
2. Sensitivity: 3.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP68;
6. Optinal: painted or stainless steel;
7. Interchangeable refernace: PTM SB1, Dinamical Generale 140-0257;
Description
DESCRIPTION
The alloy steel shear beam load cell HSB1 is an innovation from Hechang Load Cells for agricultural machinery applications. The HSB1 features a compact design and is easy to install, as a replacement alternative for DG-140-0257, PTM-SB1 load cell and DigiDevice SEN-000020...
APPLICATIONS
● Silo/hopper/tank scales;
● Feed mixers;
● Spreaders;
● Other agriculture machinery;

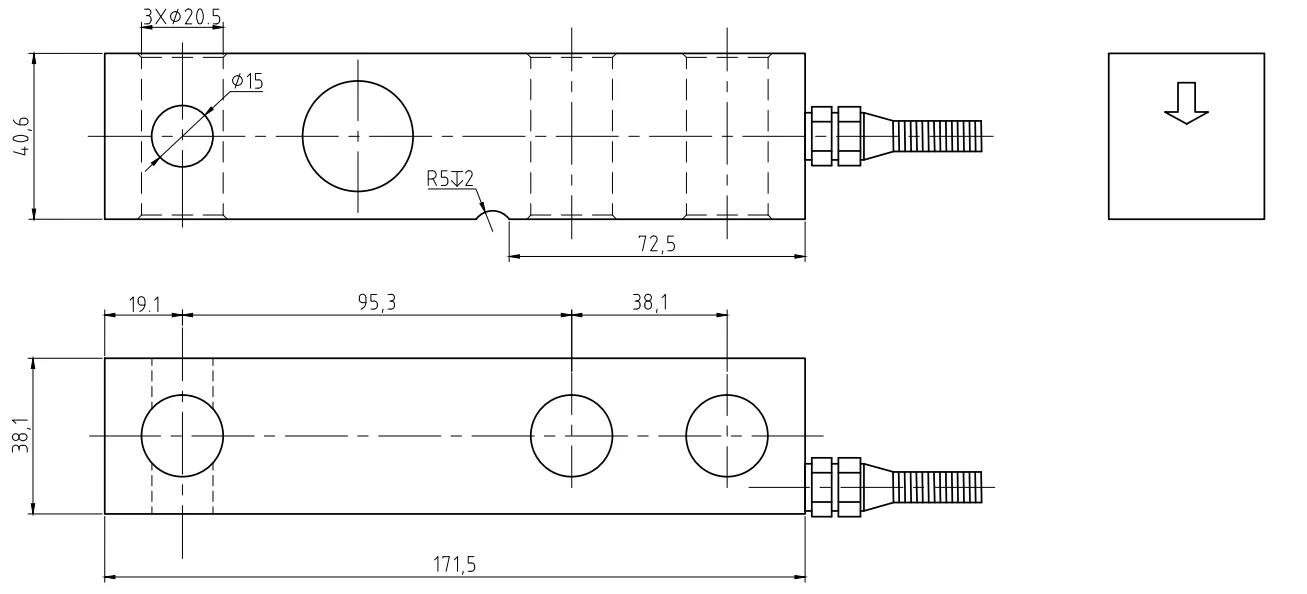

OUTLINE DIMENSIONS in mm

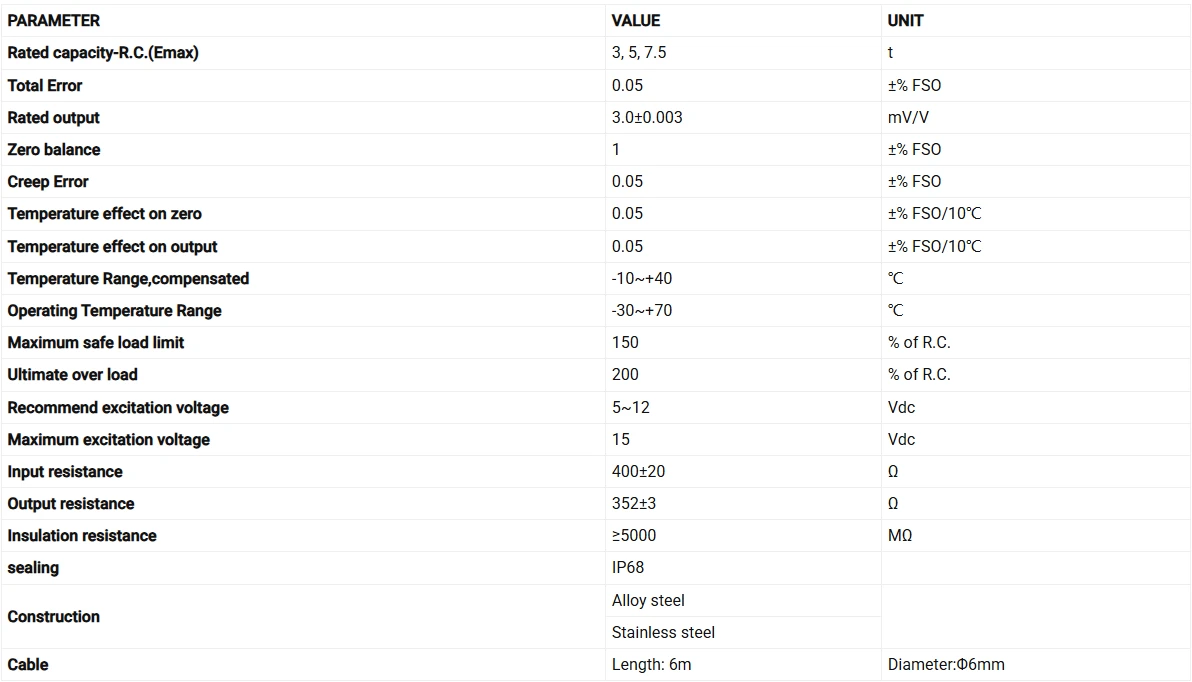

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
