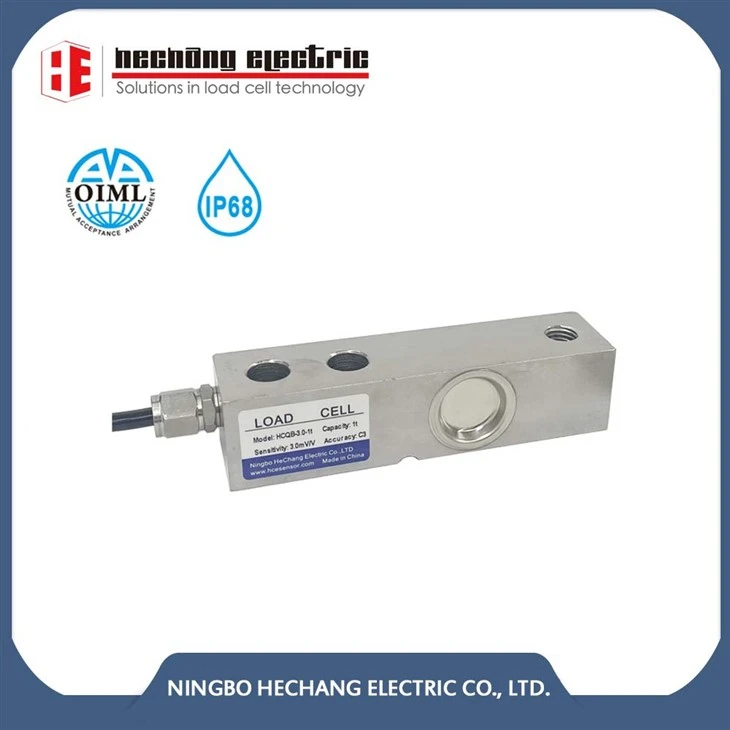

Spreader Scale Shear Beam Load Cell
Reference: HCQB
SPECIAL FEATURES:
1. Capacity 500kg~2500kg;
2. Sensitivity: 3.0mV/V;
3. Low profile,high accuracy;
4. Stainless steel or alloy steel construction;
5. Environmental protection: IP68;
Description
DESCRIPTION
Model HCQB is a low profile shear beam load cell designed for agriculture weighing applications. It has a high immumity to shock or side loading, and is approved to OIML standards. Nickel plating and full environmental sealing assure long-term reliability. A stainless stell option is aviliavle for use in harsh or corrosive environments.
SPECIAL FEATURES
- Capacity 500kg~2500kg;
- Sensitivity: 2.0 or 3.0mV/V;
- Low profile,high accuracy;
- Alloy steel construction;
- Environmental protection: IP68;
- Mainly used for spreader, feed mixer, tank and silo...

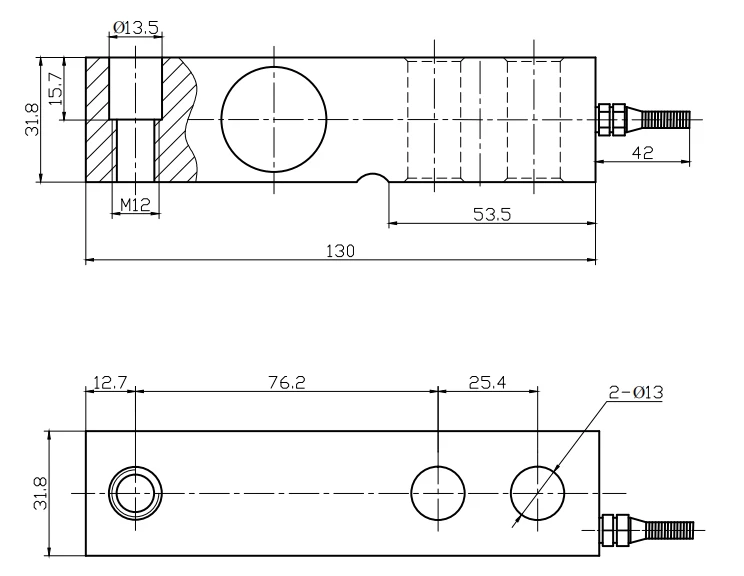

OUTLINE DIMENSIONS in mm

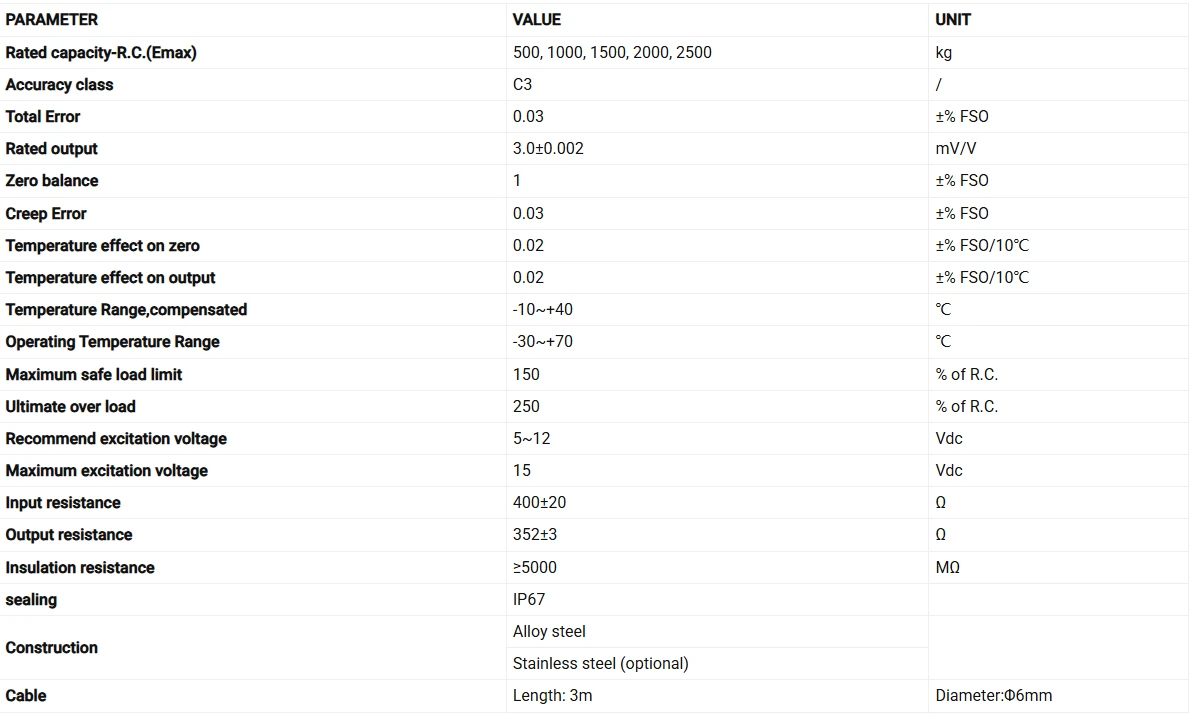

SPECIFICATIONS
Wiring Schematic Diagram
