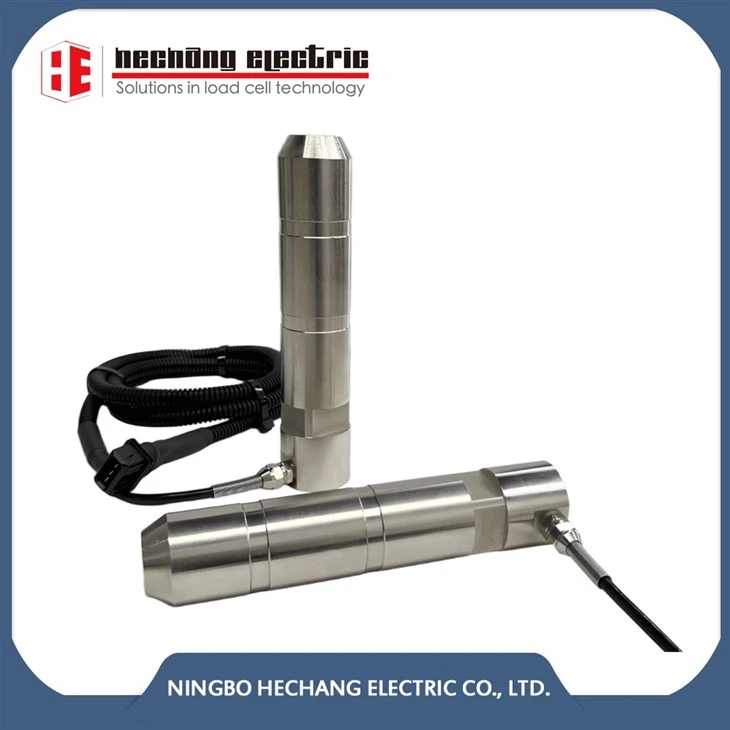

Draft Sensor
Reference: HDS
SPECIAL FEATURES:
1. Capacity 90KN;
2. 3-pin connector;
3. Stainless steel construction;
4. Environmental protection: IP68;
5. Input Voltage 5-12V, Output 0.25~0.75Usp
Description
DESCRIPTION
A draft sensor in a tractor is a component of the draft control system, which automatically manages the depth of ground-engaging attachments like plows and harrows. By monitoring the soil resistance (force) exerted on the attachment, the sensor allows the tractor's hydraulic system to adjust the hitch position in real-time, ensuring consistent tillage depth and reducing strain on the equipment.
SPECIAL FEATURES
- Draft control system
OUTLINE DIMENSIONS in mm
To view dimensions and specifications, please contact us or log in!
SPECIFICATIONS
|
PARAMETER |
VALUE |
UNIT |
|
Rated capacity-R.C.(Emax) |
90 |
KN |
|
Accuracy class |
/ |
/ |
|
Total Error |
0.5 |
±% FSO |
|
Rated output |
0.25~0.75 |
Usp |
|
Temperature Range,compensated |
-10~+40 |
℃ |
|
Operating Temperature Range |
-30~+70 |
℃ |
|
Input excitation voltage |
5~12 |
Vdc |
|
Insulation resistance |
≥5000 |
MΩ |
|
sealing |
IP67 |
|
|
Construction |
|
|
|
Stainless steel |
||
|
Cable |
Length: 1m |
Diameter:Φ6mm |
Wiring Schematic Diagram
AMP 3-pin connector
