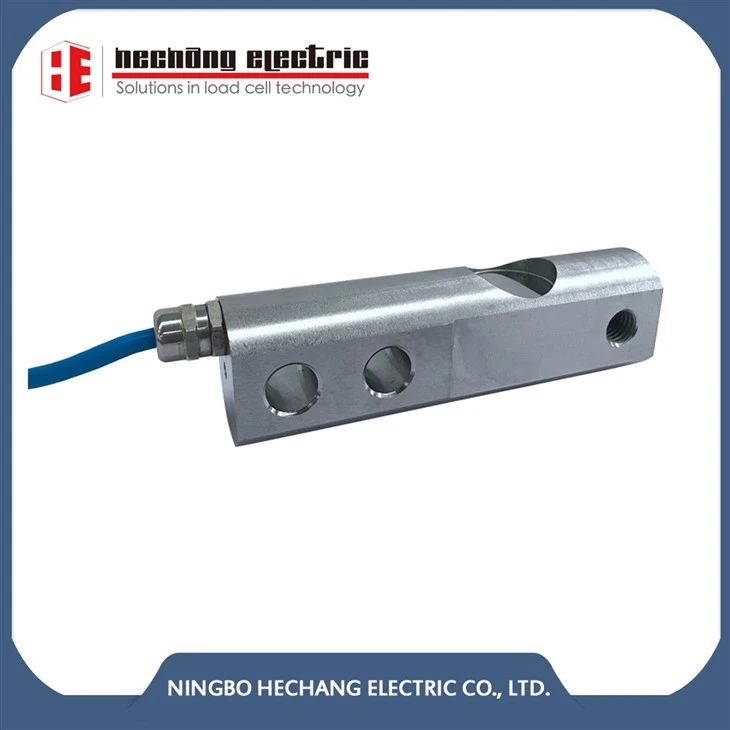

Stainless Steel Shear Beam Load Cell
Reference: HSB2
SPECIAL FEATURES:
1. Capacity 0.5t~3t;
2. Sensitivity: 2.0mV/V;
3. Low profile,high accuracy;
4. Stainless steel construction;
5. IP68 protection;
6. Interchangeable refernace:PTM SB2;
Description
DESCRIPTION
The HSB2 is a low‑profile, stainless steel shear beam load cell designed for high‑accuracy platform scales, pallet scales, and process weighing applications. Its stainless steel construction, combined with full environmental sealing, provides IP68 protection, ensuring long‑term reliability even in harsh or corrosive environments. The compact, low‑profile design allows for easy integration into space‑constrained weighing systems while delivering consistent, precise measurements under demanding conditions.It is compatible with PTM SB2.
APPLICATIONS
● Pallet truck weighing;
● Tank/silo weighing;

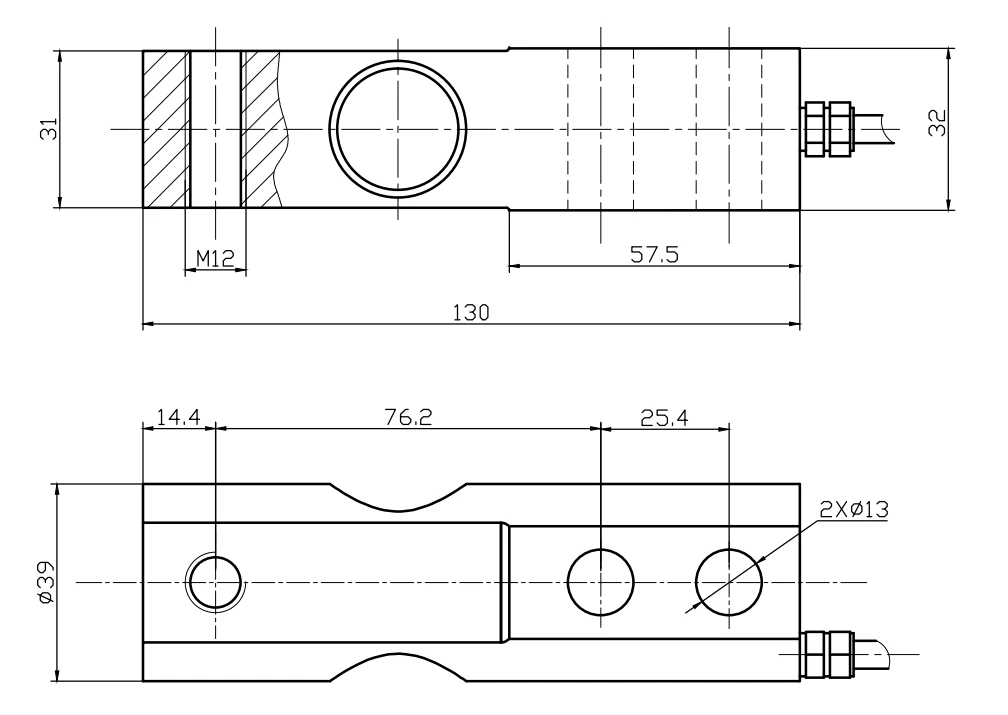

OUTLINE DIMENSIONS in mm

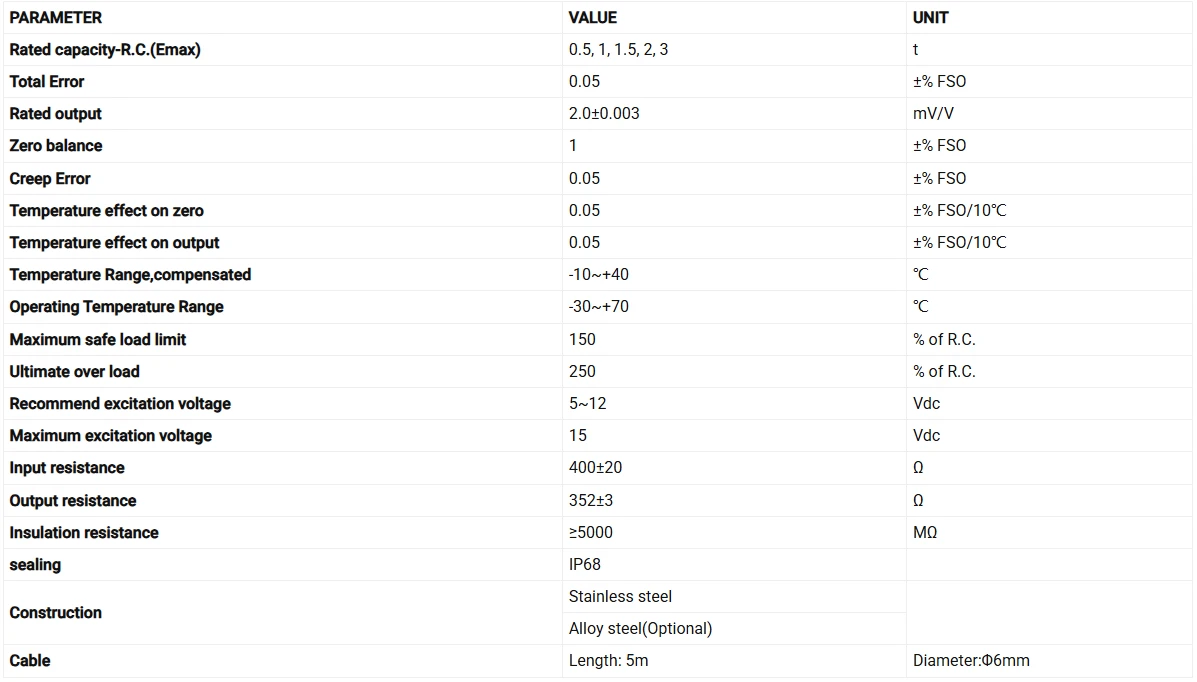

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
