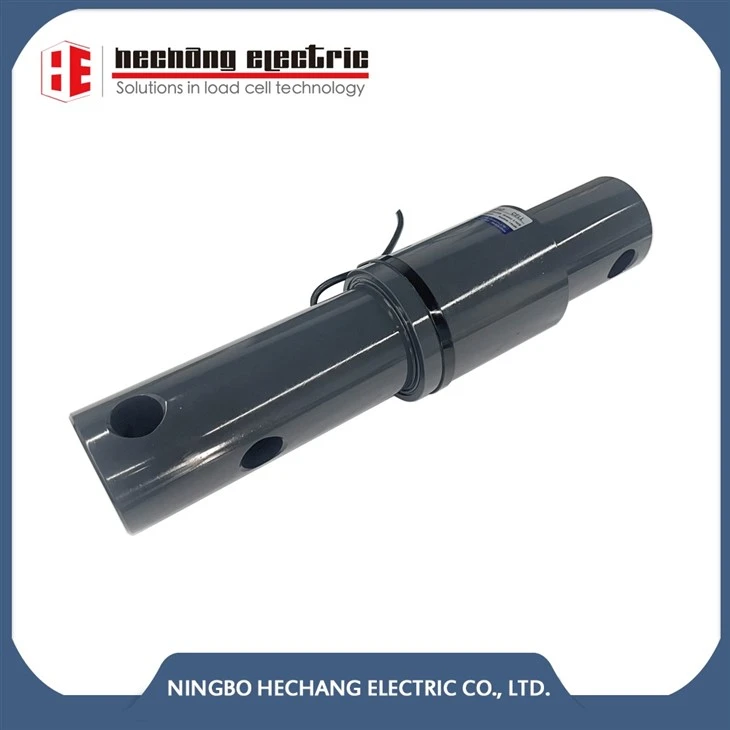

Round Bar Load Cell
Reference: WBB7340
SPECIAL FEATURES:
1. Static Capacity 30klb, Mobile Capacity 20klb;
2. Environmental protection: IP67;
3. Electroleess nickel-plated alloy tool steel;
4. Designed for TMR, Feed Wagon, Grain Cart...
5. Supply customized services;
6. Optional: Painted, ECP connector;
7. Interchangeable products DG969-0430, DG969-0431;
Description
DESCRIPTION
A round bar load cell, often called a load bar, is a cylindrical, durable, and typically alloy steel sensor used to measure force and weight in heavy-duty applications like agricultural mixers, feeders, and grain carts. WBB7340 load cell uses strain gauge technology to convert compressive or shear forces into precise electrical signals for accurate weighing...
APPLICATIONS
- Designed for Mixer and Feeder;
- Optional: Painted, ECP connector;
- Interchangeable products DG969-0430, DG969-0431;
OUTLINE DIMENSIONS AND SPECIFICATIONS
To view dimensions and specifications, please contact us or log in!
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Dinamica Generale | 969-0430 |
| Dinamica Generale | 969-0431 |
Wiring Schematic Diagram
