Mixer Load Cell
Reference: WBB63.5
SPECIAL FEATURES:
1. Static Capacity 8.55t, Mobile Capacity 5.7t;
2. Environmental protection: IP67;
3. Electroleess nickel-plated alloy tool steel;
4. Designed for TMR, Feed Wagon, Grain Cart...
5. Supply customized services;
6. Optional: Painted, ECP connector;
7. Interchangeable products DG969-0134, Digi-Star 400242
Description
DESCRIPTION

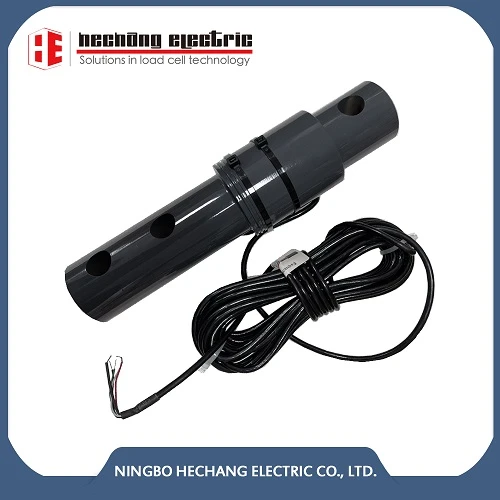

The load bar model WBB63.5, diameter 63.5mm, length 387.4mm. WBB63.5 is a high precision load cell for mixers and feeder with 8550kg static capacity or 5700kg mobile capacity. With its nickel-plated alloy tool steel body and sealing protection, it provides IP67 protection. It can fully interchangeable with Dinamica Generale 969-0134, Digi-Star 400242...
SPECIAL FEATURES
- Static Capacity: 8.55t, Mobile Capacity 5.7t;
- Waterproof Class: IP67;
- Designed for Mixer and Feeder;
- Electroleess nickel-plated alloy tool steel;
- Optional: Painted, ECP connector;
- Interchangeable products DG969-0134, Topcon Digi-Star 400242;
OUTLINE DIMENSIONS AND SPECIFICATIONS
To view dimensions and specifications, please contact us or log in!
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Dinamica Generale | 969-0134 |
| Topcon Digi-Star | 400242 |
Wiring Schematic Diagram
