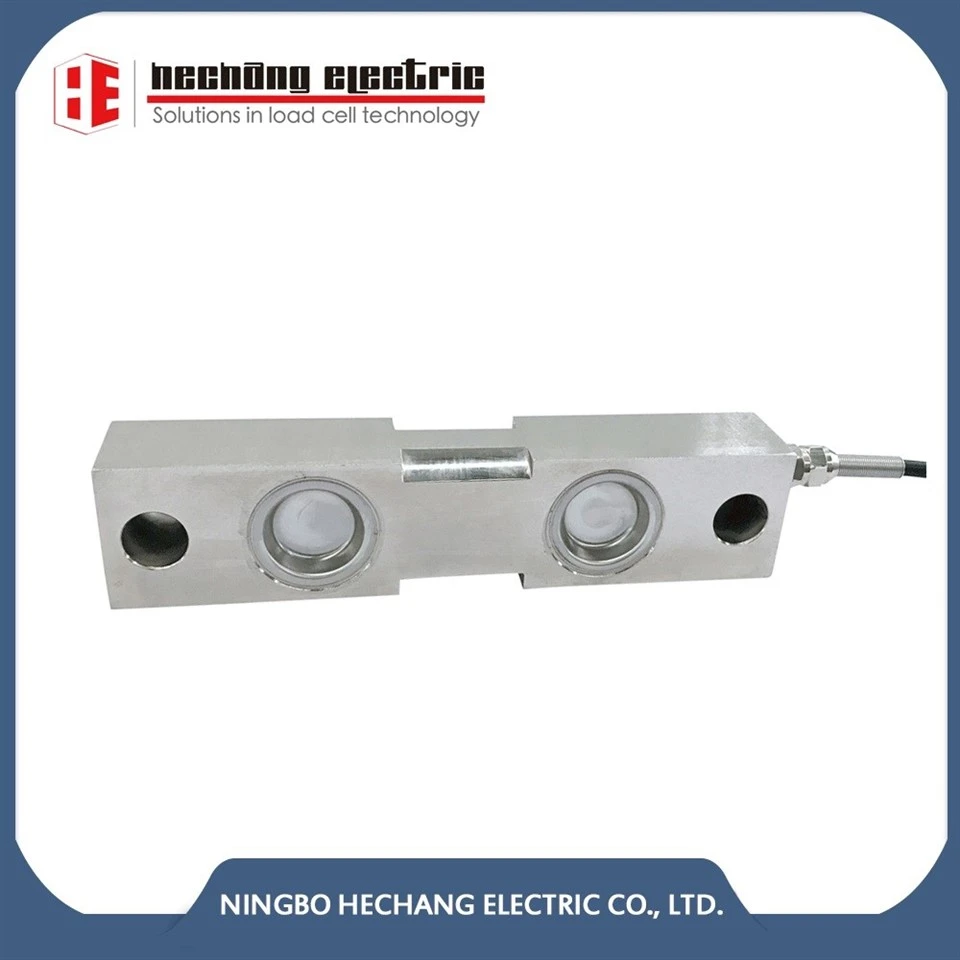

Welded, Stainless Steel Load Cell 65016
Reference: DSF-SS
SPECIAL FEATURES:
1. Rated capacities of 1000 to 75,000 pounds;
2. Stainless steel, welded seal construction;
3. Insensitive to side loads and bending moments;
4. High output—well suited to high deadload/low liveload applications;
5. Load cells have matched outputs for multi-cell systems
Description
DESCRIPTION

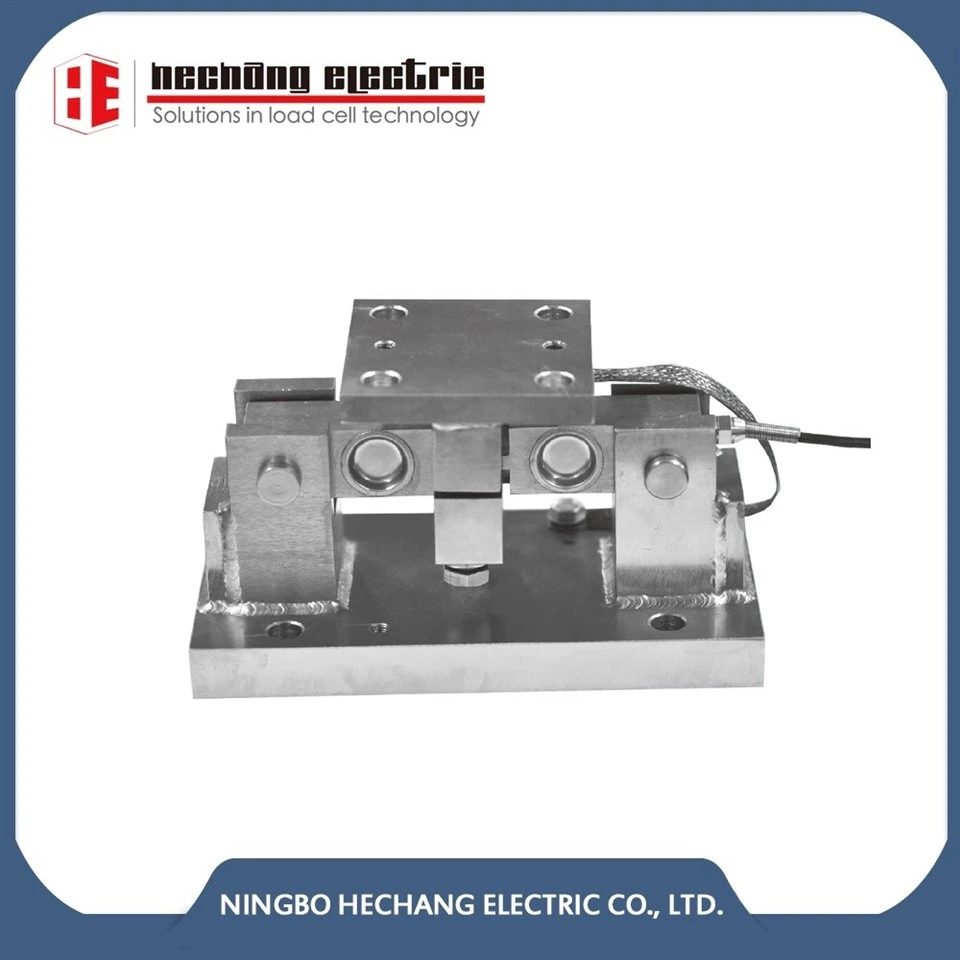

The DSF-SS is designed for center‑mounting with a double‑linked loading configuration. This unique design allows free movement in all horizontal directions, virtually eliminating any binding or friction points that could affect measurement accuracy. The double shear beam geometry delivers outstanding performance for high‑capacity loading, ensuring stable and repeatable readings even under heavy loads.
Constructed entirely from stainless steel, the DSF‑SS is engineered to operate reliably in extremely harsh environments, including those found in the chemical and food processing industries. Its corrosion‑resistant construction and robust sealing make it well suited for applications involving frequent washdown, exposure to chemicals, or high humidity.
APPLICATIONS
- Hostile environments:
- Tank/silo scales
- Batching, blending and mixing systems
- Level and inventory monitoring

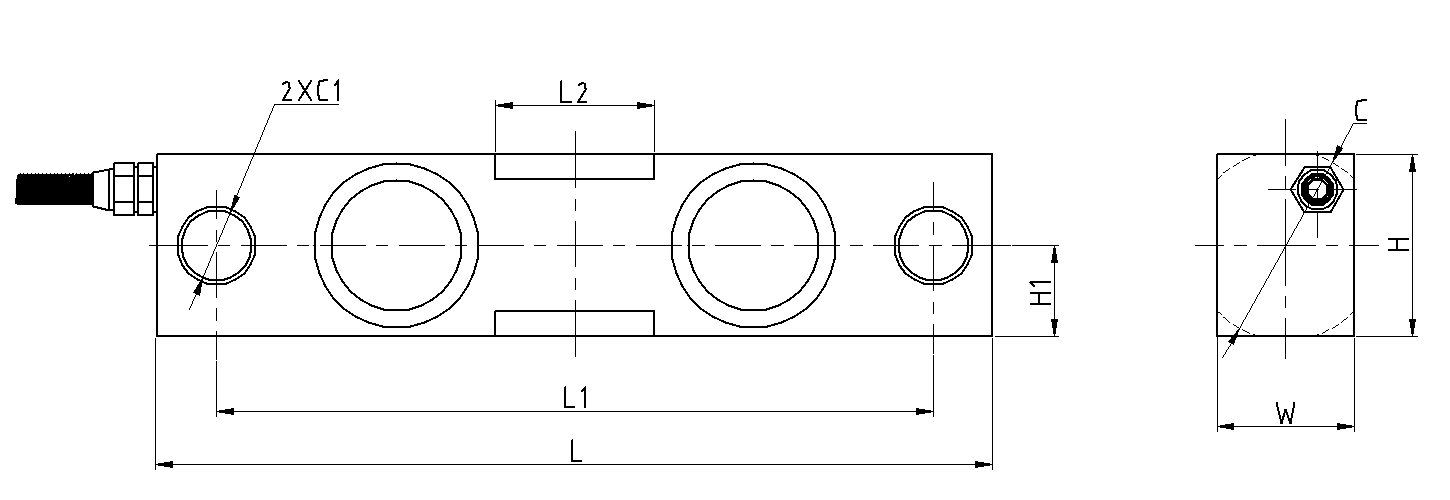

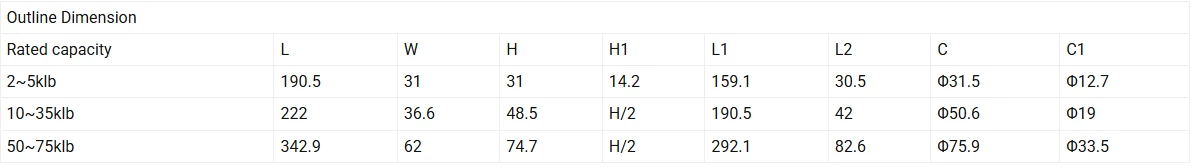

OUTLINE DIMENSIONS in mm

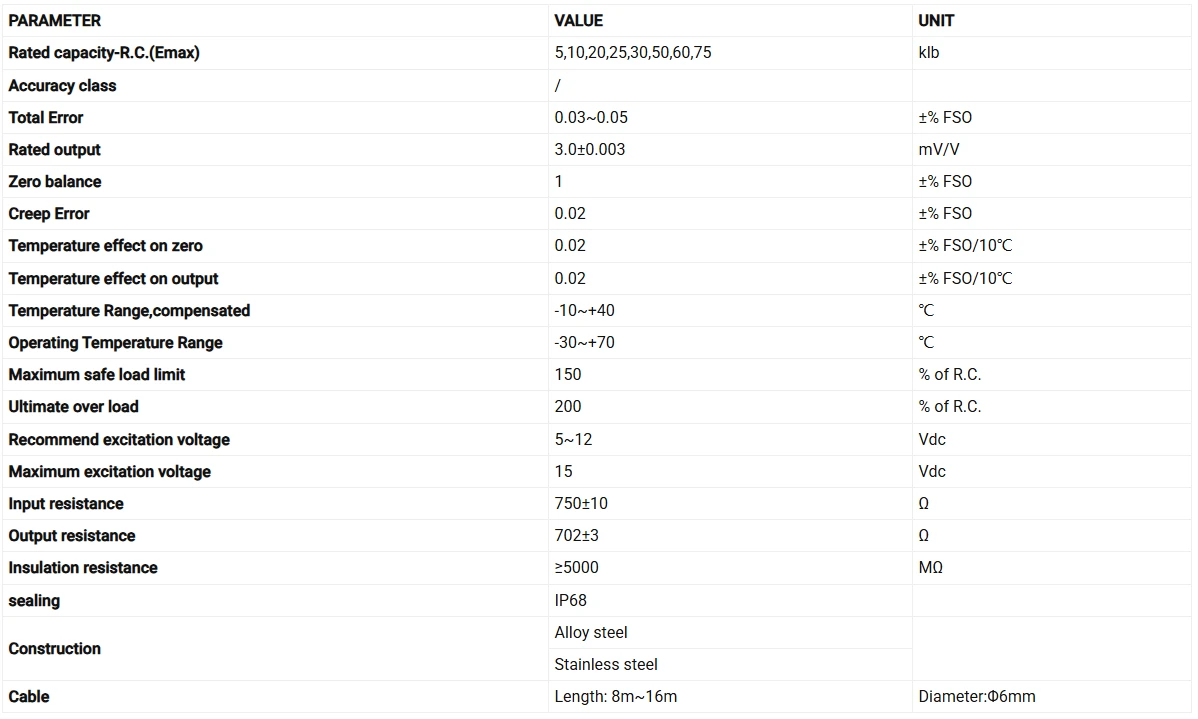

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
