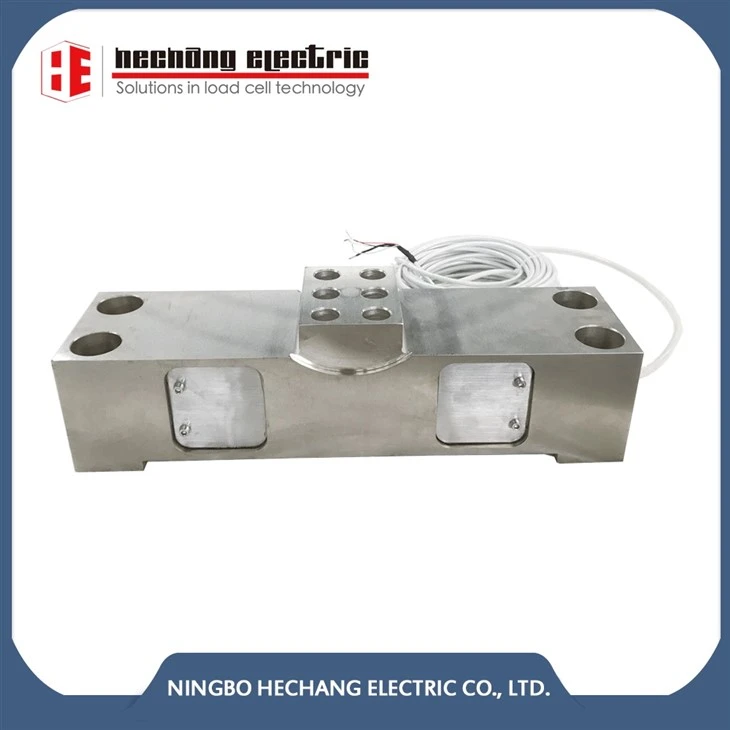

High Temperature Weighbeam DWB
Reference: HC-DWB
SPECIAL FEATURES:
1. Capacity 50t~200t;
2. Alloy steel construction;
3. Service temperature up to 150°C;
4. Integrated sensor for temperature monitoring;
5. Separate mounting of connecting cable through connector;
Description
DESCRIPTION
The HC-DWB is a high‑temperature, heavy‑duty double shear beam load cell specifically engineered for harsh industrial environments, including steel mills, ladle turrets, and scrap bucket weighing applications. Its robust construction and ability to withstand extreme heat, shock, and side loads make it an ideal choice for primary metals processing. It's compatible with Schneck DWB.
APPLICATIONS
- Ladle ferries
- Ladle turret weighing
- Scrap bucket, roller table weighing and tundish weighing

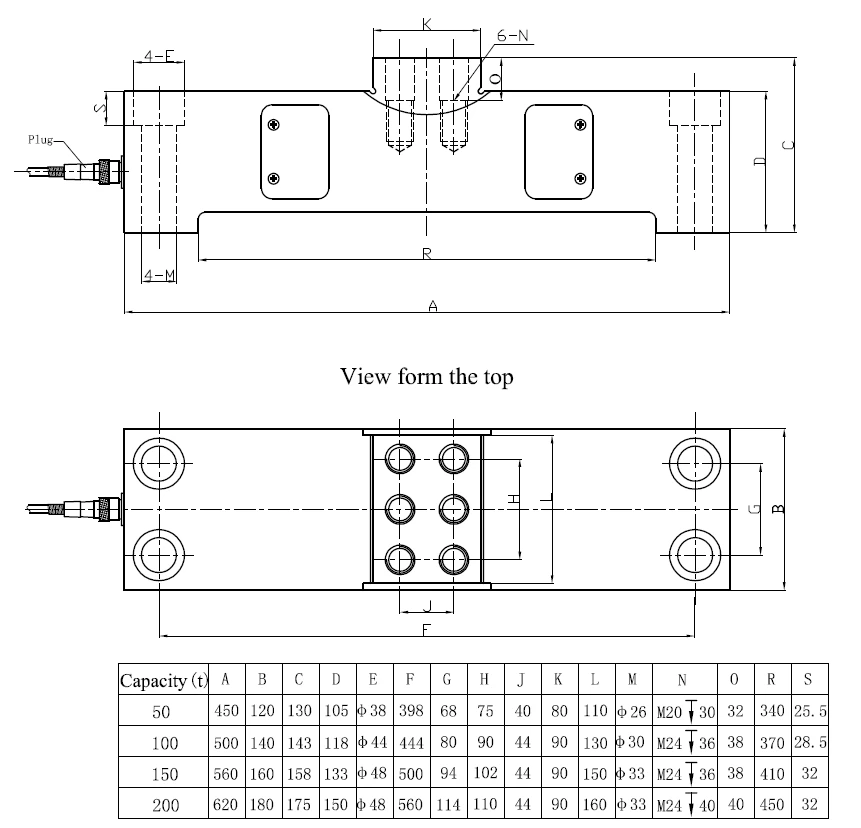

OUTLINE DIMENSIONS in mm

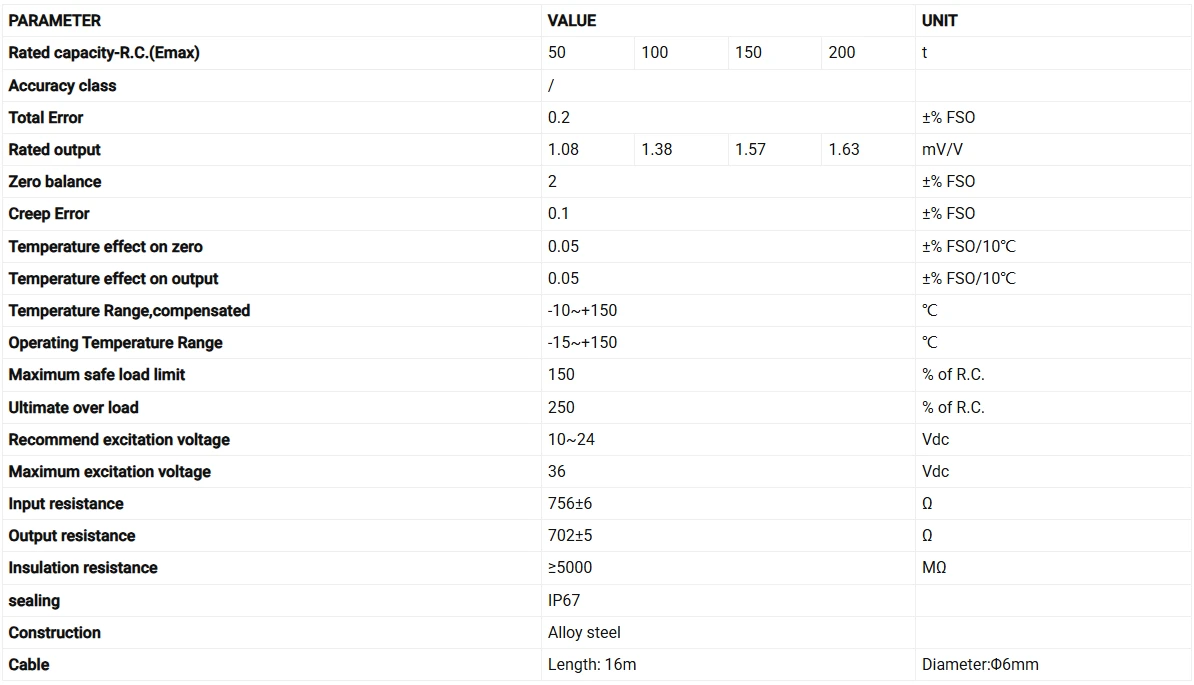

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
