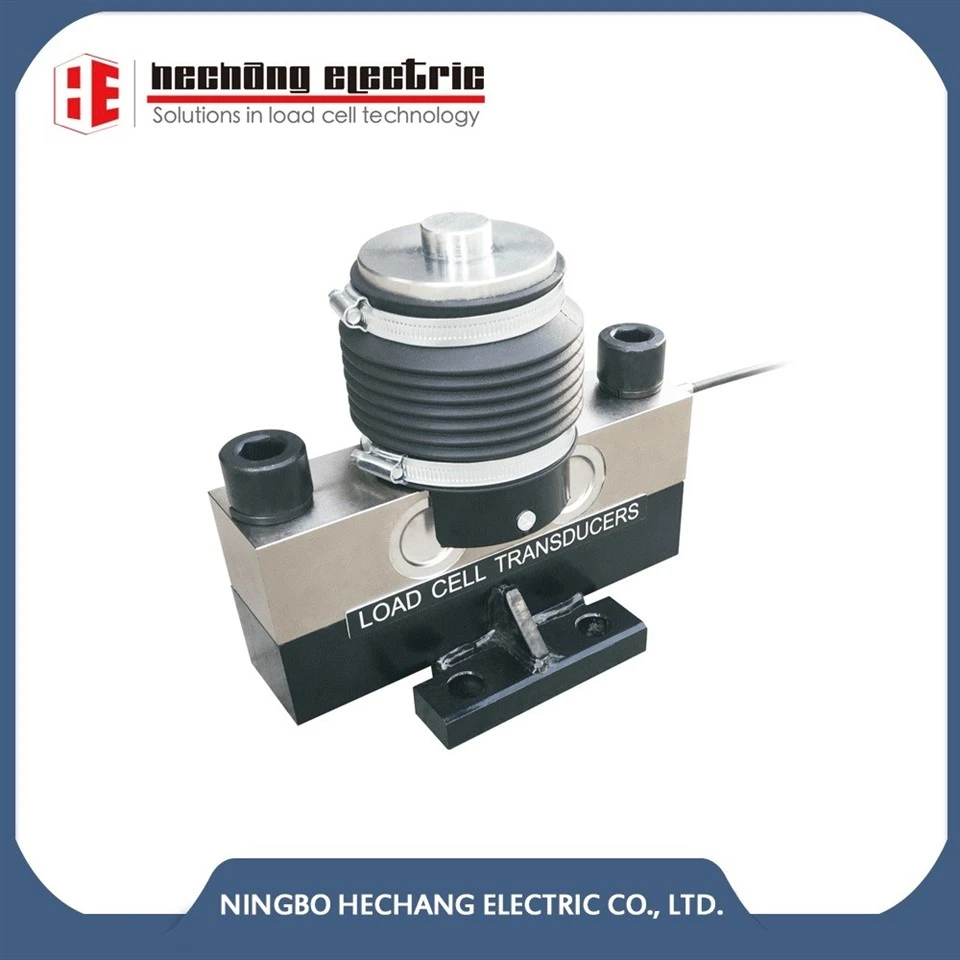

Weighbridge Truck Scale Load Cell
Reference: DS
SPECIAL FEATURES:
1. Capacity 5t~50t;
2. Sensitivity:2.0mV/V;
3. High side load tolerance;
4. Hermetically sealed, waterproof IP68;
5. Electroleess nickel-plated alloy tool steel;
6. Interchangeable products Keli QS, Zemic HM9B;
Description
DESCRIPTION
DS is designed for truck and rail scales in high capacities with low profile. The design of loading through a ball is insensitive to side load. DS is constructed of alloy steel and Hermetically-Sealed is constructed to IP68 providing excellent protection against corrosive and wash-down environments.
APPLICATIONS
● Truck/rail scales
● Silo/hopper/tank weighing

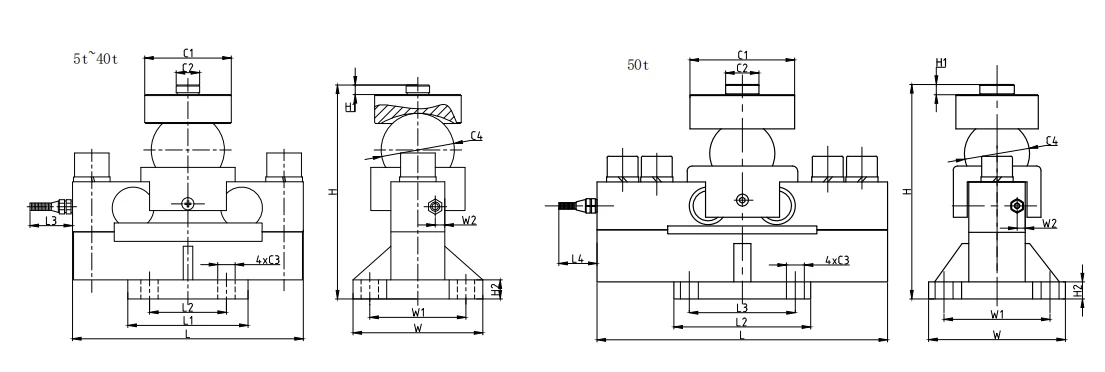

OUTLINE DIMENSIONS in mm
|
Outline Dimension |
||||||||||||||
|
Rated capacity(t) |
L |
L1 |
L2 |
L3 |
W |
W1 |
W2 |
H |
H1 |
H2 |
C1 |
C2 |
C3 |
C4 |
|
5 |
224 |
125 |
80 |
45 |
135 |
100 |
10 |
168.8 |
11 |
20 |
Φ68 |
Φ30 |
Φ18 |
Φ50.8 |
|
10,15,20,25,30 |
240 |
125 |
80 |
45 |
135 |
100 |
10 |
223.5 |
11 |
20 |
Φ85~88 |
Φ30 |
Φ18 |
Φ75 |
|
40 |
240 |
125 |
80 |
45 |
135 |
100 |
10 |
239.5 |
11 |
20 |
Φ88 |
Φ30 |
Φ18 |
Φ75 |
|
50 |
340 |
160 |
124 |
45 |
160 |
124 |
10 |
260 |
11 |
20 |
Φ98 |
Φ40 |
Φ22 |
Φ75 |

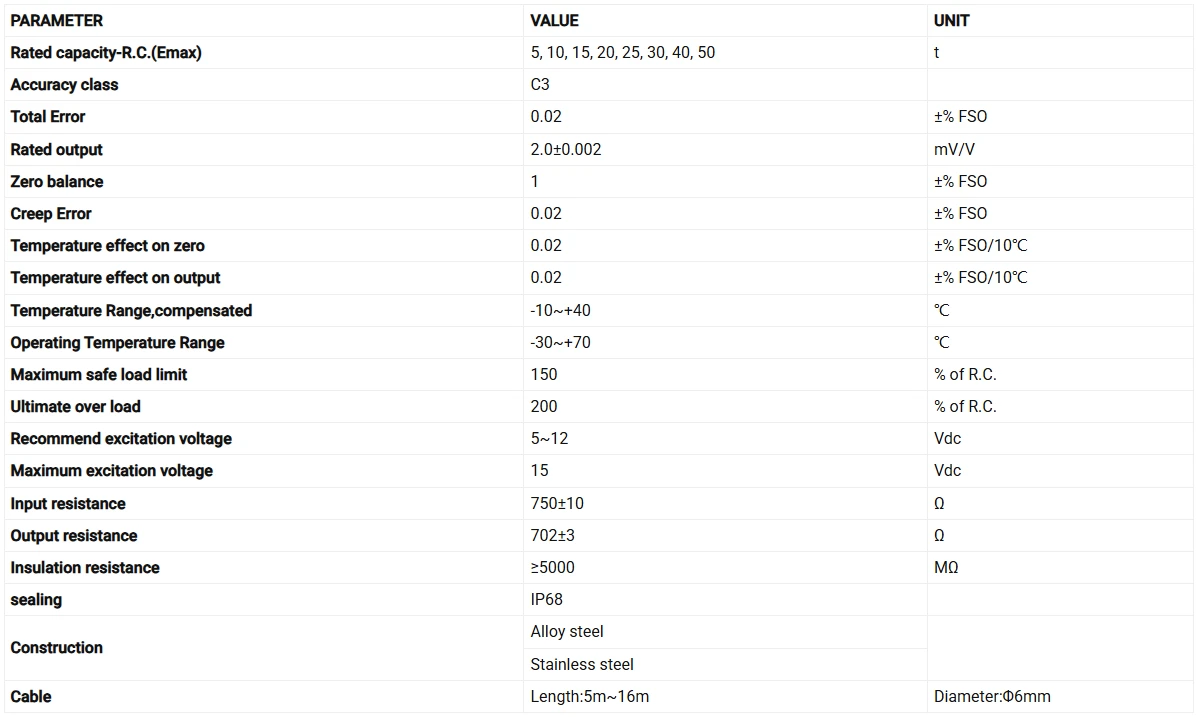

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
Hot Tags: weighbridge truck scale load cell, China weighbridge truck scale load cell manufacturers, suppliers, factory
Send Inquiry
