65040 Load Cell
Reference: HC-DESC
SPECIAL FEATURES:
1. Rated capacities of 25,000 to 75,000 lbs (higher capacities also available);
2. Welded seal, stainless steel construction;
3. Center supported, external pivot loading;
4. Interchangeable products Vishay 65040
Description
DESCRIPTION

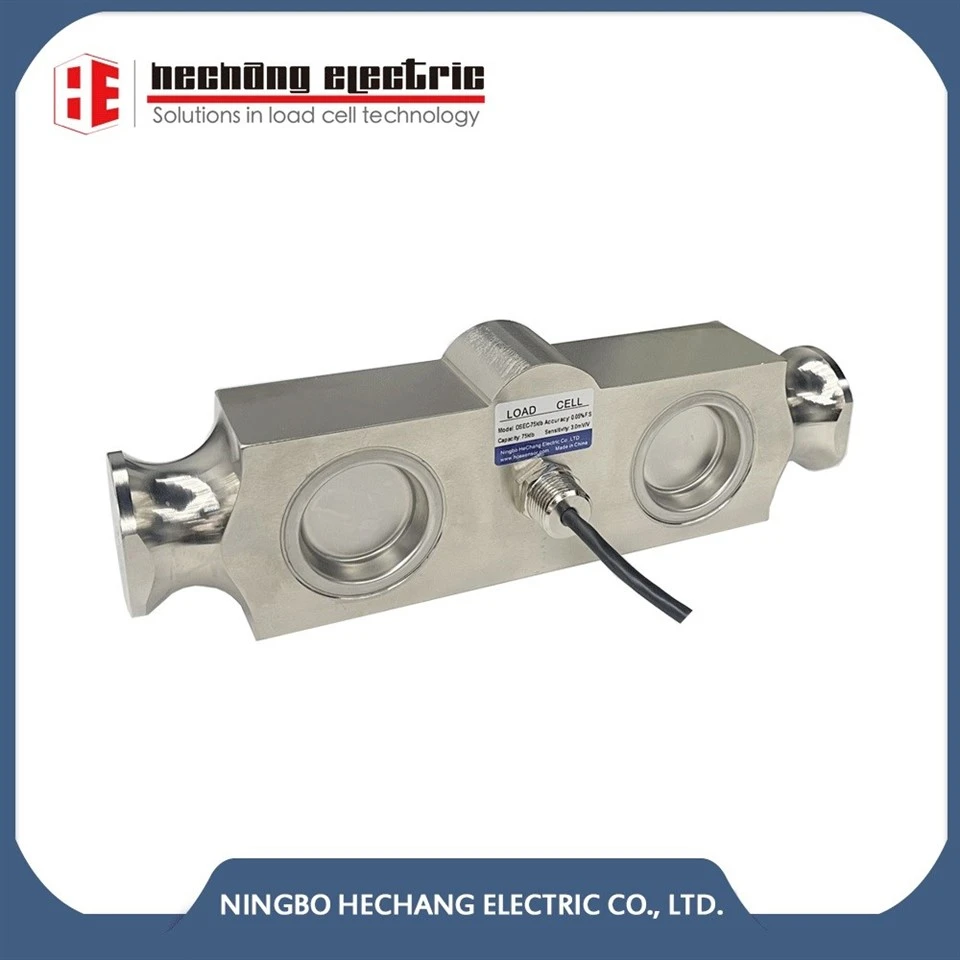

The HC-DESC is a mid to high capacity, nickel-plated alloy steel, double-ended shear beam load cell. The load cell is designed for use in vehicle and rail scales and is available in capacities ranging from 25k to 125k lbs. It is compatible with the Vishay 65040. Features include a welded seal, stainless steel construction, center-supported design, and external pivot loading.
APPLICATIONS
● Vehicle scales
● Railroad track scales

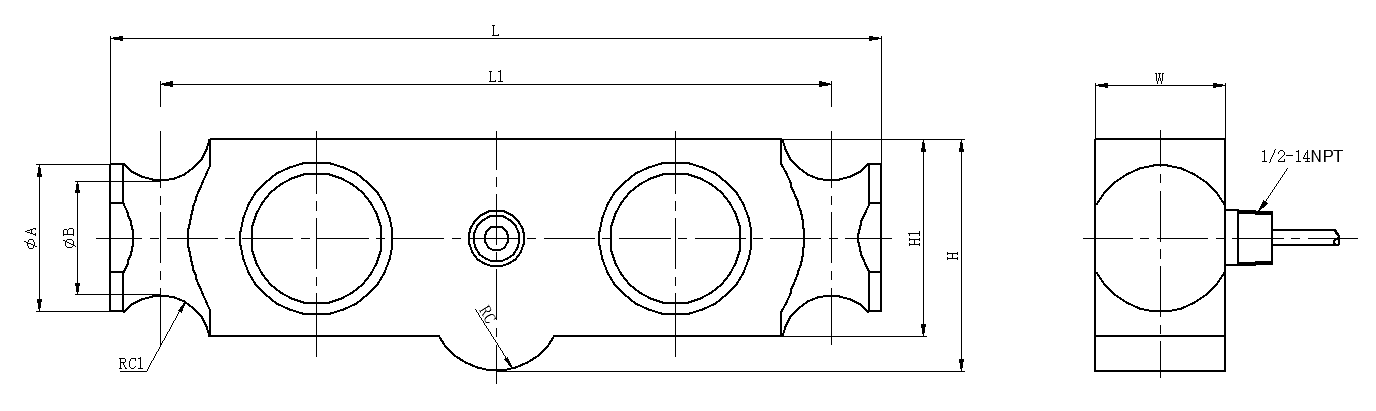

OUTLINE DIMENSIONS in mm
|
Outline Dimension |
|||||||||
|
Rated capacity(klb) |
L |
L1 |
W |
H |
H1 |
A |
B |
C |
C1 |
|
25~40 |
209.6 |
184 |
49.3 |
75.5 |
62 |
50.8 |
41.4 |
12.7 |
12.7 |
|
50~75 |
292.1 |
254 |
49.3 |
88.15 |
74.7 |
55.9 |
43.2 |
25.4 |
19.05 |
|
100~125 |
368.3 |
317.5 |
73.7 |
118.9 |
98 |
81.3 |
62 |
38.1 |
25.4 |

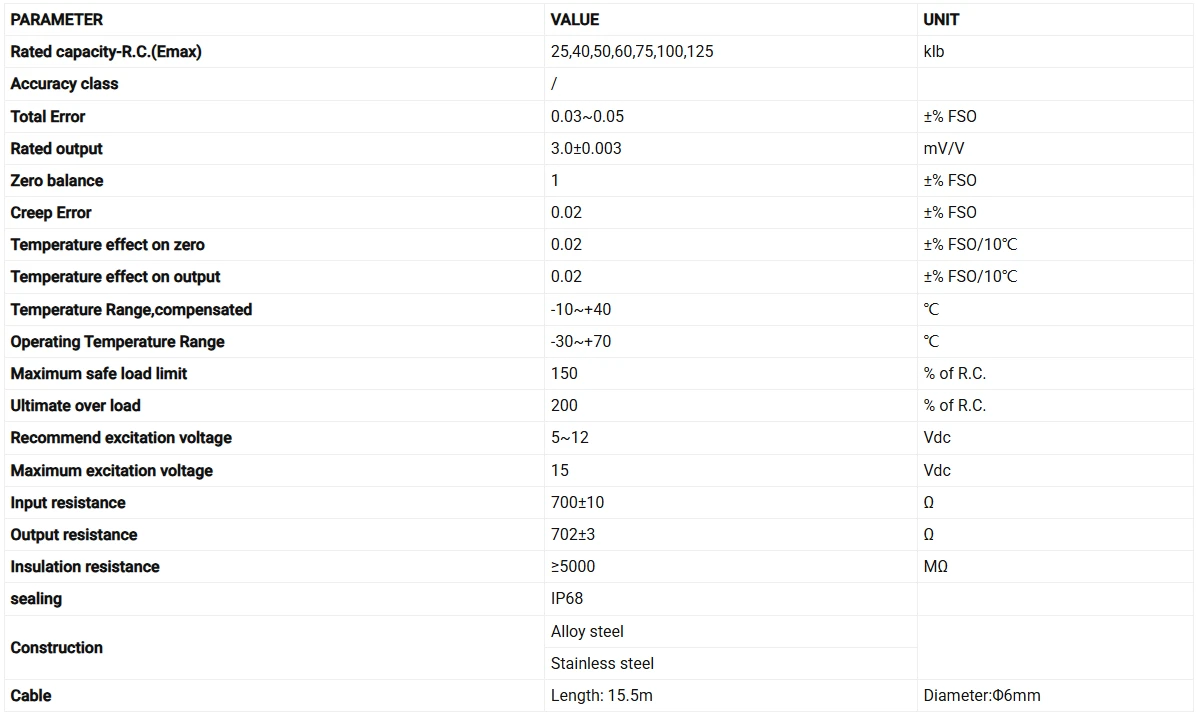

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
