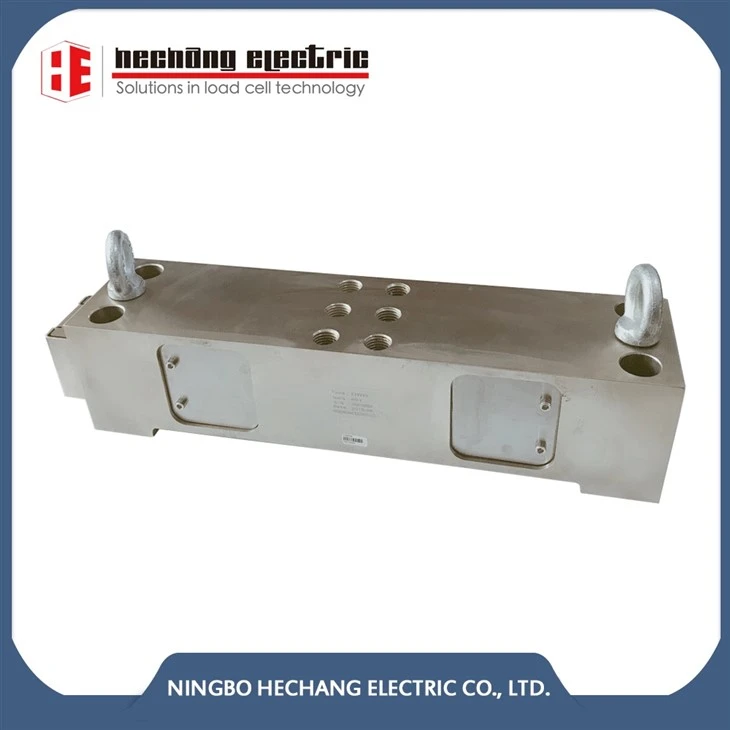

Ladle Turret Scale Load Cell
Reference: HC-DWB
SPECIAL FEATURES:
1. Capacity 40t;
2. Alloy steel construction;
3. Service temperature up to 150°C;
4. Integrated sensor for temperature monitoring;
5. Separate mounting of connecting cable through connector;
Description
DESCRIPTION
Model HC-DWB is a high-temperature, double-ended shear beam load cell that is fully interchangeable with the Schenck DWB series. It is primarily designed for steel ladle weighing applications in harsh steel mill environments, such as ladle turrets, transfer cars, and scrap charging systems. The HC-DWB operates reliably over a wide temperature range from -10°C to 150°C, ensuring accurate and stable weight measurement even under intense thermal radiation and frequent heavy shocks.
APPLICATIONS
- Ladle ferries
- Ladle turret scales
- Silo and hopper scales
- Scrap bucket, roller table weighing and tundish scales
OUTLINE DIMENSIONS in mm

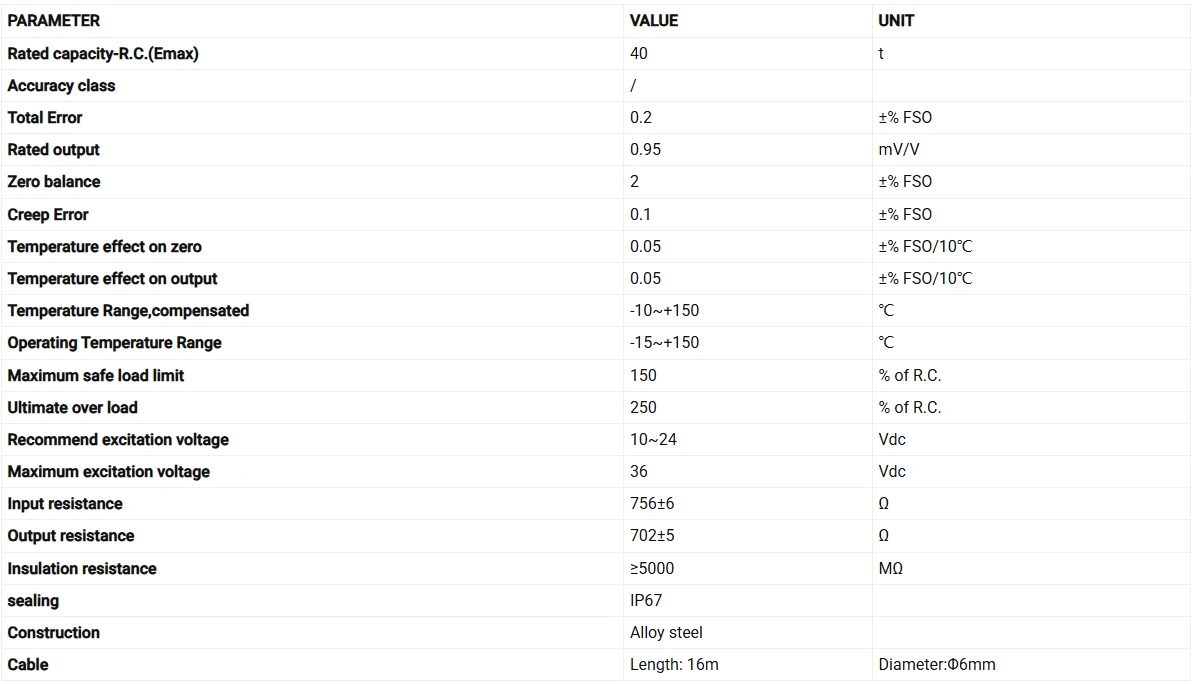

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.

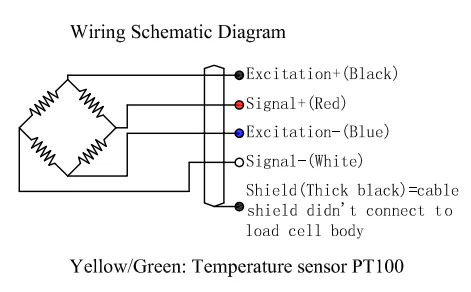

Wiring Schematic Diagram
