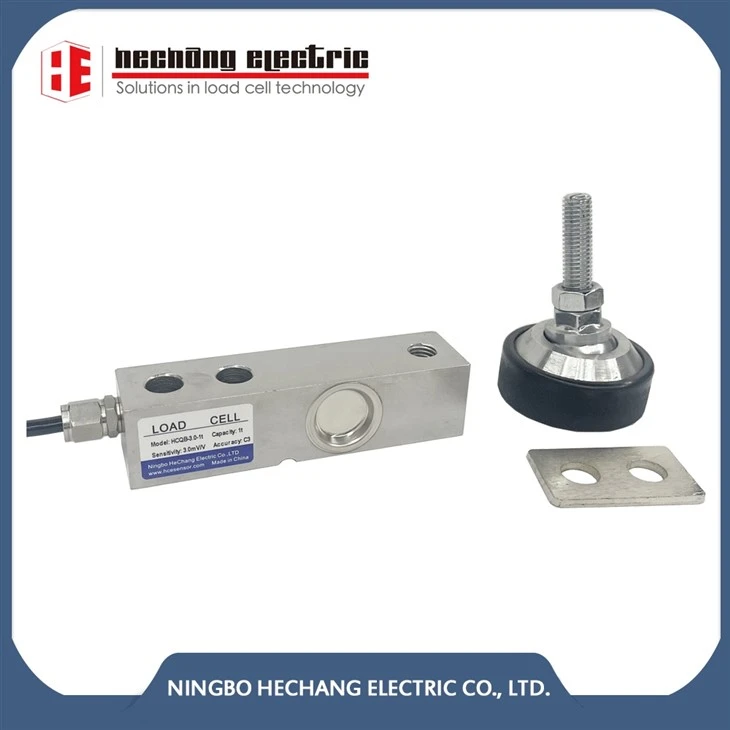

Floor Scale Load Cell
Reference: HCQB-2.0-*kg
SPECIAL FEATURES:
1. Capacity 500kg~2500kg;
2. Sensitivity: 2.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP67~IP68;
6. Optinal: stainless steel;
Description
DESCRIPTION
The floor scale load cell is a low profile single-ended shear beam. It's nickel-plated tool steel. These products are suitable for small and medium platform scales, overhead track scales and process weighing applications. Reliable sealing is ensured by the proprietary polyurethane potting compound and additional mechanical protection of the strain gage area. Ease of installation is made possible through the use of a partially threaded hole to accept leveling feet, load buttons, or loading cables.
APPLICATIONS
● Floor scale
● Tank weighing
● Bin/hopper weighing
OUTLINE DIMENSIONS in mm
SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
