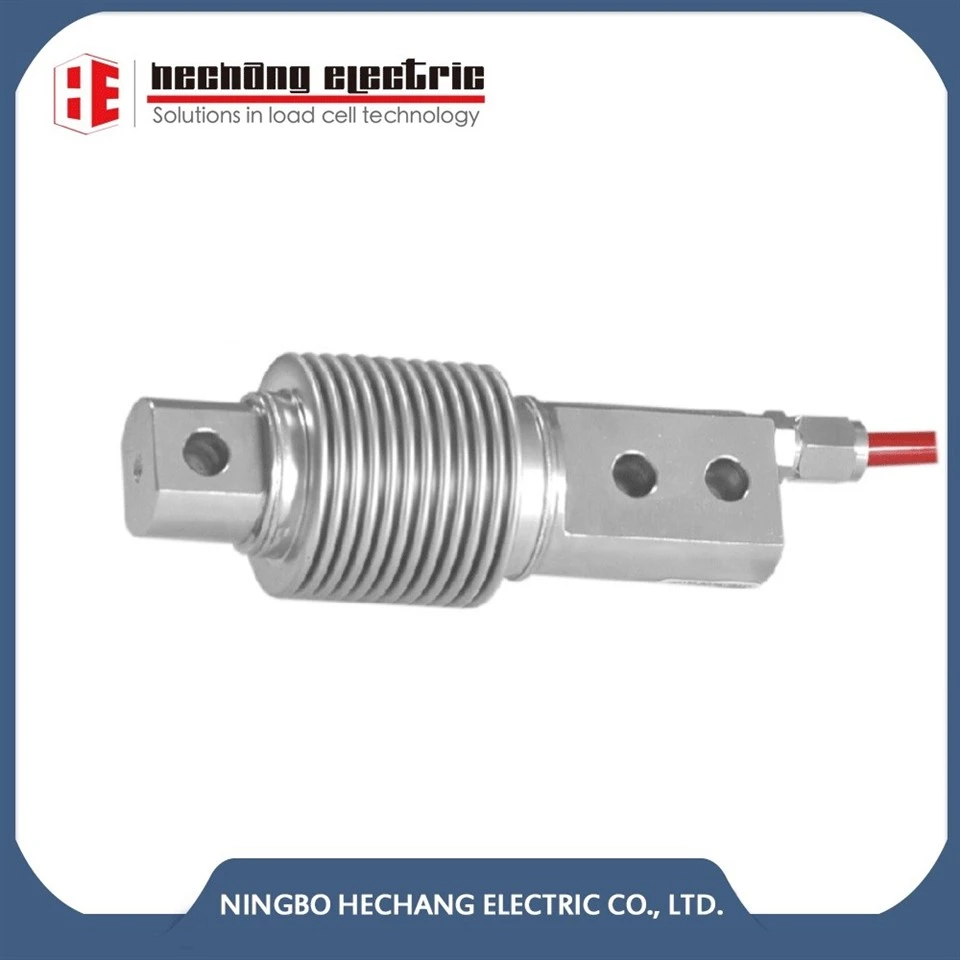

Bending Beam Load Cell
Reference: HCZ6
SPECIAL FEATURES:
1. Capacity 5kg~500kg;
2. Sensitivity:2.0mV/V;
3. High accuracy C3;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP68;
6. Interchangeable products HBK Z6, Mettler Toledo MTB, VISHAY 355 ;
Description
DESCRIPTION
Model HCZ6 is a welded bending beam load cell manufactured in stainless steel. Hermetically sealed against moisture the model HCZ6 construction and polyurethane shielded cable enables the load cell to function in harsh environment while maintaining its operating specifications. The low profile, high accuracy and sealing makes this load cell highly suitable for applications such as low profile platforms, packing machines and mechanical scales and variety of other applications where sealed cells are required.
APPLICATIONS
● Low profile platforms
● Loss-in-weight feeders
● Marine and hybrid scales
● Food industry harsh environment
● Belt weighers
OUTLINE DIMENSIONS in mm

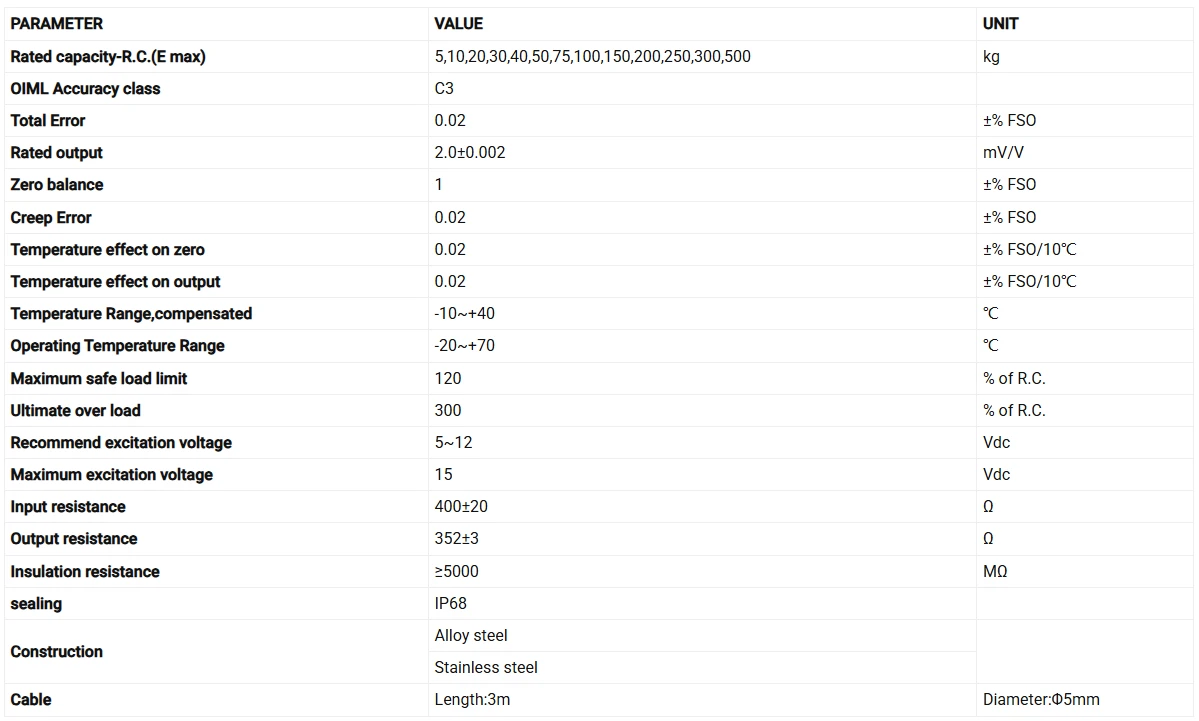

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
