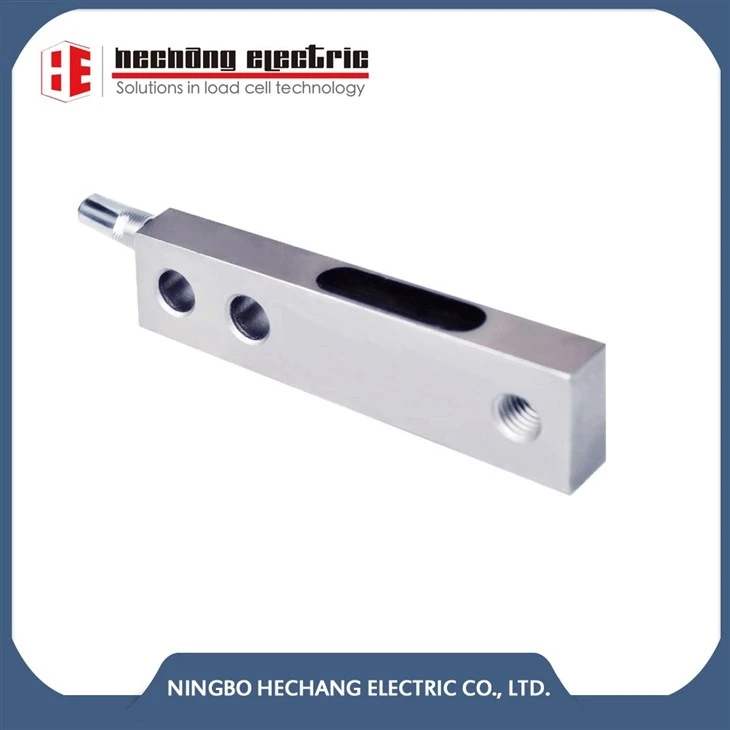

Ultra Low Profile Shear Beam Load Cell

Reference: HBK2
SPECIAL FEATURES:
1. Capacity 500~2000kg;
2. Sensitivity:2.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP67;
6. Optinal: stainless steel;

Send Inquiry

Description

DESCRIPTION

Model HBK2 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. Model HBK2 is a low profile shear beam load cell designedfor high accuracy platform scales, pallet scales and process weighing applications.

It has high immunity to shock or side loading, and is available in 2 mV/V sensitivity. Sealed to IP67 as standard the 3520 is ideally suited for harsh industrial applications where performance and durability are paramount. The extremely low profile makes this load cell ideal for today's modern low profile industrial platforms.
