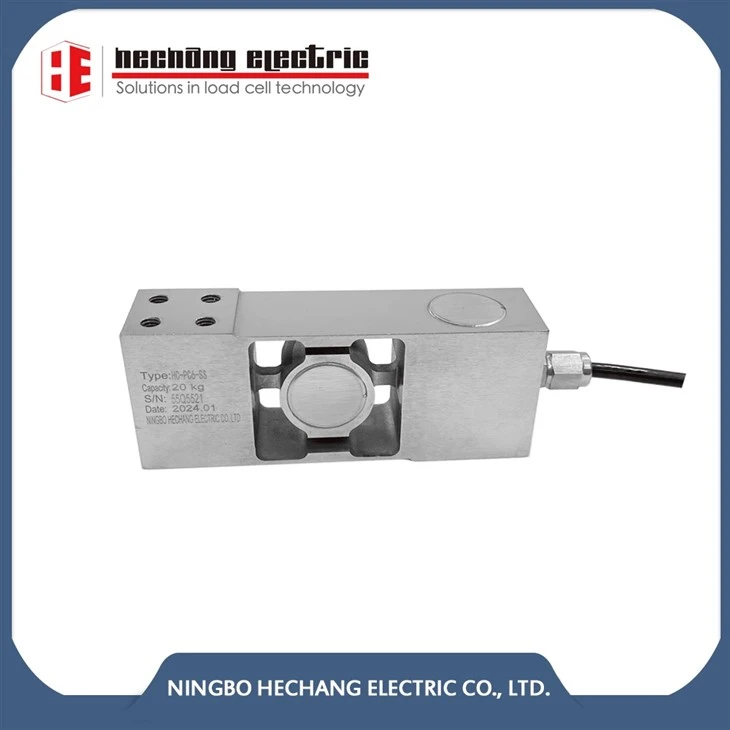

Medium Capacity Single Point Load Cell PC6

Medium Capacity Single Point Load Cell PC6

Reference: HPC6
SPECIAL FEATURES:
1. Capacity 20~200kg;
2. Sensitivity:2.0mV/V;
3. High accuracy 0.05%F.S;
4. Stainless steel construction;
5. Environmental protection: IP68;
6. Interchangeable products Flintec PC6;

Description

DESCRIPTION



Designed for high accuracy wet environments, the HPC6 single point load cell is the benchmark product. The PC6 is ideal for weighing machinery in food and beverage applications that demand accuracy and robustness. The compact nature of the HPC6 lends itself also to the construction of high accuracy bench scales and multi-head weighers.



APPLICATIONS



  • Platform scales
  • Bench scales
  • Multi-head weighers

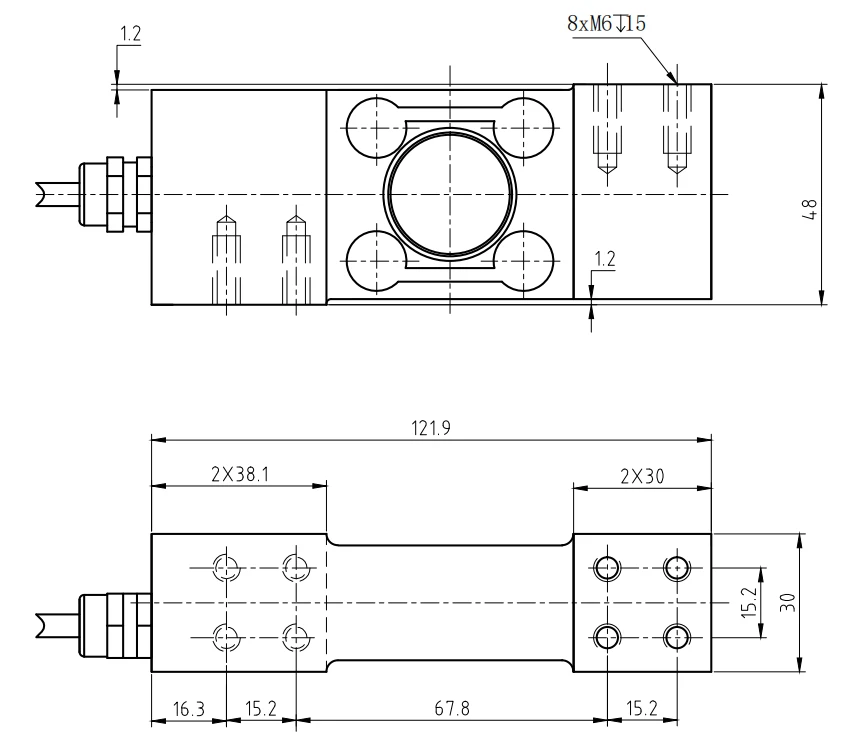

OUTLINE DIMENSIONS in mm



product-857-751

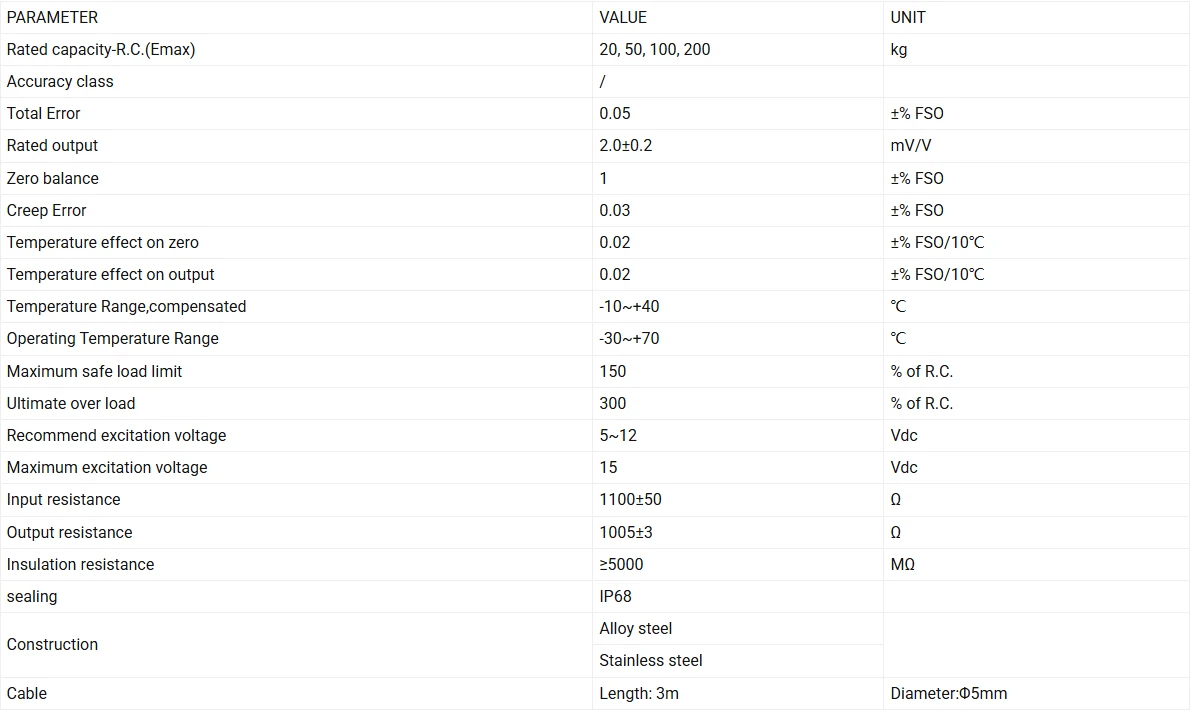

SPECIFICATIONS

 product-1191-713

Note: FSO-Full Scale Output

All specifications listed subject to change without notice.

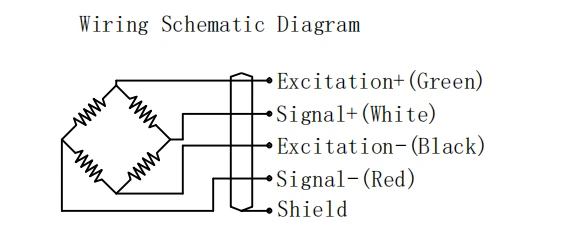

Wiring Schematic Diagram



product-572-228
