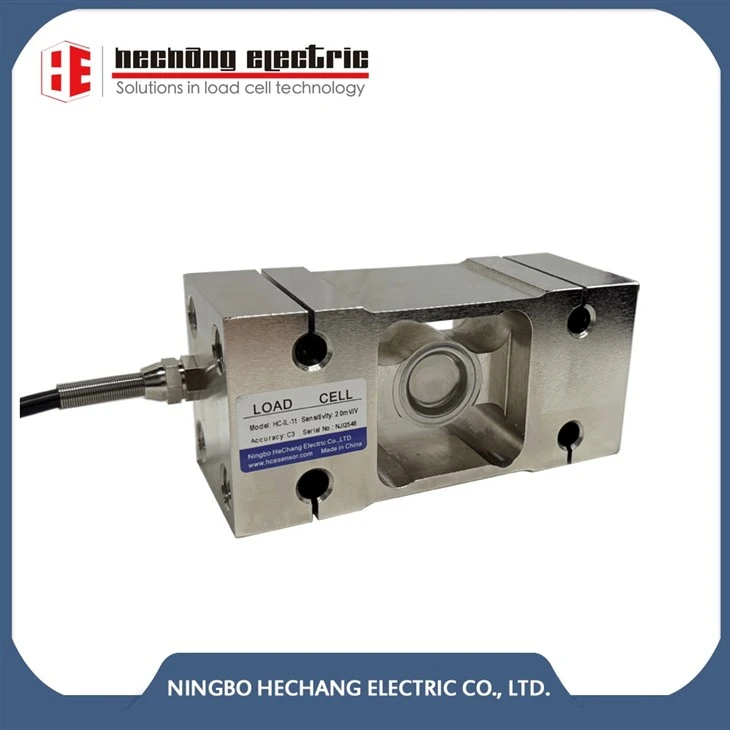

Hermetically Sealed Single Point Load Cell
Reference: HIL
SPECIAL FEATURES:
1. Capacity 300~2t;
2. Sensitivity:2.0mV/V;
3. High accuracy C3;
4. Alloy steel tool steel construction;
5. Environmental protection: IP68;
6. Interchangeable products Mettler Toledo IL;
Description
DESCRIPTION
The HIL is the ideal solution for hopper and bin weighing due to high capacities and large possible platform sizes. The mounting schema allows for direct bolting to a wall. The variety of capacities allows for wide application range.
APPLICATIONS
- Platform weighing
- Small tanker
- Bin weighers

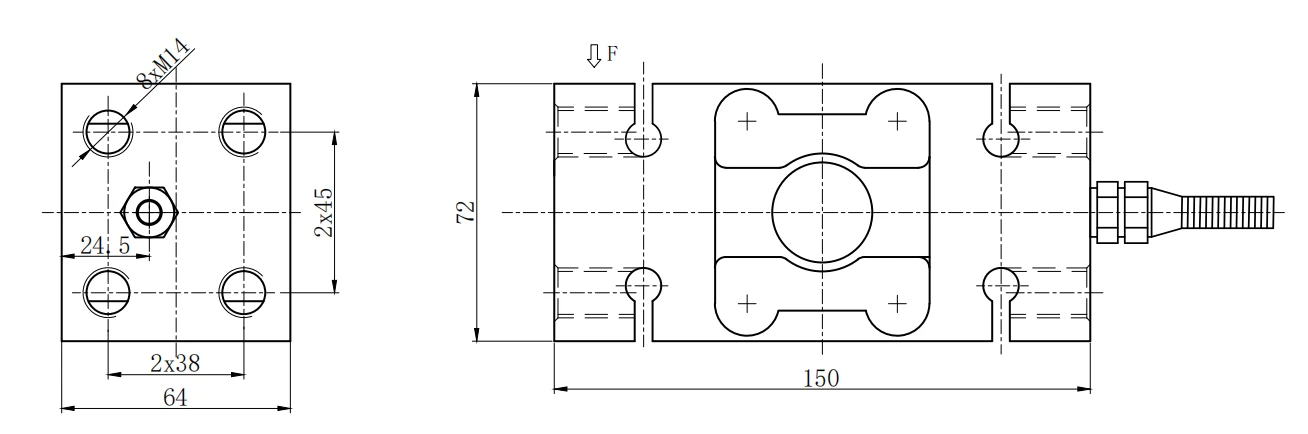

OUTLINE DIMENSIONS in mm
SPECIFICATIONS
|
PARAMETER |
VALUE |
UNIT |
|
Rated capacity-R.C.(Emax) |
300, 500, 750, 1000, 2000 |
kg |
|
Accuracy class |
C3 |
|
|
Total Error |
0.03 |
±% FSO |
|
Rated output |
2.0±0.2 |
mV/V |
|
Zero balance |
1 |
±% FSO |
|
Creep Error |
0.03 |
±% FSO |
|
Temperature effect on zero |
0.02 |
±% FSO/10℃ |
|
Temperature effect on output |
0.02 |
±% FSO/10℃ |
|
Temperature Range,compensated |
-10~+40 |
℃ |
|
Operating Temperature Range |
-30~+70 |
℃ |
|
Maximum safe load limit |
150 |
% of R.C. |
|
Ultimate over load |
300 |
% of R.C. |
|
Recommend excitation voltage |
5~12 |
Vdc |
|
Maximum excitation voltage |
15 |
Vdc |
|
Input resistance |
400±20 |
Ω |
|
Output resistance |
352±3 |
Ω |
|
Insulation resistance |
≥5000 |
MΩ |
|
sealing |
IP68 |
|
|
Construction |
Alloy steel |
|
|
Stainless steel |
||
|
Cable |
Length: 3m |
Diameter:Φ5mm |
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
