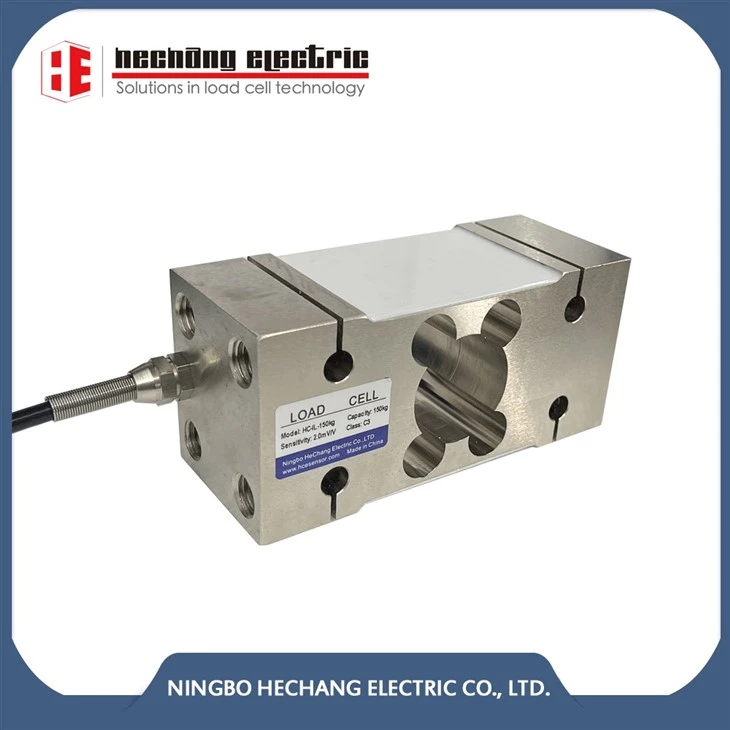

Off Center Single Point Load Cell IL
Reference: HIL
SPECIAL FEATURES:
1. Capacity 50~250kg;
2. Sensitivity:2.0mV/V;
3. High accuracy C3;
4. Alloy steel tool steel construction;
5. Environmental protection: IP66;
6. Interchangeable products Mettler Toledo IL;
Description
DESCRIPTION
The load cell can be used to support a weighing platform and, due to the off-center load compensation, the IL will weigh within tolerance regardless of load application point. IL allows for 50% static overload without compromising the weighing performance. The nickel plated steel material provides good corrosion resistance suitable for most industrial applications.
APPLICATIONS
- Platform scales
- Small tanker
- Bin weighers

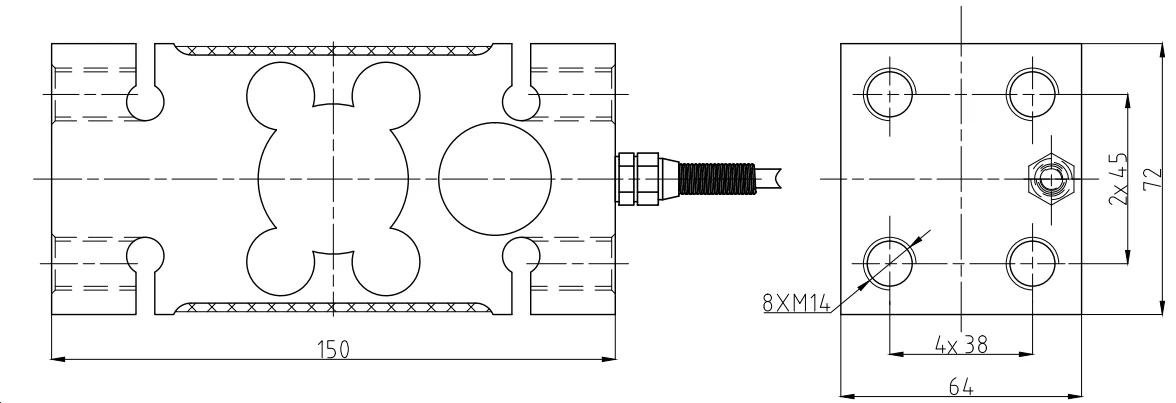

OUTLINE DIMENSIONS in mm

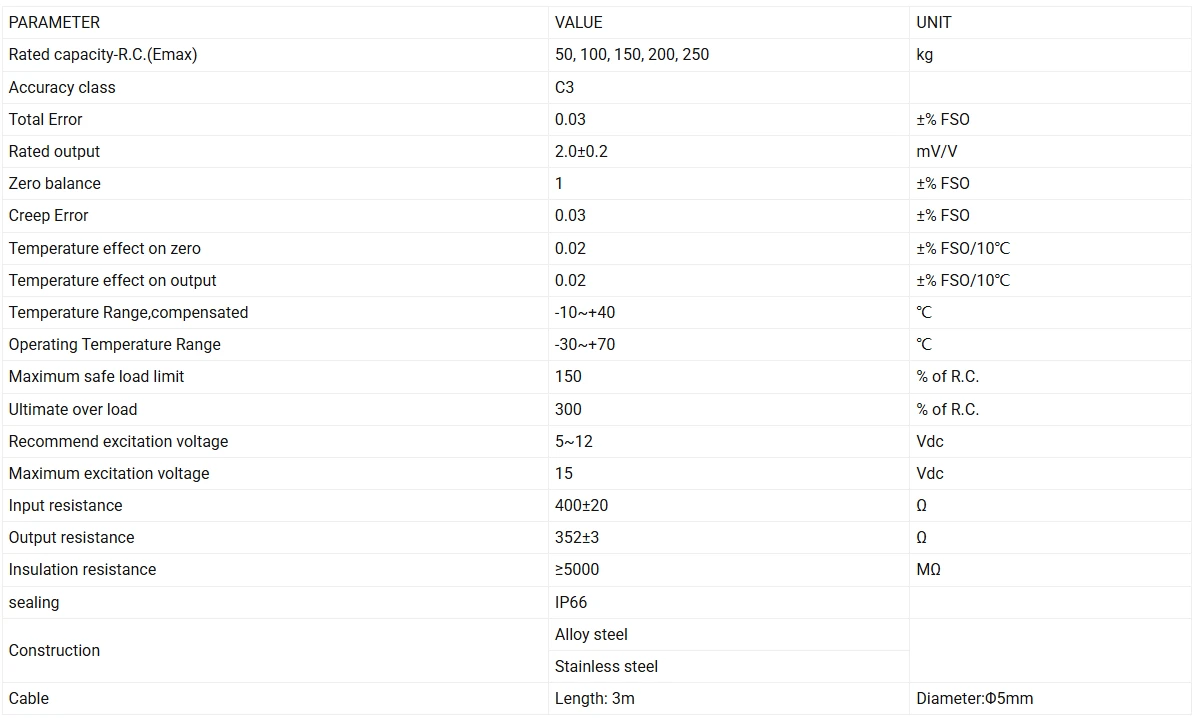

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
