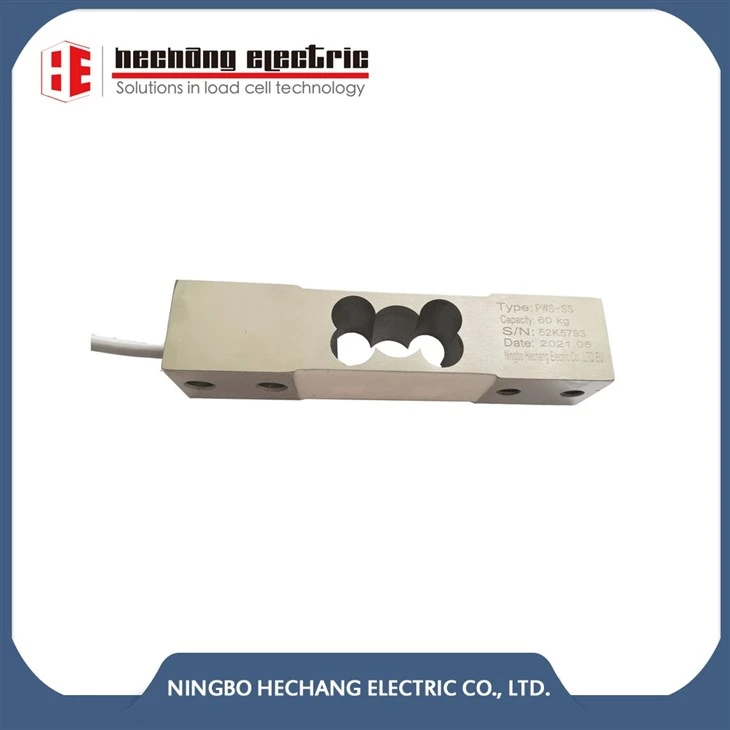

Single Point Stainless Steel Load Cell PWS
Reference: HPWS
SPECIAL FEATURES:
1. Capacity 10~700kg;
2. Sensitivity:2.0mV/V;
3. Low profile,high accuracy;
4. Stainless steel tool steel;
5. Environmental protection: IP67;
6. Interchangeable products Schenck PWS
Description
DESCRIPTION
The PWS load cells are produced entirely from stainless steel. They are connected electrically by a high-quality, 6-wire screened PVC cable. The six-wire circuitry makes the measuring signal insensitive to differences in lengths of the connection cables. It can fully replace Schenck PWS.
APPLICATIONS
- Platform scales
- Weighfeeders
- Bin weighers

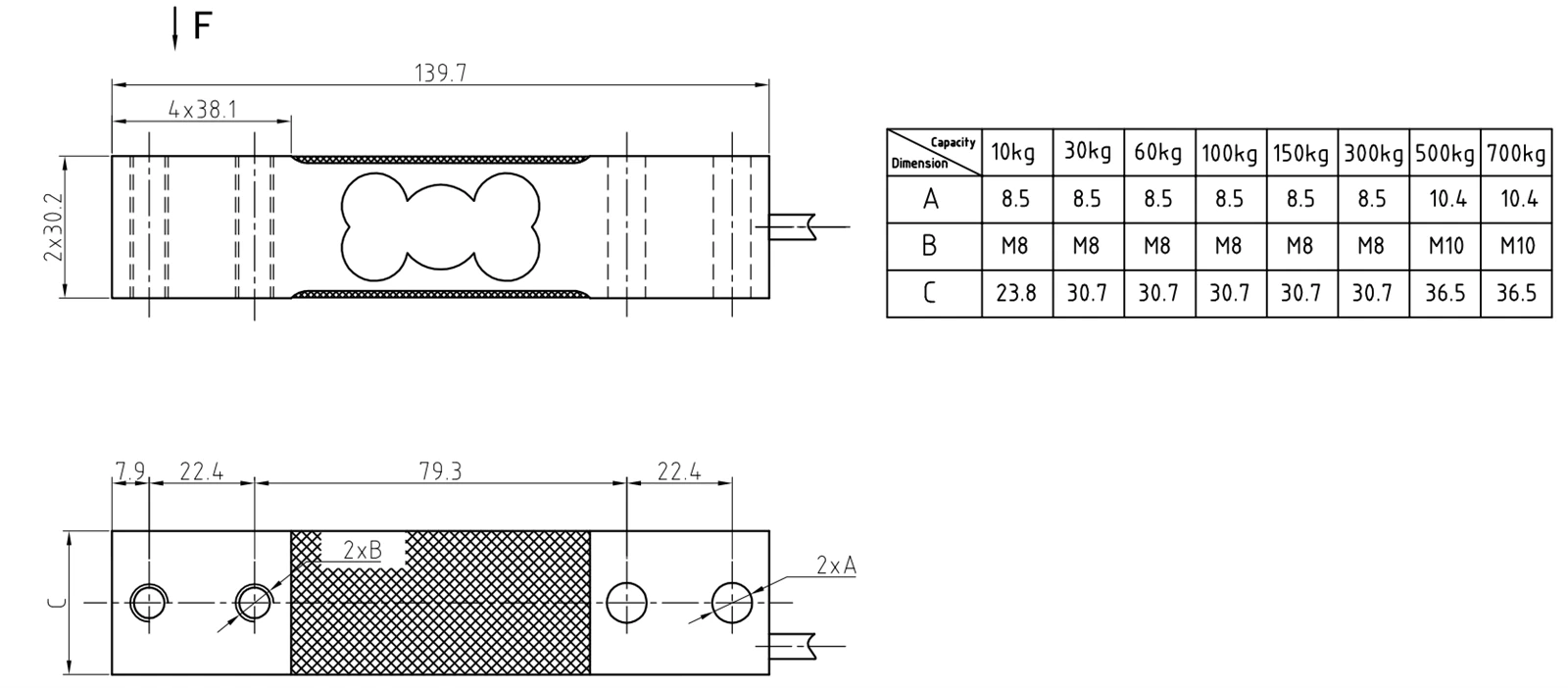

OUTLINE DIMENSIONS in mm

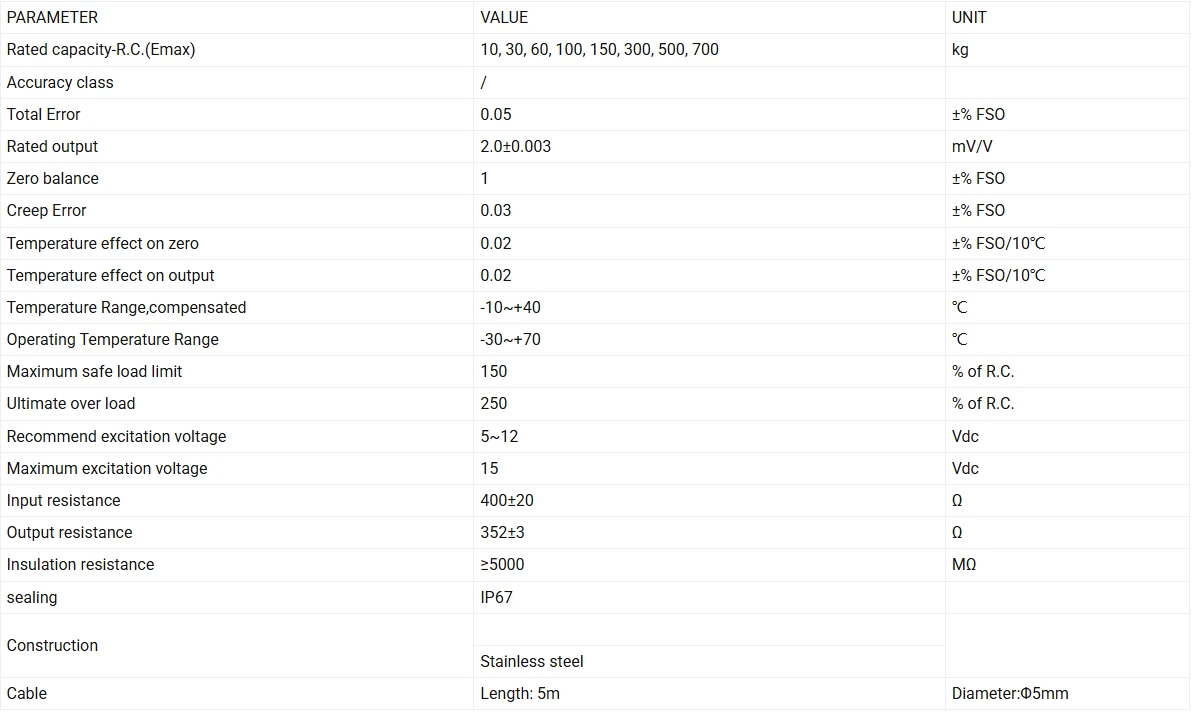

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.

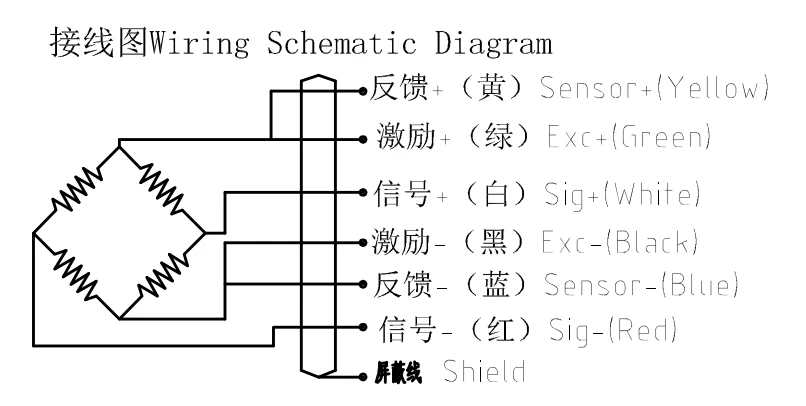

Wiring Schematic Diagram
