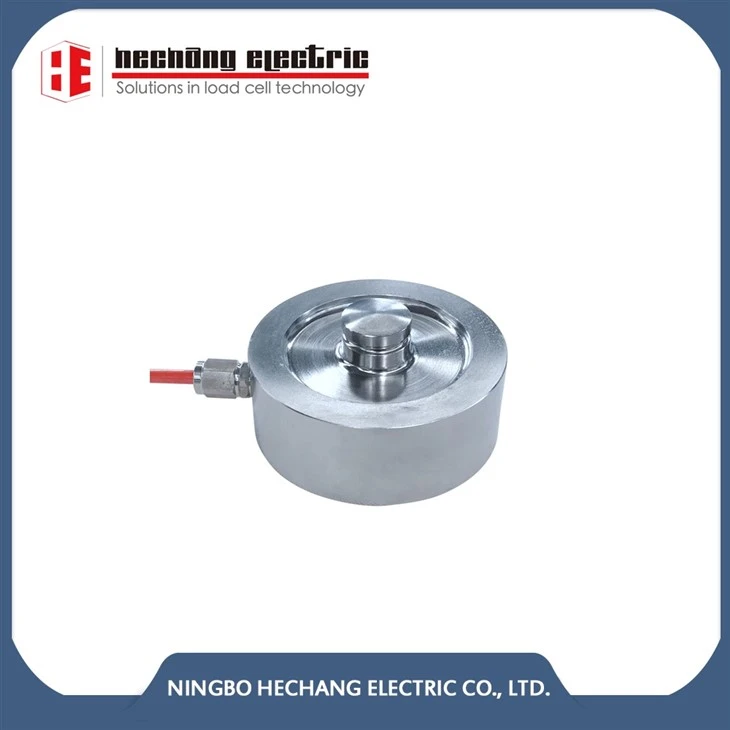

Low Profile Compression Load Cell
Reference: HPC-CNE
SPECIAL FEATURES:
1. Capacity:1t~10t;
2. Low profile, high accuracy;
3. Hermetically sealed protection: IP68;
4. Construction stainless steel;
Description
DESCRIPTION
Low profile compression load cell HPC series are mainly used in silos, tanks, hoppers, and platform weighing systems.
APPLICATIONS
- Silo and tanks
- Hopper weighing

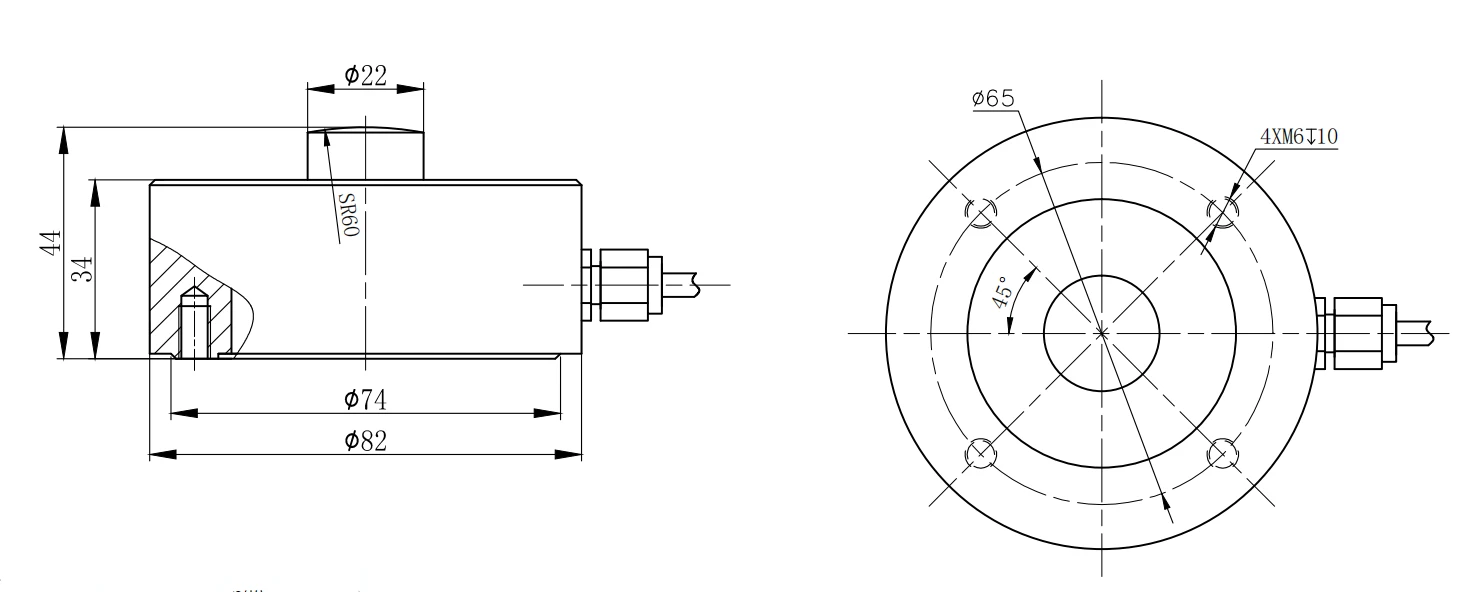

OUTLINE DIMENSIONS in mm

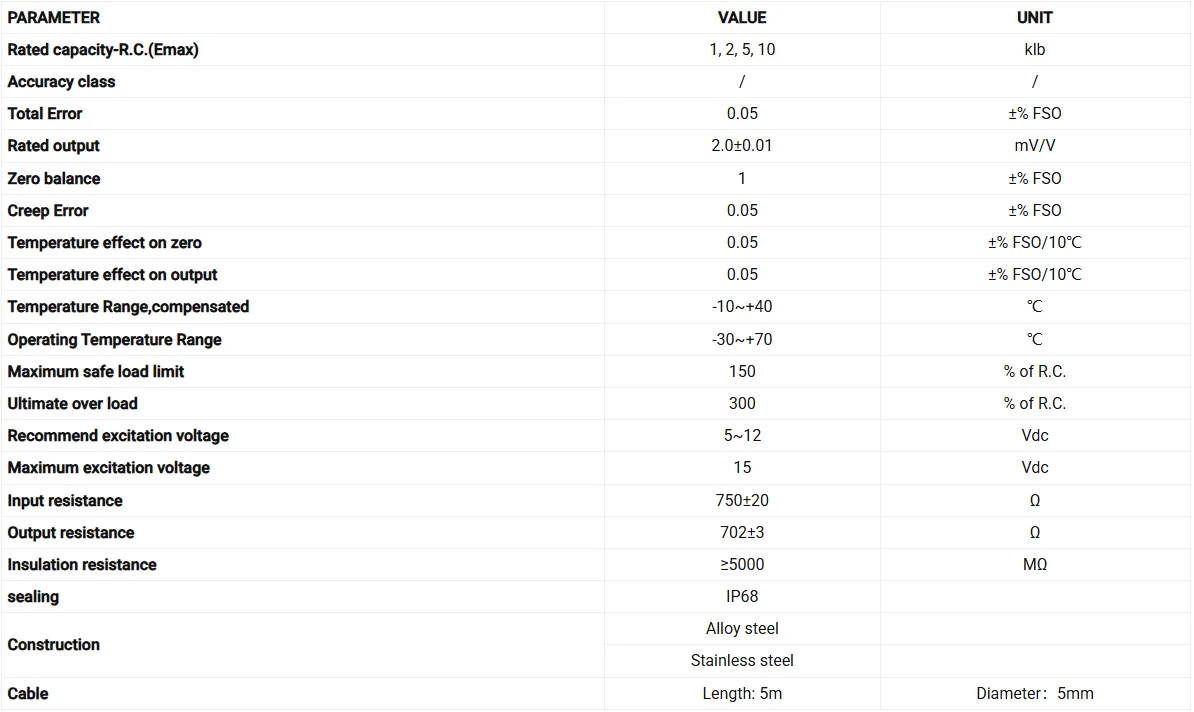

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
