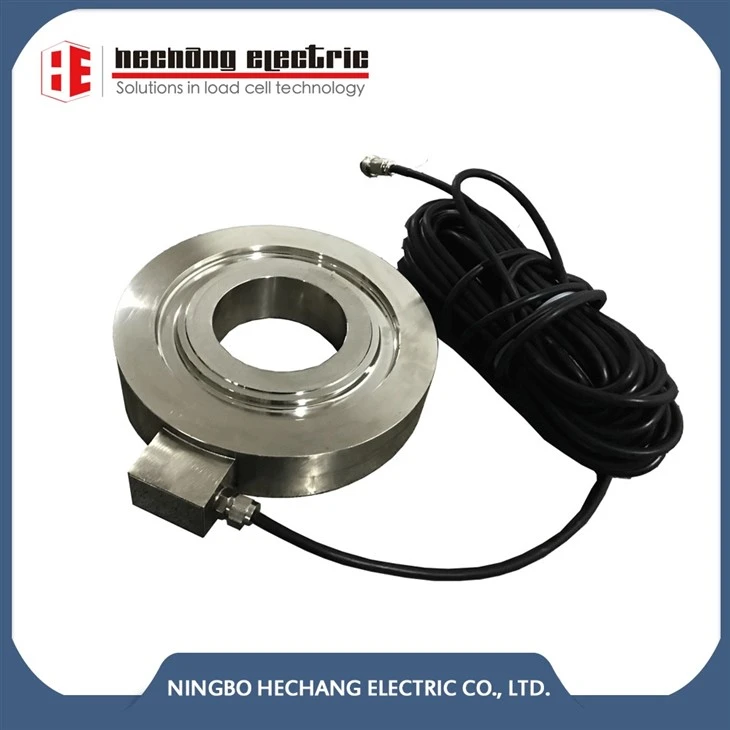

Through Hole Anchor Load Cell
Reference: HLC210
SPECIAL FEATURES:
1. Capacity:300~2500KN;
2. Low profile, high accuracy;
3. Hermetically sealed protection: IP68;
4. Construction alloy steel;
Description
DESCRIPTION
The anchor load cell resistive strain gage type centre hole load cell is extensively used to determine load in rock bolts, tiebacks, foundation anchors, cables or struts depending on the application. It is also used for compressibe load measurement between structural members.
APPLICATIONS
- To determine load in rock boltsm tiebacks, foundation anchors, cables or struts;
- Proof testing and long term performance monitoring of different kind of anchor systems
- Compressive load measurement between structural members

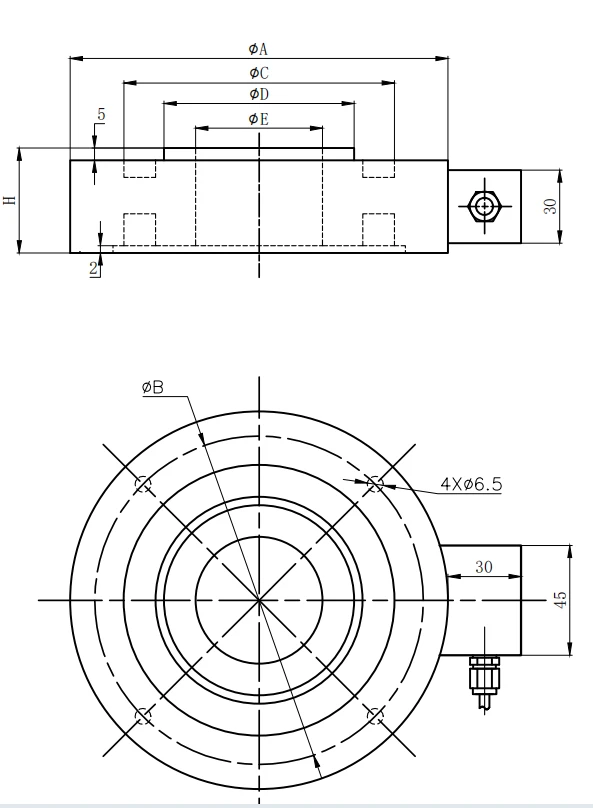

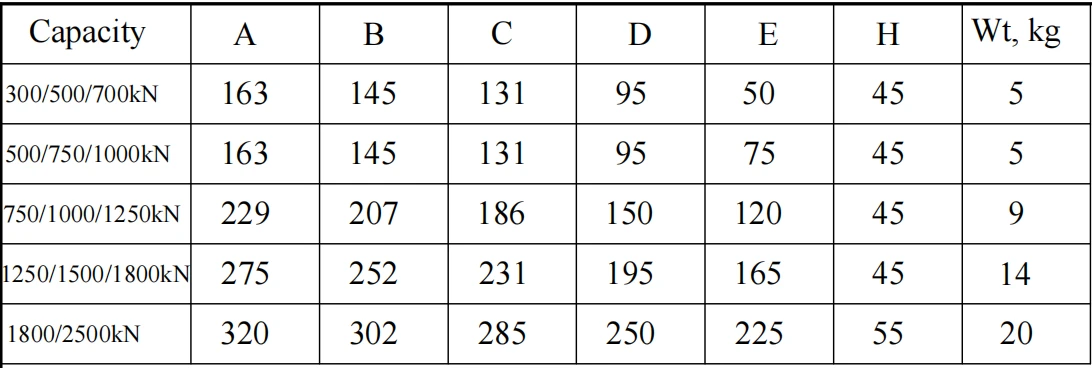

OUTLINE DIMENSIONS in mm

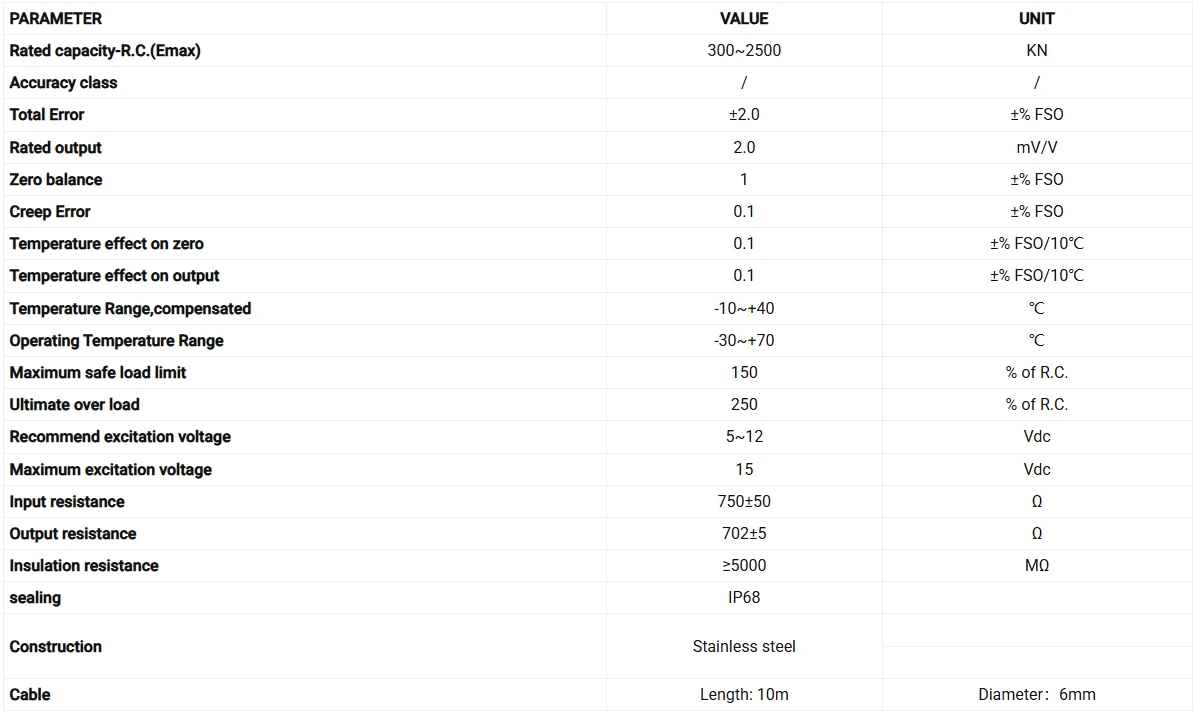

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
