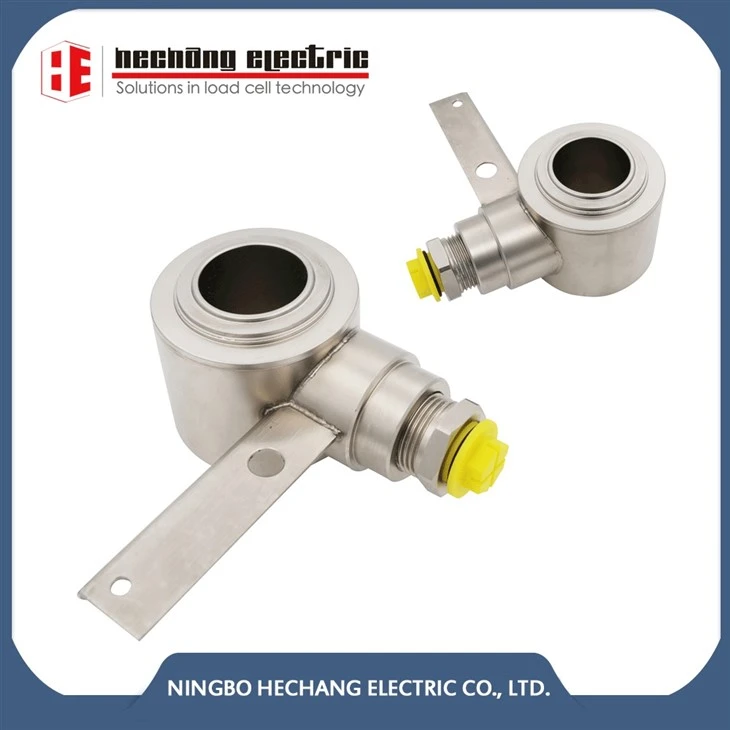

Stainless Steel Polished Rod Load Cell
Reference: HKC
SPECIAL FEATURES:
1. Capacity:30klb&50klb;
2. Sensitivity:2.0mV/V;
3. 0-5V and 4-20mA singal is optinal;
3. Hermetically sealed protection: IP68;
4. Construction stainless steel;
5. Interchangeable products Flintec CC1 ;
Description
DESCRIPTION
Hechang HKC compression load cell specifically designed to measure the load on oil well 'sucker rod' pumping systems. These bonded foil strain gage load cells provide 0.20% combined accuracy (FSO) and are engineered for severe outdoor use with sealed construction and built-in lightning protection. Our proprietary body design matches the industry-standard mounting configuration and will seamlessly integrate into new or existing pump-off control operations. The rod load cell is fatigue rated and available in ranges from 30,000 to 50,000 lbf with a 200% safe overload capacity.
APPLICATIONS
- Oil Well Pumps

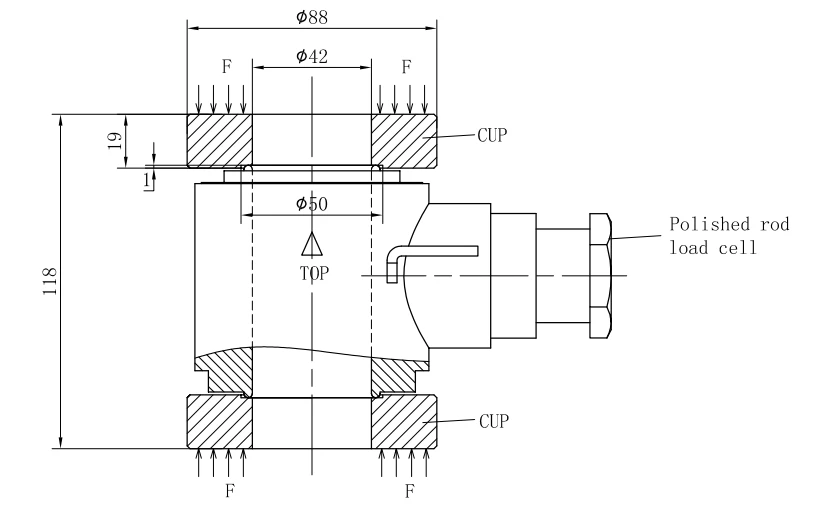

OUTLINE DIMENSIONS in mm

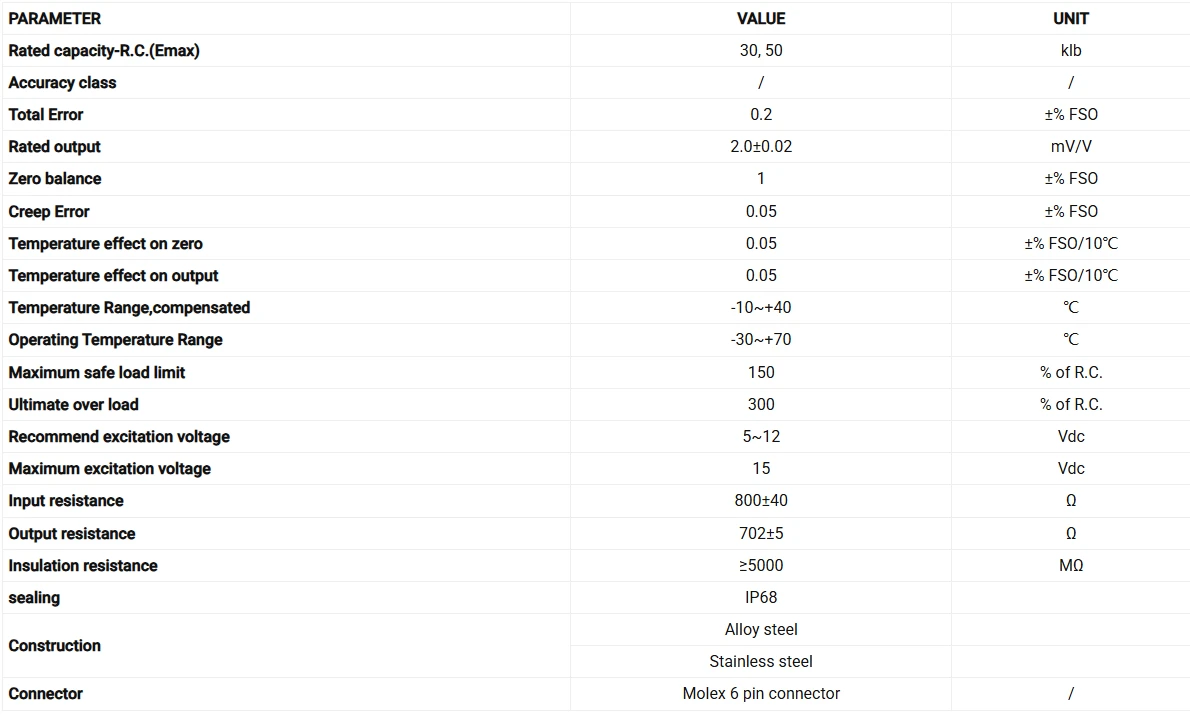

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
