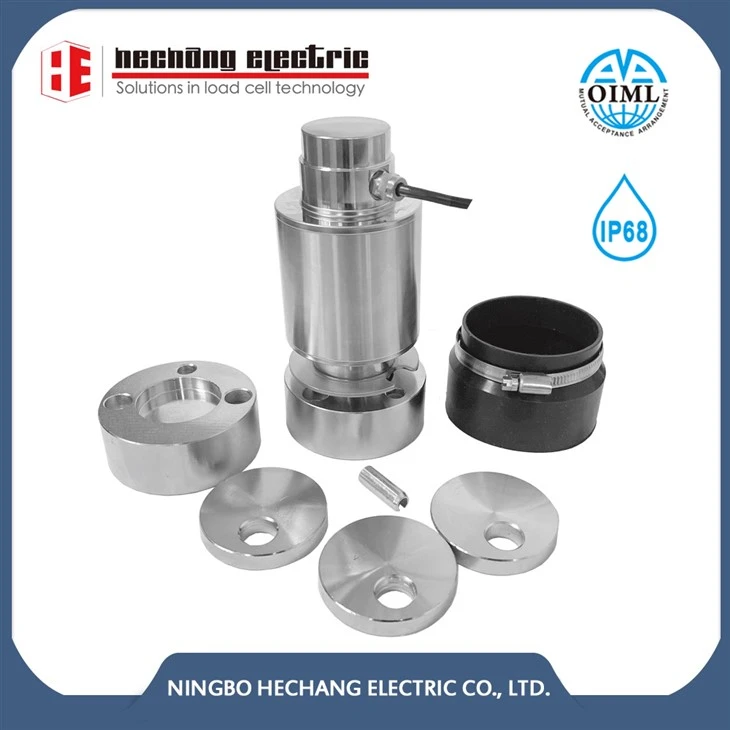

Rocker Pin Compression Load Cell
Reference: HC16A
SPECIAL FEATURES:
1. Capacity:10~50t;
2. Sensitivity:2.0mV/V;
3. Self-aligning, alloy steel single column;
4. Environmental protection: IP68;
5. Optinal: stainless steel;
6. Interchangeable products HBK C16A;
Description
DESCRIPTION
The HC16A is a single column, alloy steel compression load cell. This product is suitable for use in road and rail weigh bridges and process weighing applications.The welded construction ensure that this product can be used successfully in harsh environments. It can fully replace HBK column load cell C16A.
APPLICATIONS
- Weighbridges
- Silo hopper weighing

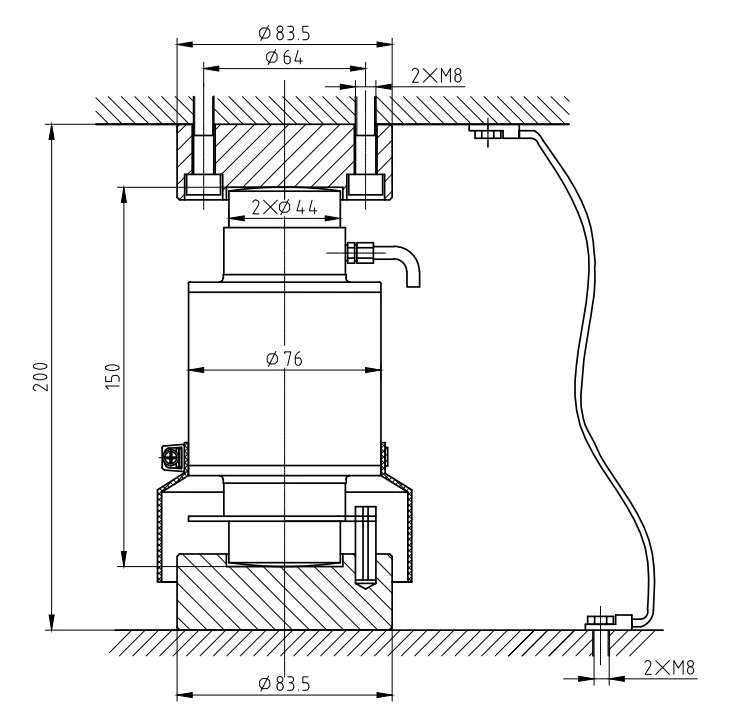

OUTLINE DIMENSIONS in mm

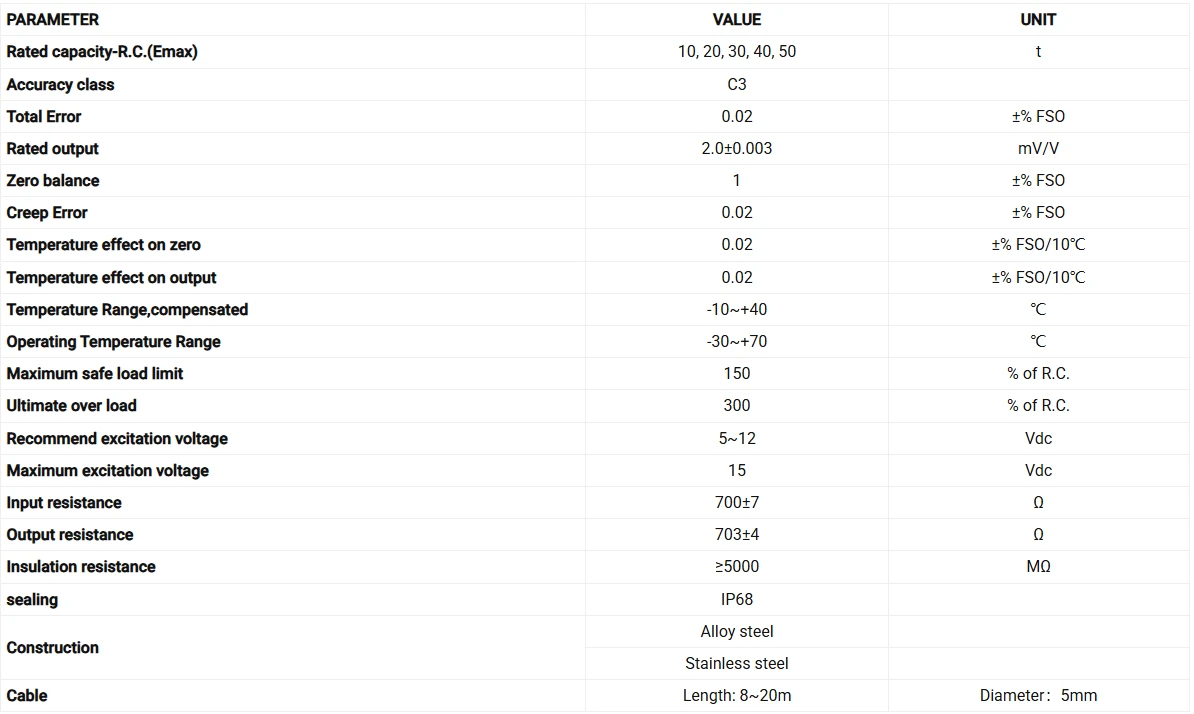

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.

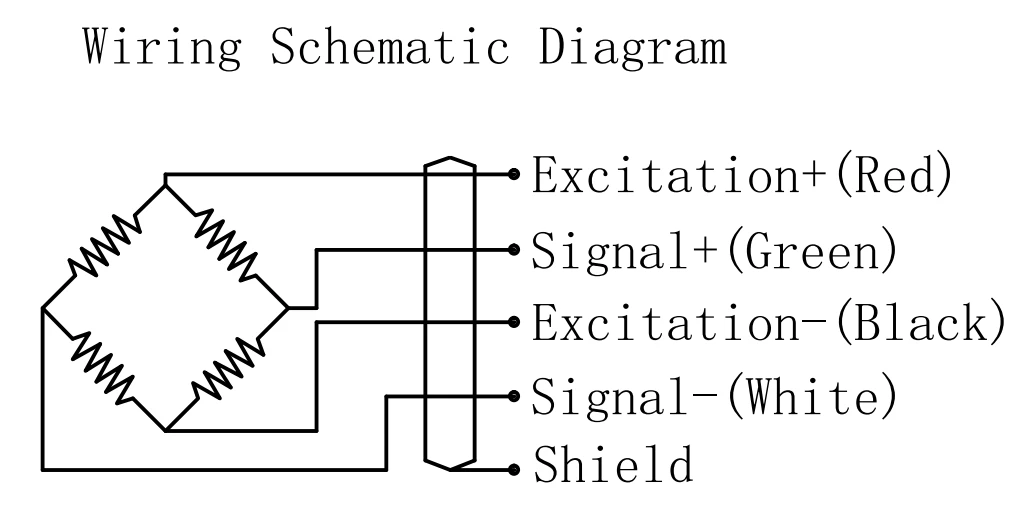

Wiring Schematic Diagram
