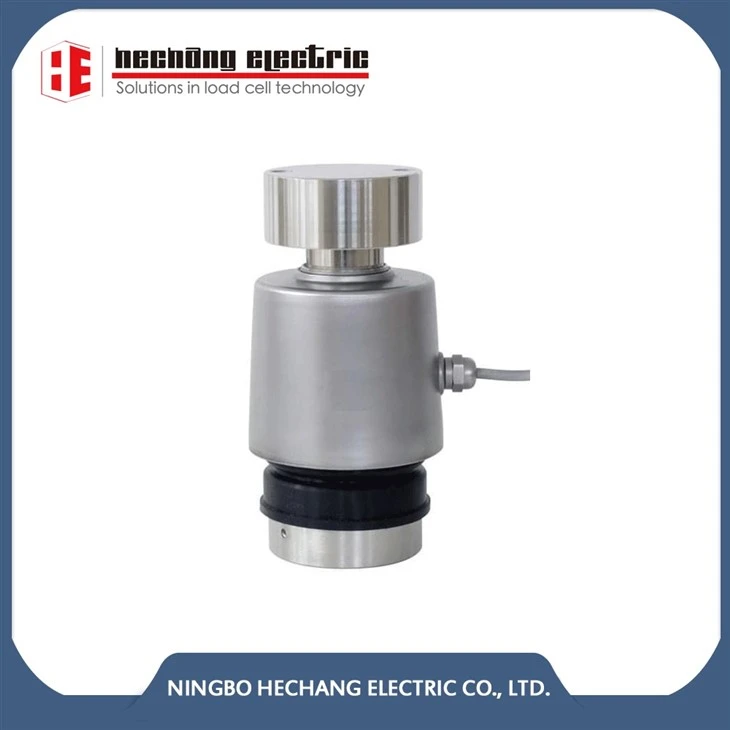

Truck Scale Column Load Cell HRC3
Reference: HRC3
SPECIAL FEATURES:
1. Capacity:30~50t;
2. Sensitivity:2.0mV/V;
3. Self-aligning, alloy steel single column;
4. Hermetically sealed protection: IP68;
5. Construction stainless steel;
6. Interchangeable products Fintec RC3;
Description
DESCRIPTION
The HRC3 is a high capacity, stainless steel single column compression load cell. This product is specifically designed for use in rugged outdoor environments. Stainless steel construction with IP68 welded seal comes standard with optional true hermetic IP69K sealing available upon request. This load cell is used primarily in truck and train scales, but can just as easily be used to weigh tanks and silos.
APPLICATIONS
- Silo and Tank Storage
- Railway Scales
- Truck Scales

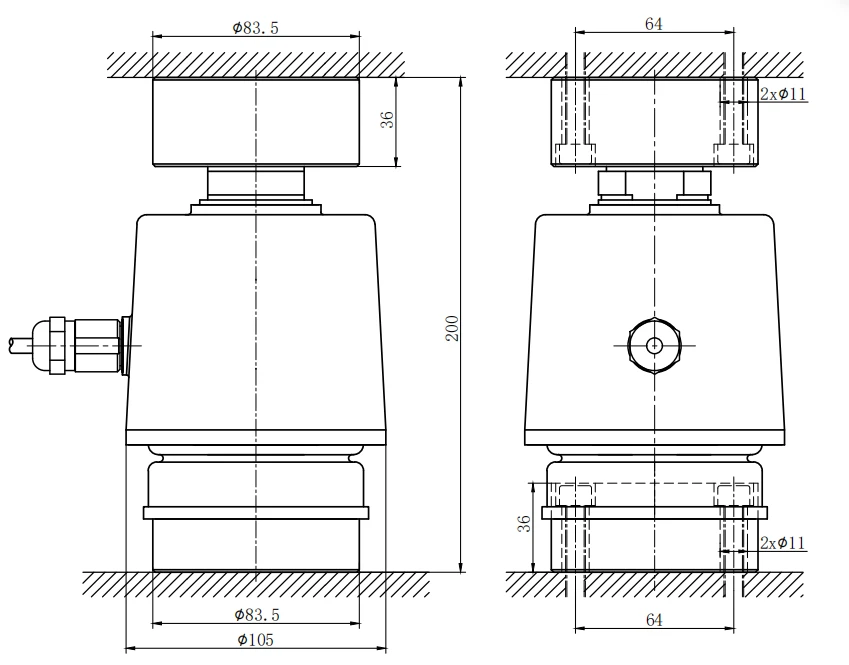

OUTLINE DIMENSIONS in mm

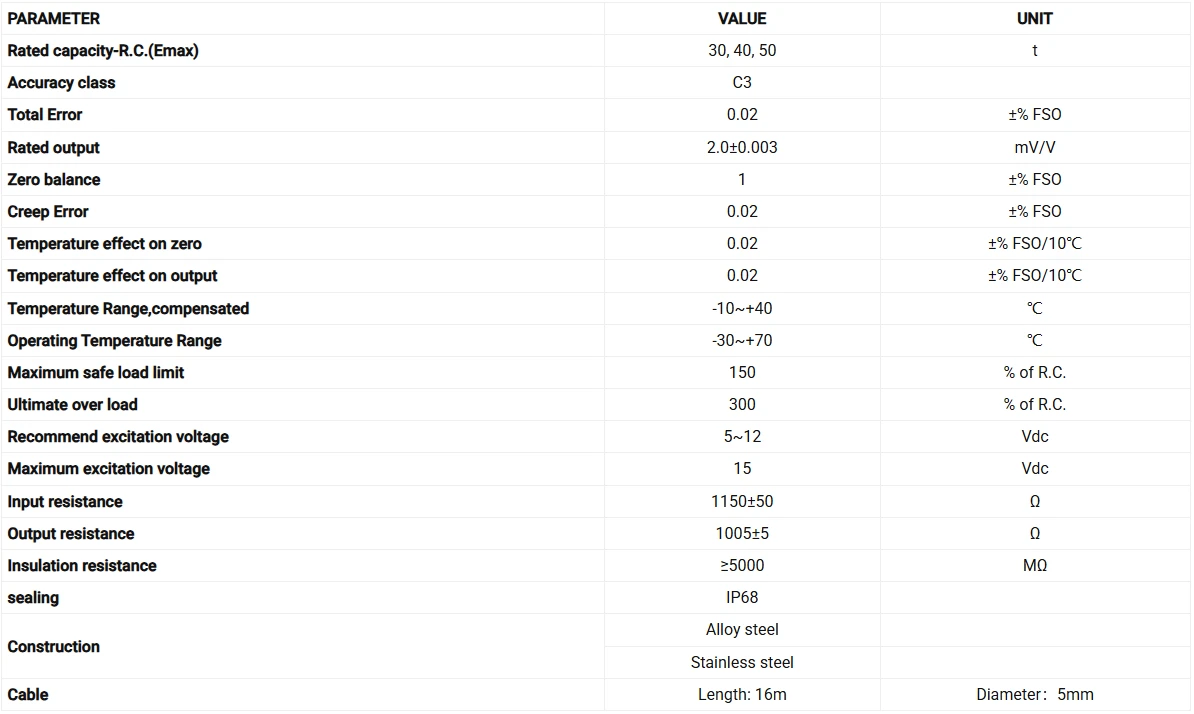

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
