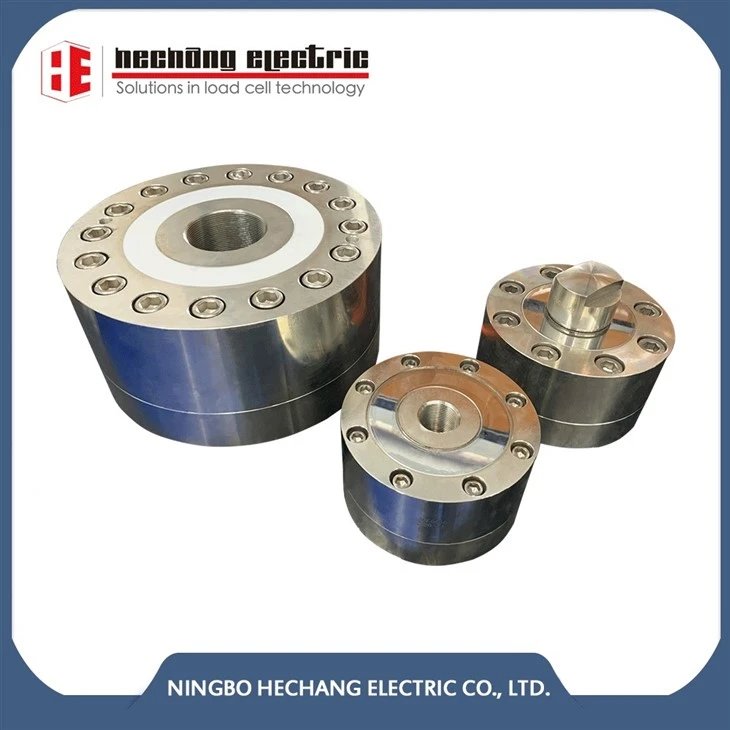

Pancake Load Cell
Reference: HLCD
SPECIAL FEATURES:
1. Capacity:1t~20t;
2. Low profile, high accuracy;
3. Hermetically sealed protection: IP68;
4. Construction alloy steel;
Description
DESCRIPTION
A low profile design that makes HLCD the most suitable application concerning critical height for safety reasons. The shear web design provides excellent performance even when side forces are inevitable in normal operations. The typical example for side force resistance is the application in motor truck scales. HLCD is constructed of alloy steel and is fully potted with special chemical compounds to IP67 to protect the cell from water and
moisture attack.
APPLICATIONS
- Testing machines
- Platform scales
- Hopper and vessel weighing
- Truck scales

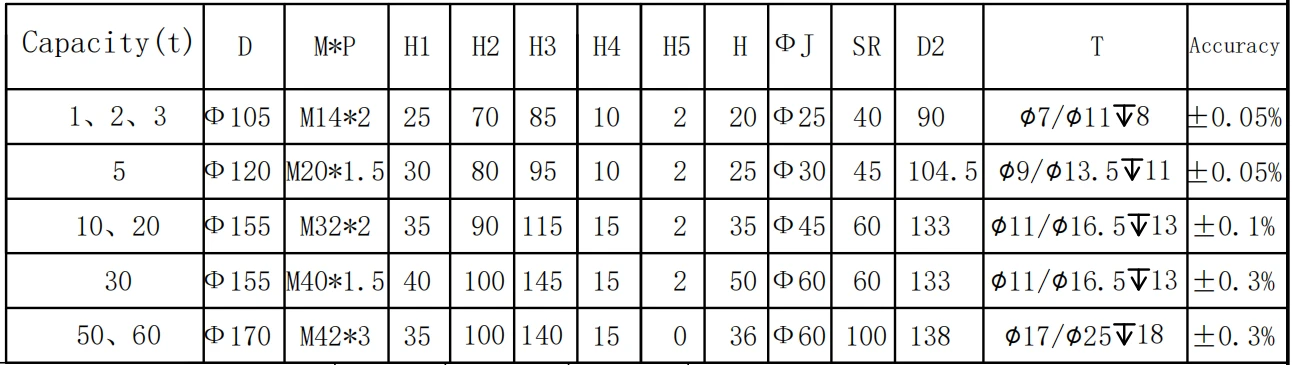

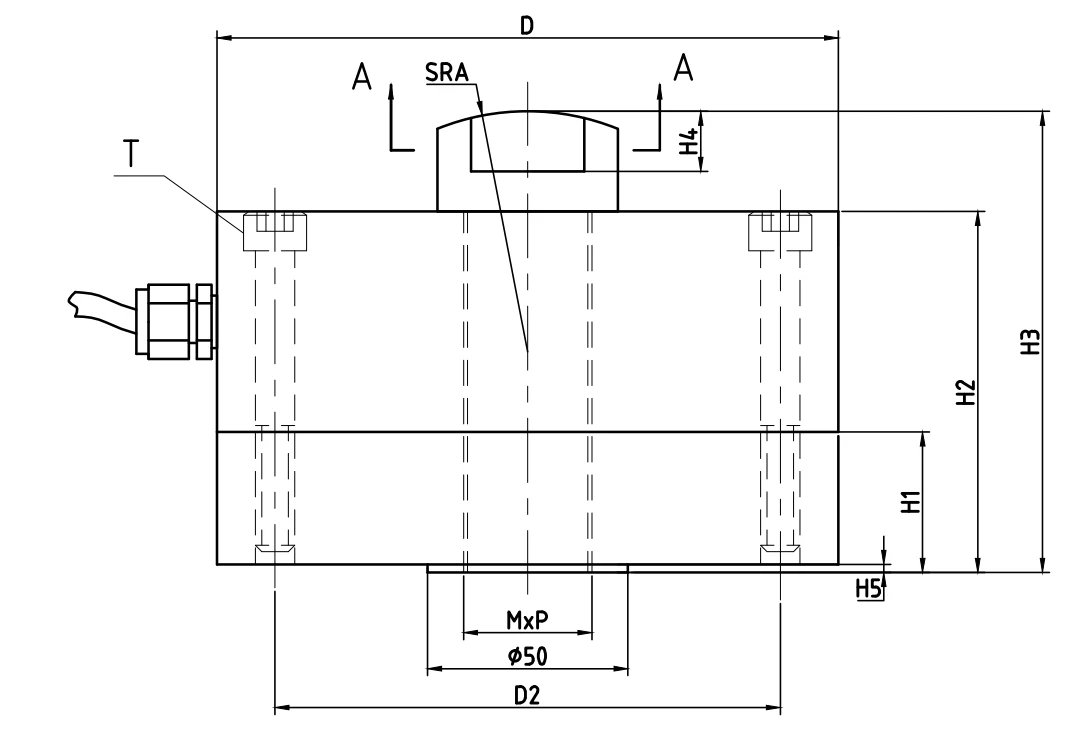

OUTLINE DIMENSIONS in mm

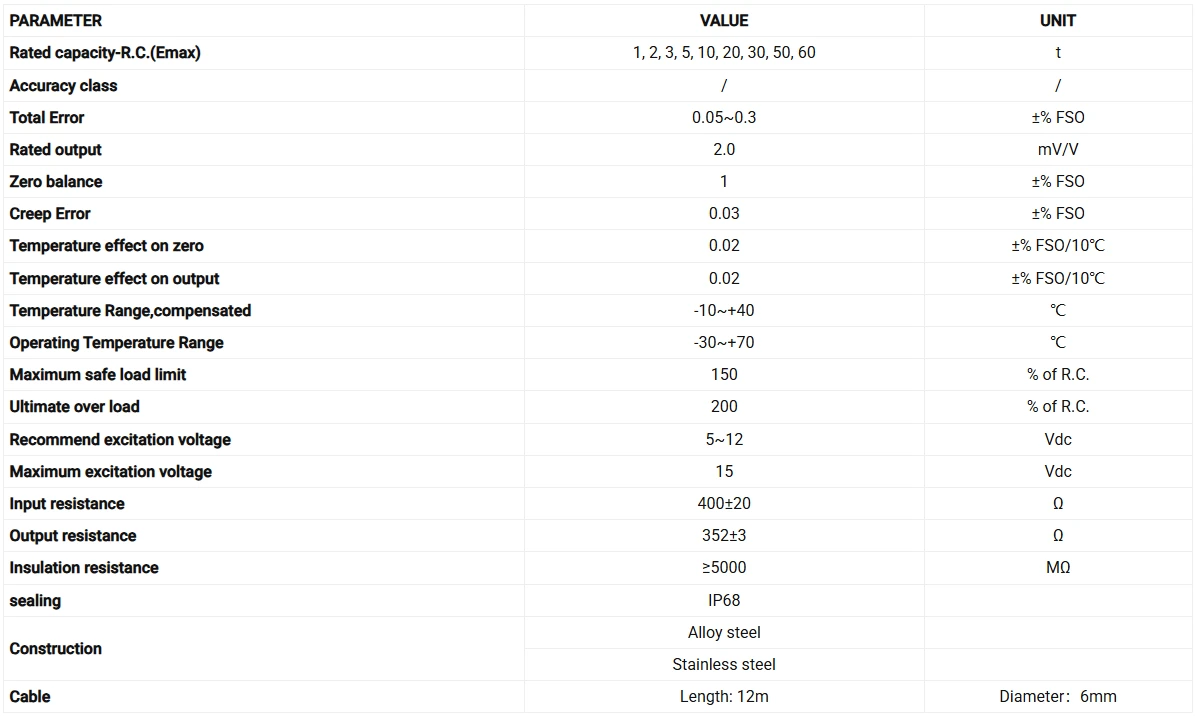

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
