Double Ended Shear Beam Load Cell
Reference: DSC
SPECIAL FEATURES:
1. Capacity 5klb~250klb;
2. Sensitivity: 3.0mV/V;
3. Low profile construction;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP68;
6. Interchangeable products Vishay 5103;
Description
DESCRIPTION
Hechang DSC load cells are double ended, center-loaded shear beam load cells. The DSC is constructed of nickel-plated alloy steel. These products are suitable for tank weighing systems, low cost weighbridges, and axle weighers. The IP68 sealing makes it suitable for applications that are subjest to high-pressure wash down.
APPLICATIONS
● Tank hopper weighing
● On-board weighing
● Weighbridges

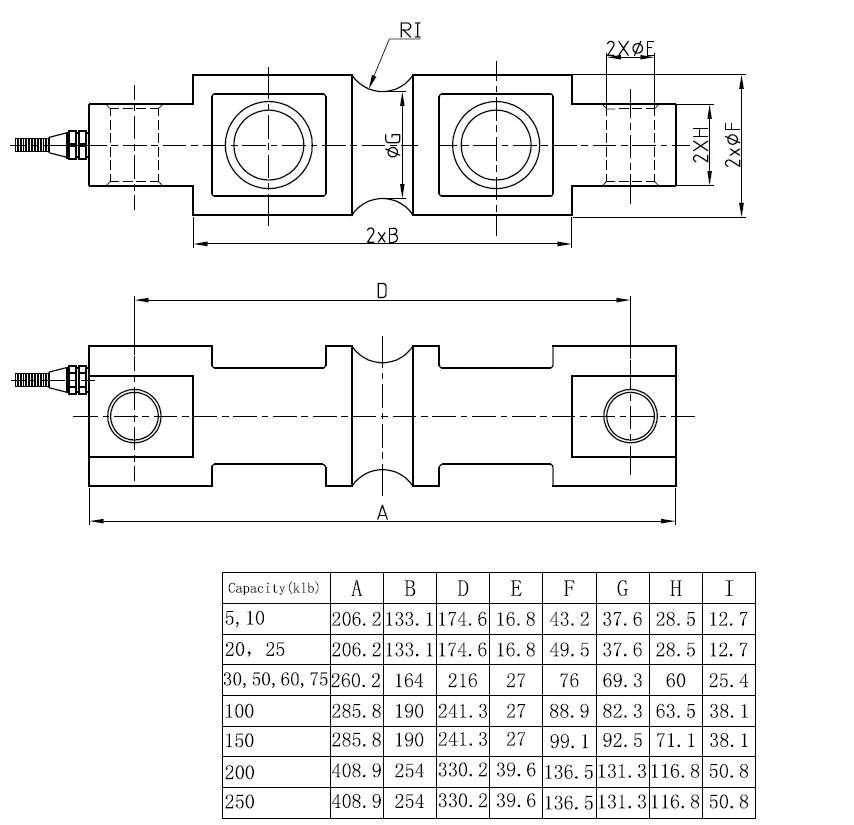

OUTLINE DIMENSIONS in mm

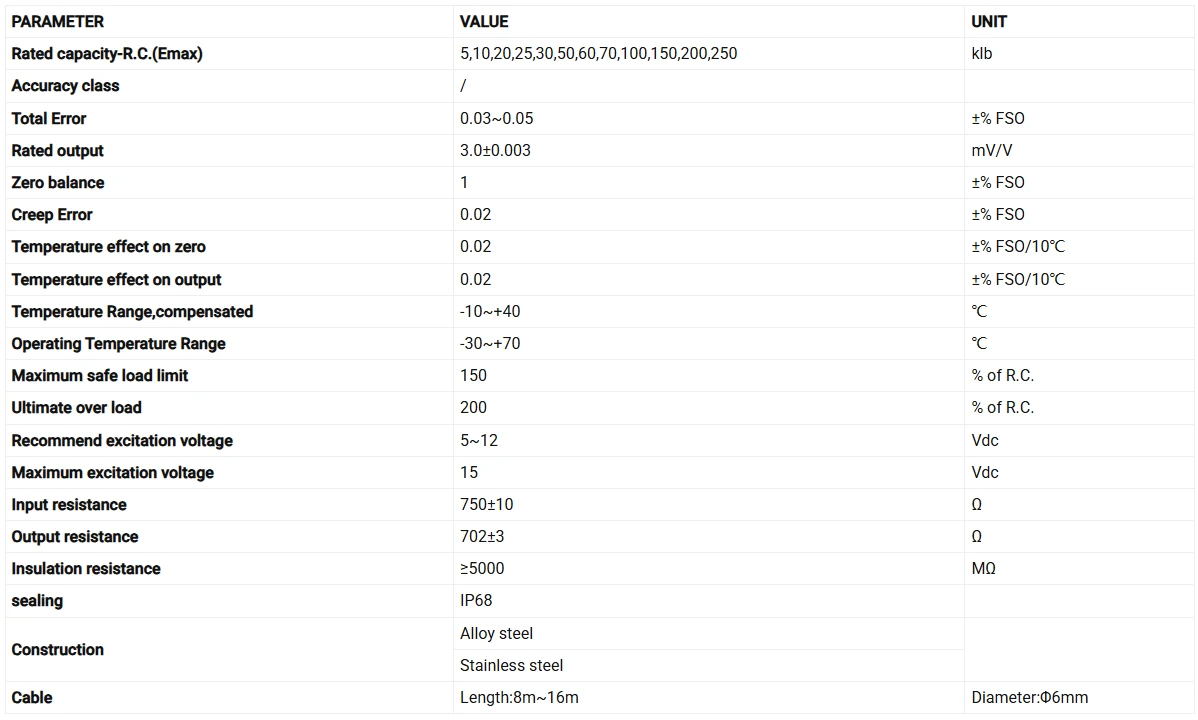

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
