High Accuracy Load Pin

Reference: HC-LP
SPECIAL FEATURES:
1. Electroleess nickel-plated alloy tool steel;
2. Environmental protection: IP67;
3. Designed for Crane,Timber Truck, Graincarts;
4. Supply customized services;
5. Optinal: Stainless steel,output signal 4-20mA or 0-10V;

Send Inquiry

Description

DESCRIPTION

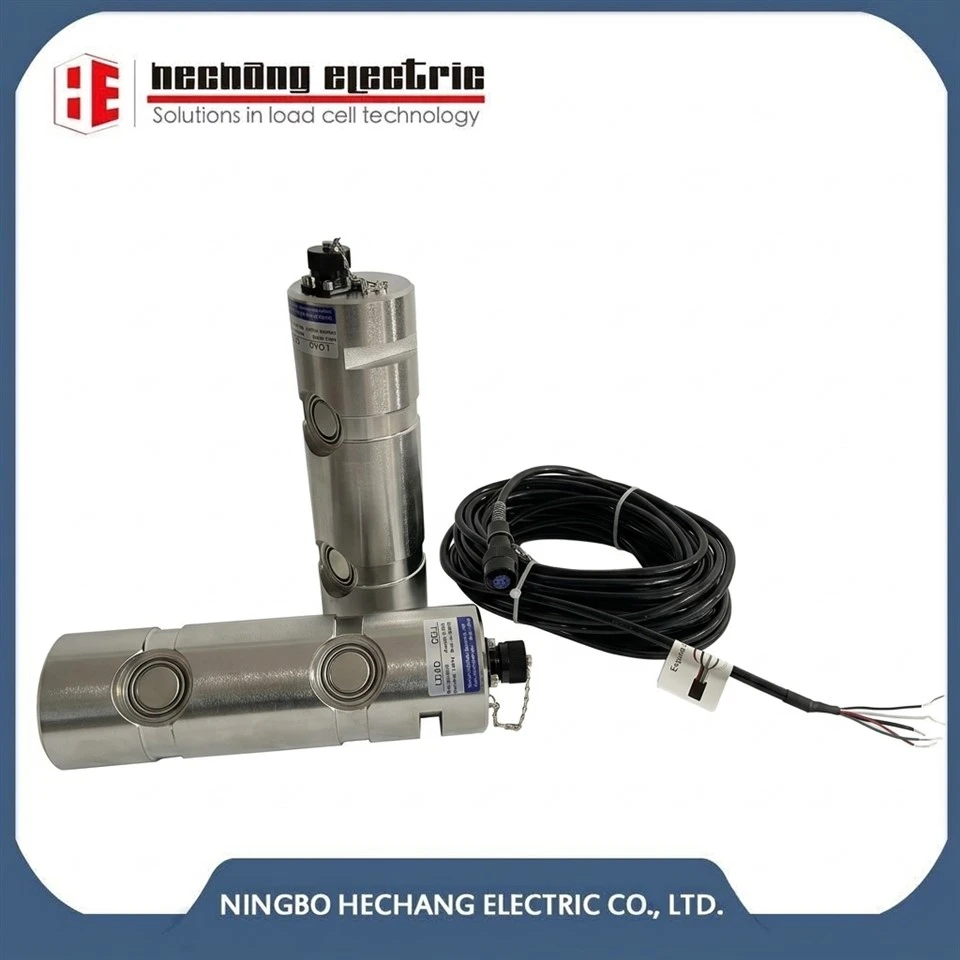

HC-LP is a load pin made of electroless nickel-plated alloy tool steel, offering good wear and corrosion resistance with IP67 protection. It is designed for cranes, timber trucks, grain carts, and other similar applications, with customized services available.

APPLICATIONS

Designed for Crane,Timber Truck, Graincarts...
Supply customized services
Optinal: Stainless steel, output signal 4-20mA or 0-10V

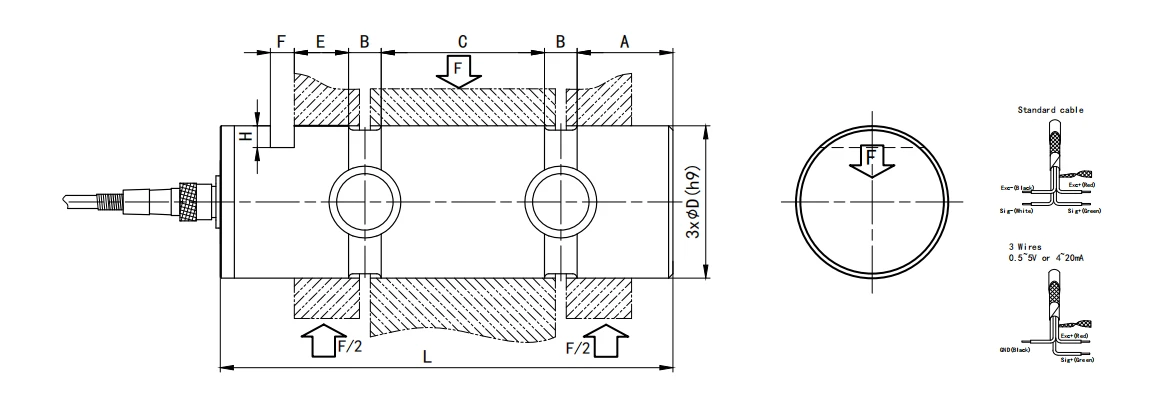

OUTLINE DIMENSIONS in mm

product-1160-419

Capacity(t)	A	B	C	D	E	F	H	L
7	44	15	75	65	25	11	10	208
10
15
20
25				70
30				78
40	44	15	100	85	25	11	10	235
50
60	31	15	168	100	31	11	14	293
80
100	66	35	120		55	10.5	14	350
125				125	45	12.5	20	341
150			130
other

SPECIFICATIONS

Rated capacity	See table
Rated output	1.0mV
Tolerance on sensitivity	±0.01mV/V
Zero balance	±0.02mV/V
Non-linearity	±0.5% FSO
Hysteresis Error	±0.5% FSO
Creep in 30min	±0.1% FSO
Temperature effect on zero	±0.1% FSO/10℃
Temperature effect on sensitivity	±0.1% FSO/10℃
Temperature Range,compensated	-10~+40℃
Operating Temperature Range	-30~+70℃
Safe load limit	150% of R.C.
Ultimate overload	300% of R.C.
Recommend excitation voltage	5~12VDC
Maximum excitation voltage	15VDC
Input resistance	750±50Ω
Output resistance	702±3Ω
Insulation resistance	≥5000MΩ(50V DC)
Protection class(IP)	IP68
Construction	Alloy steel, Nickel Plated
Cable	Φ6 X 5m
Cable wiring code	Excitation(+): Red
	Excitation(-): Black
	Signal(+): Green
	Signal(-): White
	Shield: Thick Black
