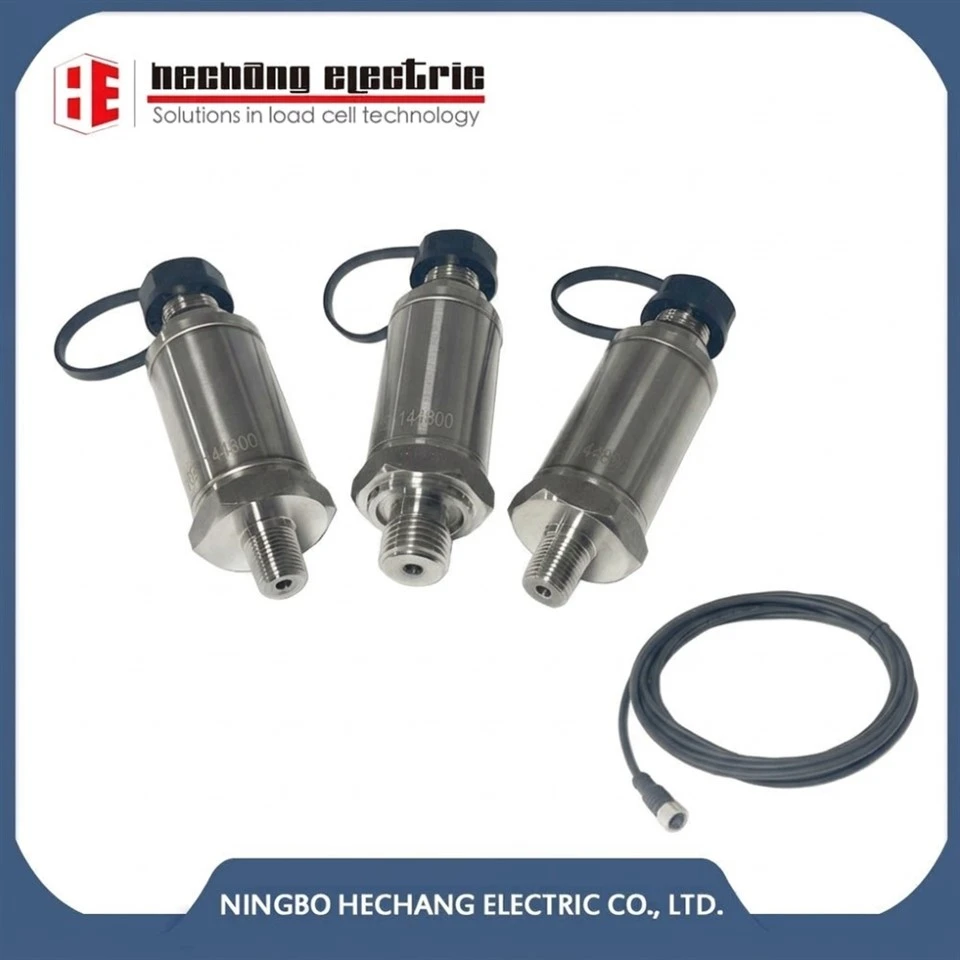

High Accuracy Pressure Sensor

Reference: HC-P
SPECIAL FEATURES:
1. Wide pressure range, small size, high accuracy;
2. Environmental protection: IP67;
3. Sensitivity: 10mV;
4. Applied in many fields where measurement of pressure is required;

Send Inquiry

Description

The HC-P model is a pressure sensor featuring a wide pressure range, compact size, and high accuracy. It provides IP67 environmental protection, offering good dust and water resistance for stable operation in various environments. With a sensitivity of 10 mV, it responds sensitively to pressure changes, facilitating signal acquisition and processing. Thanks to its compact structure and reliable performance, the HC-P is widely used in many fields where pressure measurement is required, providing a practical sensing solution for relevant applications.

Applied in many fields where measurement of pressure is required.

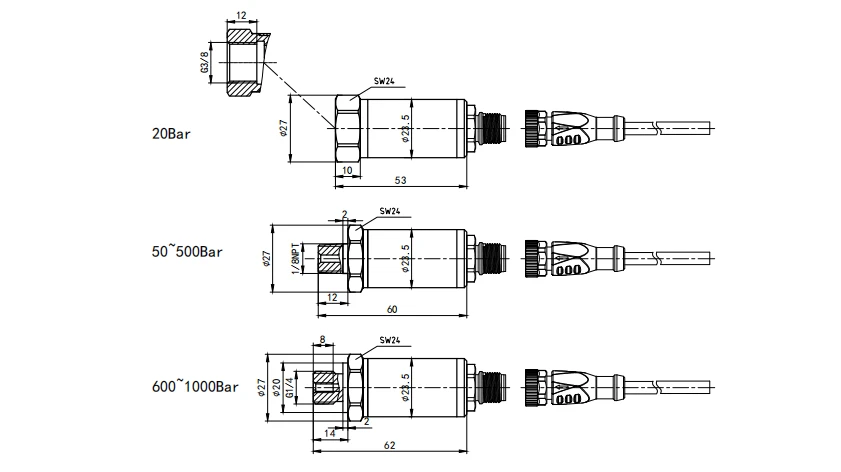

product-841-472

Rated capacity	20~1000bar
Rated output	1.0mV/V
Tolerance on sensitivity	±0.2mV/V
Zero balance	±0.02mV/V
Non-linearity	±0.5% FSO
Temperature effect on zero	±0.1% FSO/10℃
Temperature effect on sensitivity	±0.1% FSO/10℃
Temperature Range,compensated	-10~+40℃
Operating Temperature Range	-30~+70℃
Safe load limit	150% of R.C.
Ultimate overload	250% of R.C.
Recommended excitation voltage	5~12VDC
Maximum excitation voltage	15VDC
Input resistance	350±50Ω
Output resistance	350±10Ω
Insulation resistance	≥2000MΩ(50V DC)
Protection class(IP)	IP67
Construction	Stainless steel
Cable	Φ5 X 5m
Cable wiring code	Pin1: Excitation(+): Brown
	Pin2: Signal(-): White
	Pin3: Signal(+): Blue
	Pin4: Excitation(-): Black
	Shield: Thick Black
