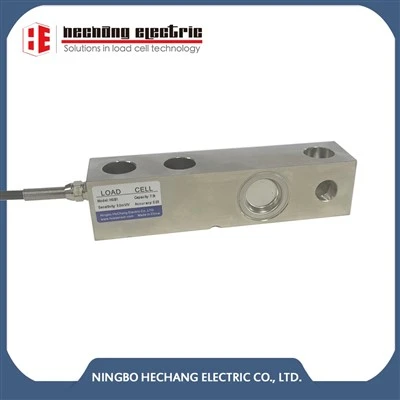

Single-Ended Beam Load Cell
Reference: HC-SB
SPECIAL FEATURES:
1. Capacity 300kg~25t;
2. Sensitivity: 2.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP67~IP68;
6. Optinal: stainless steel;
7. Interchange with Mettler Toledo SB;
Description
DESCRIPTION
The HC-SB is a high performance stainless steel beam type load cell. An integral mounting step removes the need for spacer plates and ensures optimum "bolt down" conditions. This product is suitable for small and medium platform scales, hybrid scales, pallet weighers and process weighing. The fully welded construction and the cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical, and allied process industries.
APPLICATIONS
● Platform scales
● Belt scales
● Overhead track scales
● Silo and hopper weighing

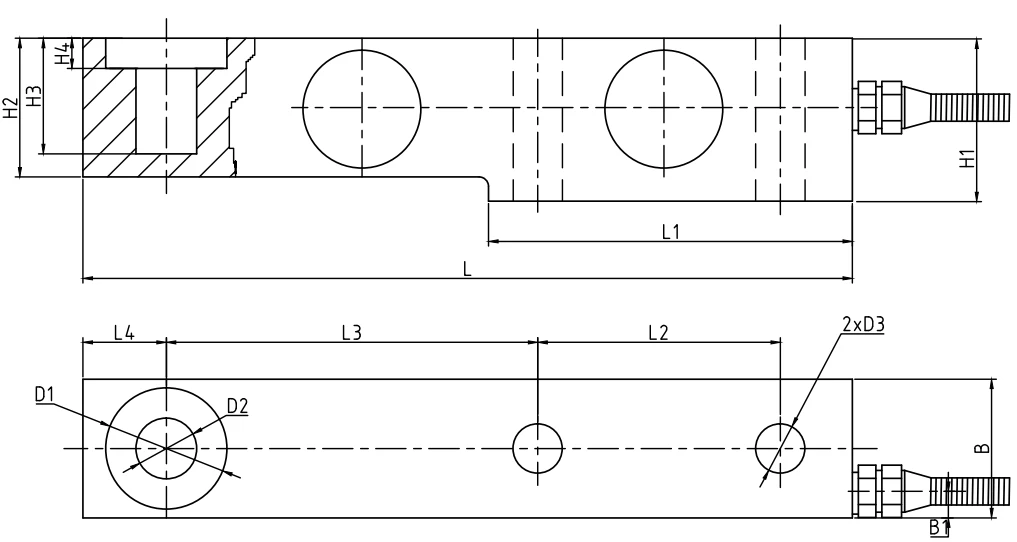

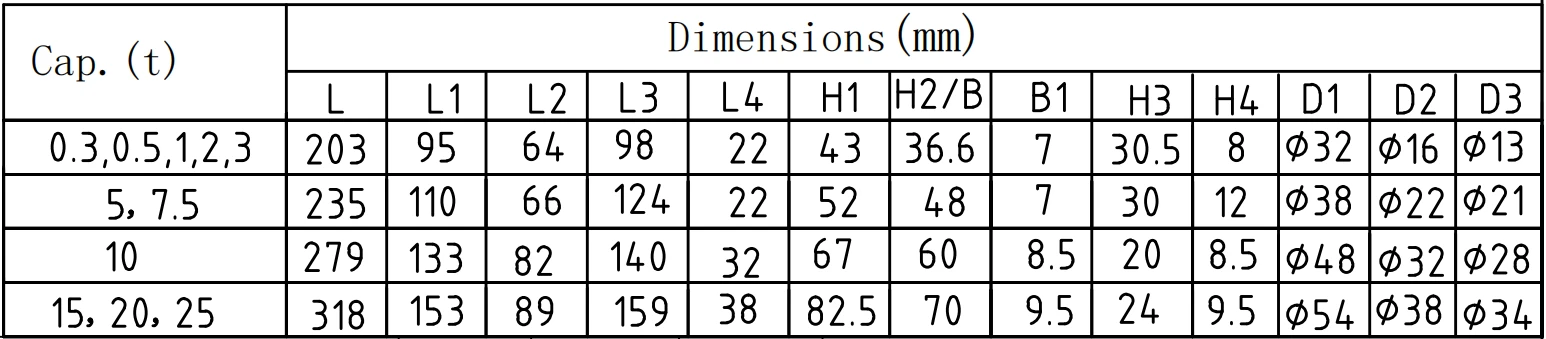

OUTLINE DIMENSIONS in mm

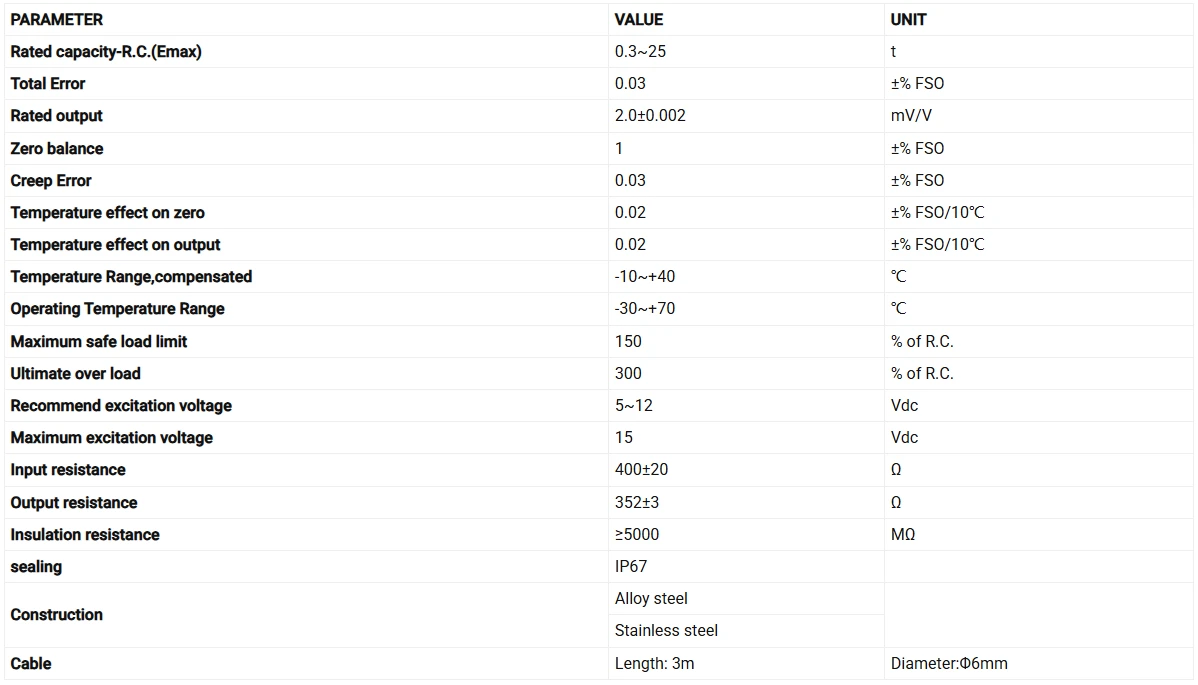

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
