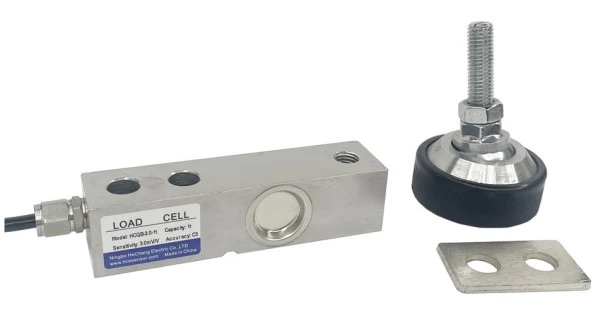

Hermetically Sealed Shear Beam Load Cell
Reference: HCQB
SPECIAL FEATURES:
1. Capacity 100kg~2500kg;
2. Sensitivity: 2.0mV/V or 3.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP67~IP68;
6. Optinal: stainless steel;
Description
DESCRIPTION
HCQB is a hermetically sealed shear beam load cell designed for multiple cell applications such as low profile platform or small tank scales when used with proper mounting accessories. The shear beam load cell is insensitive to side loading and capable of reversed loading.
APPLICATIONS
● Truck/rail scales
● Silo/hopper/tank weighing
● Platform scales (multiple load cells)
● Pallet truck scales
● Packaging machines

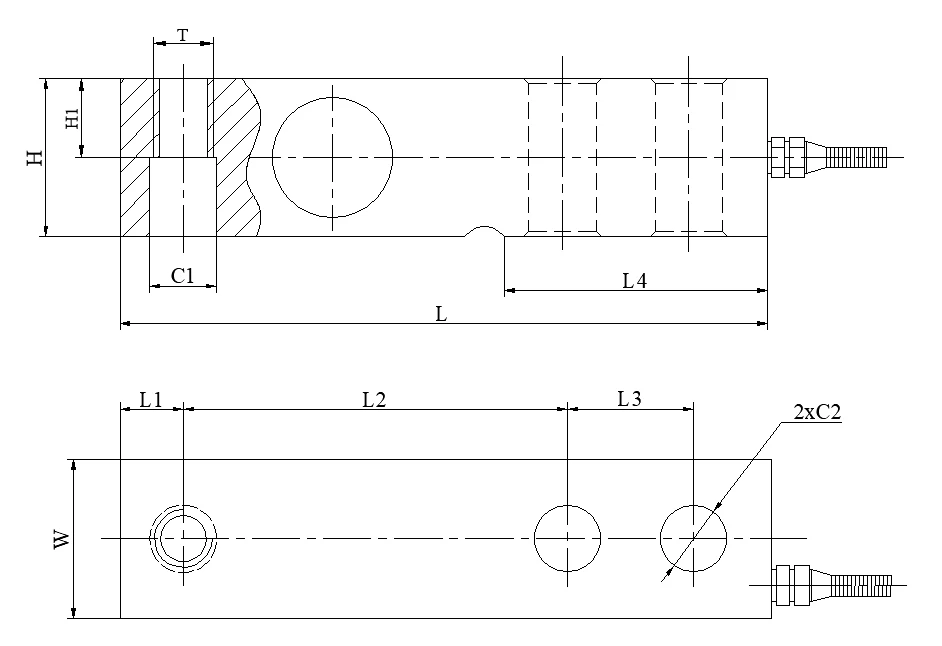

OUTLINE DIMENSIONS in mm
|
Outline Dimension |
|||||||||||
|
Rated capacity(klb) |
L |
L1 |
L2 |
L3 |
L4 |
H |
H1 |
W |
C1 |
C2 |
T |
|
0.5/0.75/1/1.5/ |
130 |
12.7 |
76.2 |
25.4 |
53.5 |
31.8 |
15.7 |
31.8 |
Φ13.5 |
Φ13 |
1/2-20UNF-2B |
|
5/7.5/10 |
171.5 |
19 |
95.3 |
38.1 |
72.5 |
38.1 |
19.05 |
38.1 |
Φ20 |
Φ20 |
3/4-16UNF-2B |
|
15/20 |
225.5 |
25.3 |
124 |
50.8 |
102 |
50.8 |
25.4 |
50.8 |
Φ27 |
Φ27 |
1-14UNS |

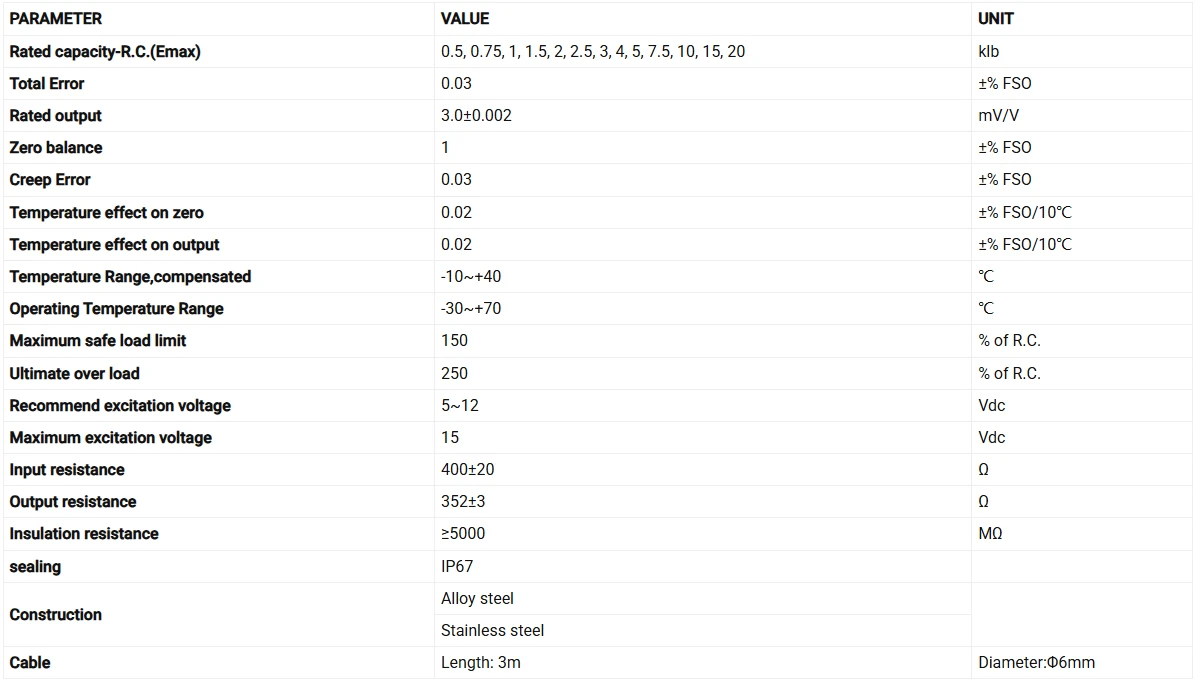

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
