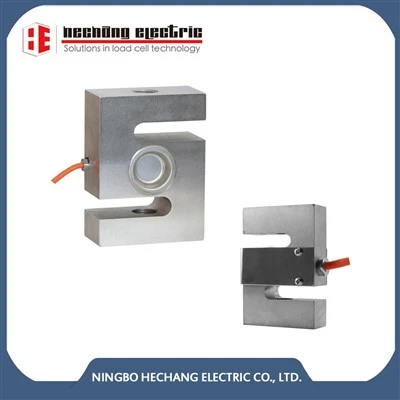

Universal Load Cell
Reference: ST
SPECIAL FEATURES:
1. Capacity 20kg~10t;
2. Sensitivity: 2.0mV/V;
3. Environmental protection: IP65~IP68;
4. Electroleess nickel-plated alloy tool steel;
5. Suitable for compression and tension applications;
6. Optinal: stainless steel;
Description
DESCRIPTION
The S-type load cell, as the name indicates, can be easily identified by S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized. ST is made of Alloy Steel or Stainless Steel, sealed to IP67 providing excellent protection against moisture and humidity.
APPLICATIONS
- Electro-mechanical conversion scales
- Silo/hopper/tank weighing
- Crane scales
- Fork-lift scales
- Dosing/filling
- Universal material tester
- Tensile/pulling force measurement

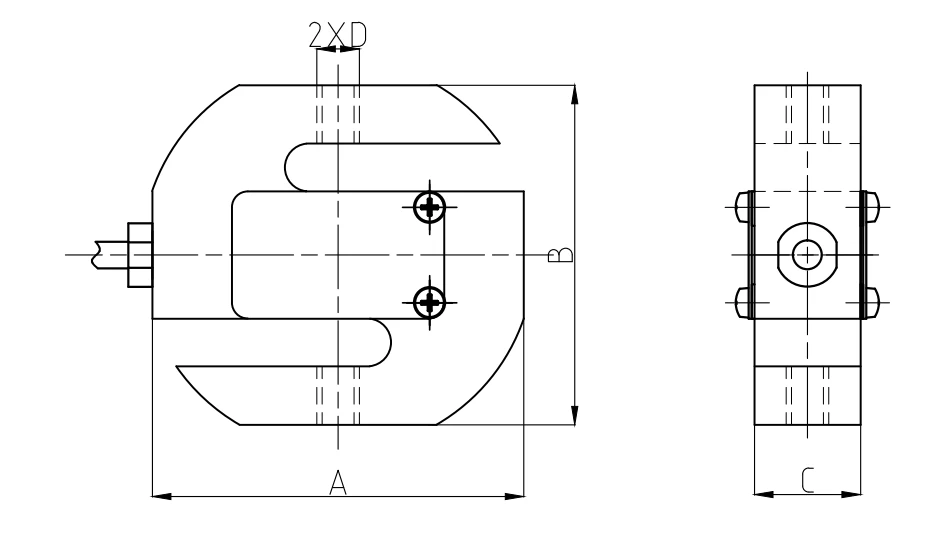

OUTLINE DIMENSIONS in mm

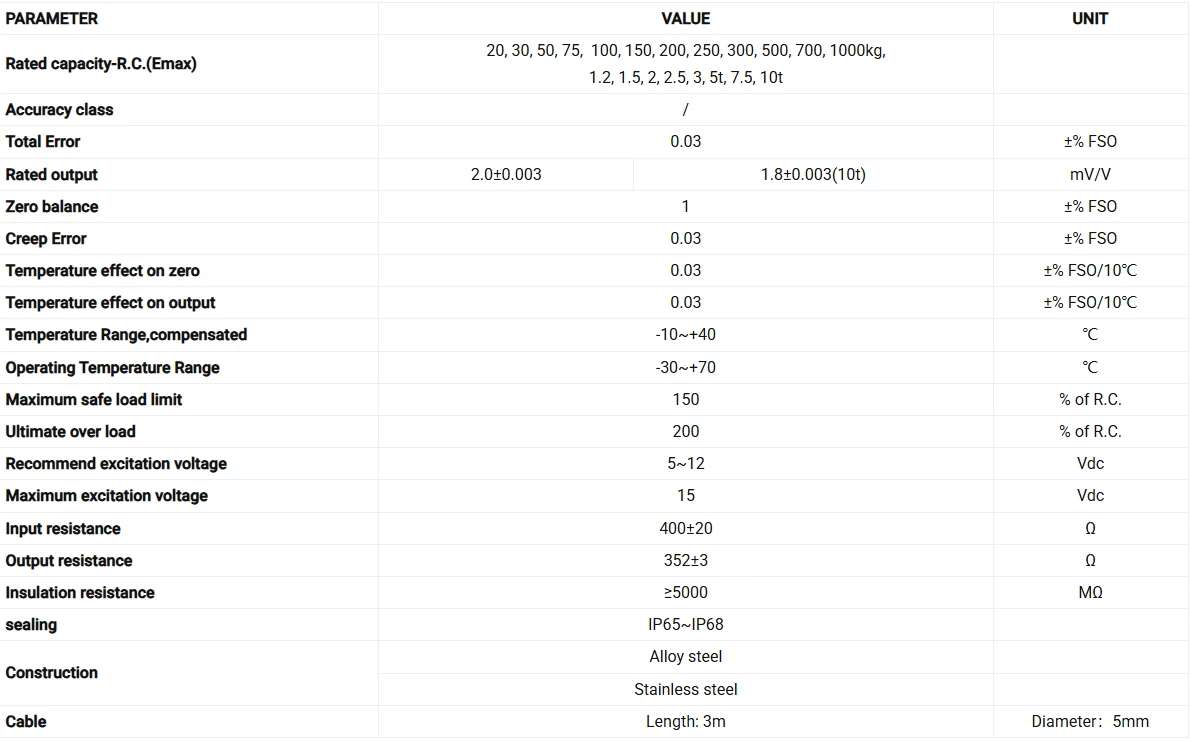

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
