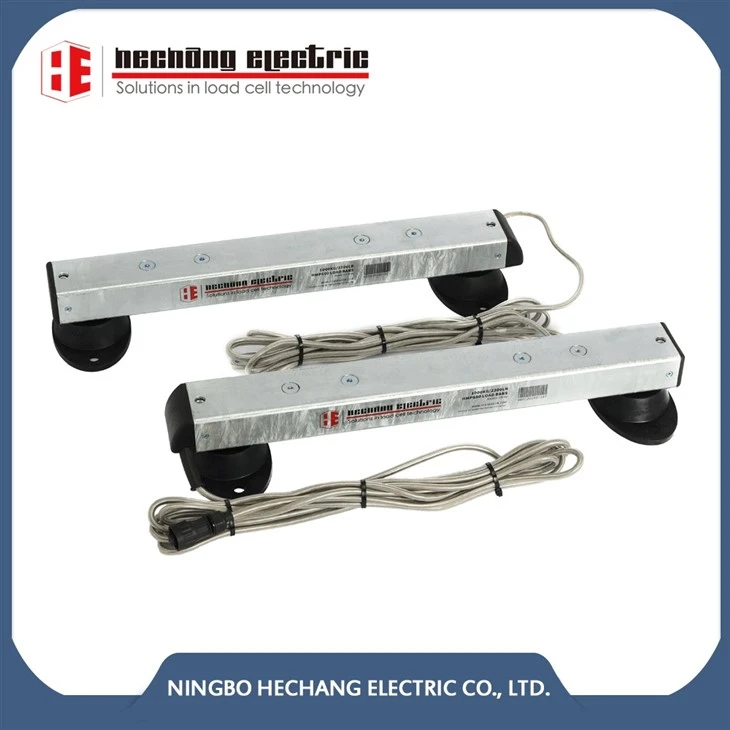

Alleyway Scale Load Bar HMP600
Reference: HMP600
SPECIAL FEATURES:
1. Compatible with Hechang HC331W scale indicator;
2. Corrosion resistant, galvanized steel housing;
3. Rubber feet provide extra grip and shock protection;
4. HMP600 - 600mm long | 2000kg capacity;
5. Interchangeable products Tru-Test MP600;
Description
DESCRIPTION
HMP600 with 600mm(23") long, 2000kg(4400 lb) capacity. Designed for use in a variety of single-animal portable applications, including alleyway platforms, cages or small animal crates. It can compatibale with Tru-Test's MP600 load bars and indicators.
SPECIAL FEATURES
- Capacity: 2000kg;
- Waterproof Class: IP67;
- Built-in aricraft grade aluminum load cell;
- Designed for platforms, alleyways, crates, cages, and temporary installations;
- Interchangeable products Tru-Test MP600;

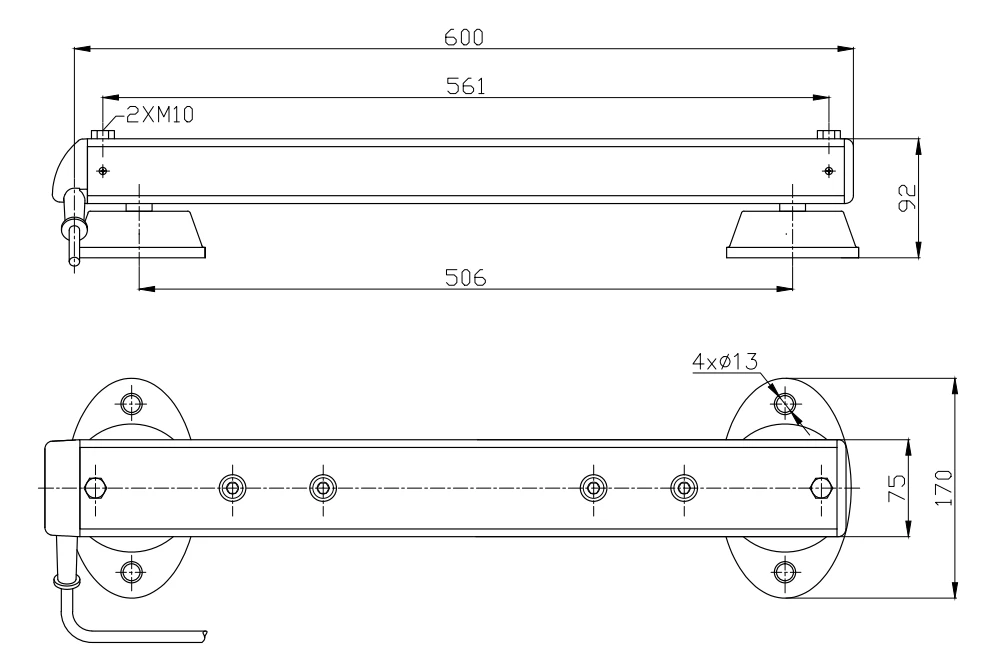

OUTLINE DIMENSIONS in mm
SPECIFICATIONS
| Specifications | |||||
| Models | HMP600 | ||||
| Nominal Length | 600mm | ||||
| Total Capacity | 2000kg | ||||
| Resolution | 0.5kg | ||||
| Platfom Fixing Centers | 561 mm | ||||
| Bar section width | 75mm | ||||
| Height | 92mm | ||||
| Weight(pair) | 16kg | ||||
| Cable Length | 5m | ||||
| Cable Type | 4 wires PUR cable with double shield | ||||
| Load Cell Type | Aluminum shear beam | ||||
| Accuracy | ±1%F.S.or 2d | ||||
| Operating Temperature | -10~+40℃ | ||||
| Selection Guide | Under a platfom | Alleyway | Squeeze chute | Cattle crush | ||||
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Tru-Test | MP600 |
Wiring Schematic Diagram
Universal plug connection
