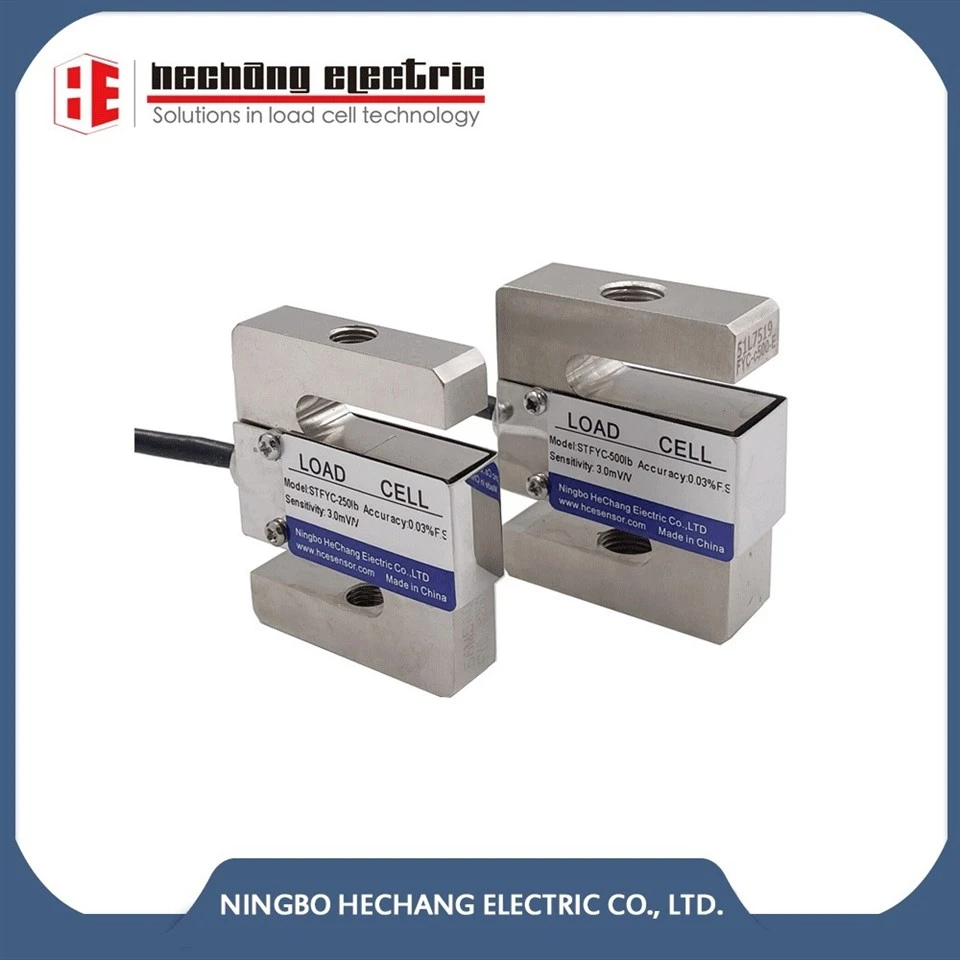

S Type Load Cell
Reference: STEFY
SPECIAL FEATURES:
1. Capacity 100kg~2500kg;
2. Sensitivity: 2.0mV/V or 3.0mV/V;
3. Low profile,high accuracy;
4. Electroleess nickel-plated alloy tool steel;
5. Environmental protection: IP67~IP68;
6. Optinal: stainless steel;
Description
DESCRIPTION
Model STEFY is a tension-compression load cell with a humidity-resistant coating and shielded cables, which enable use in harsh environments while maintaining operating specifications. Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications. Nickel-plated for outstanding corrosion resistance.
APPLICATIONS
● Tank, bin and hopper weighing
● Level and inventory monitoring
● Truck scale conversions
● Tension and compression measurements

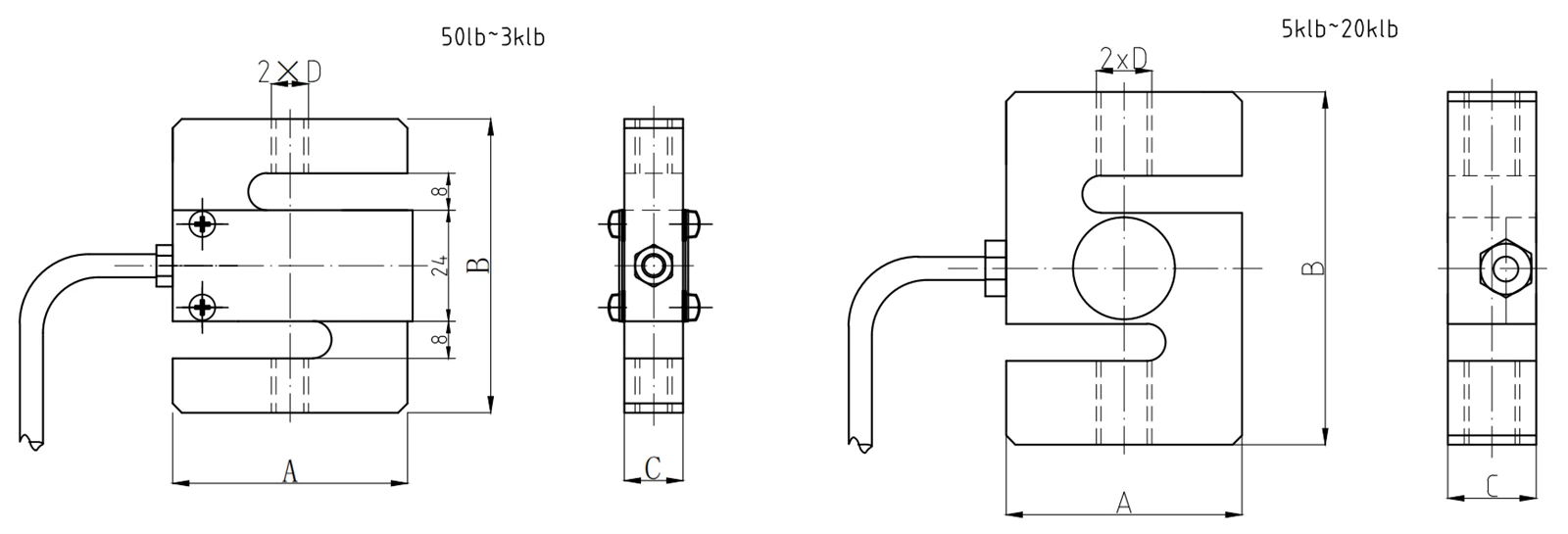

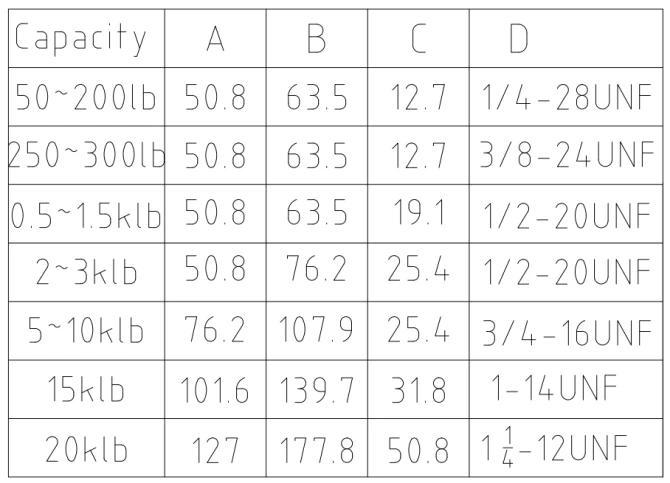

OUTLINE DIMENSIONS in mm

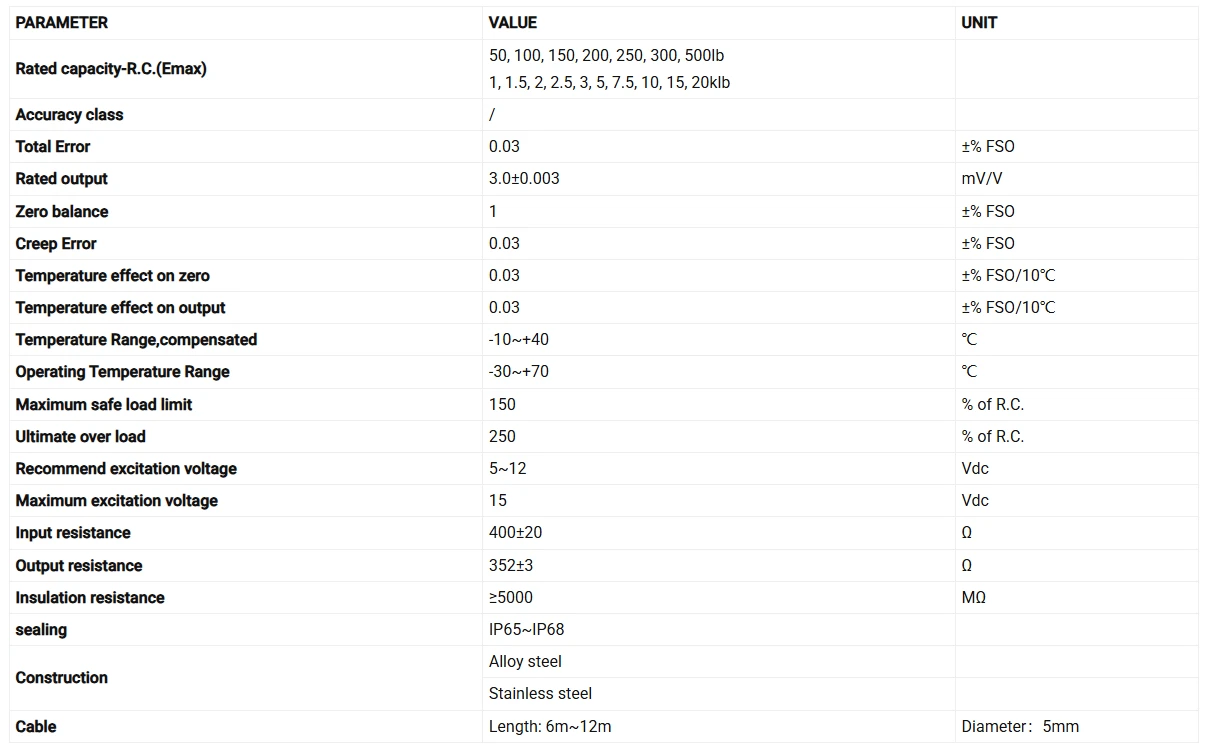

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
Wiring Schematic Diagram
