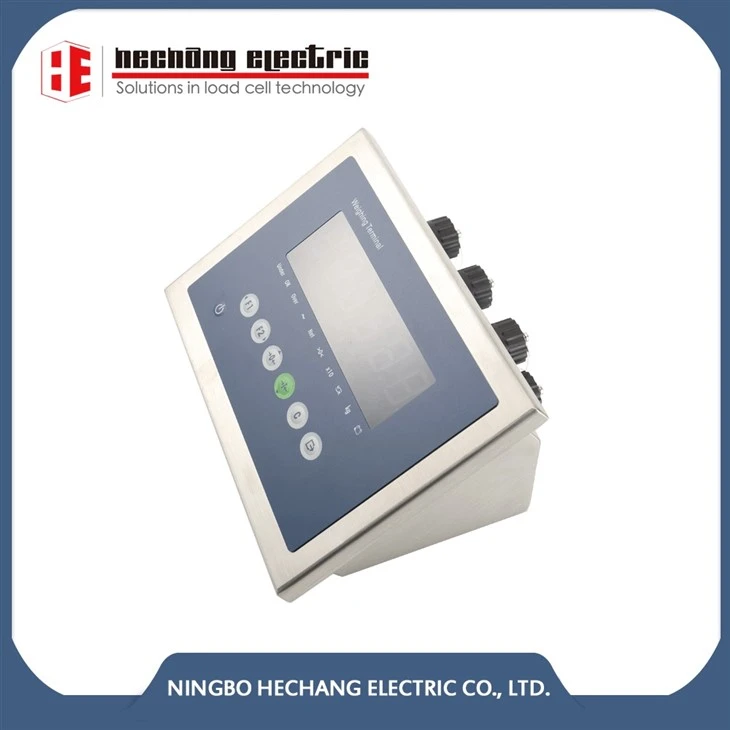

Cattle Scale Weighing Indicator
Reference: HC331
SPECIAL FEATURES:
1. Mainly used for animals weighing, like cattle, sheep, horse...
2. Automatically lock the animal weight in 3 seconds; Auto-zero function;
3. Long life battery; up to 20 hours of run time; charge time 3 hours;
4. SUS304 stainless steel shell, waterproof IP67;
5. Standard Bluetooth transmitter module, RS232/485 interface;
6. Automatic screen saver to save battery life;
Description
DESCRIPTION
The HC331 is mainly used for animal weighing that cannot be stabilized on the scale platform, such as cattle, sheep, horse and other animals.
The WEIGH MODE key allows the operator to choose between HOLD for weighing livestock and FREE for static loads such as produce. Convenient internal rechargeable battery provides 10 to 20 hours of portable weighing. An AC Adaptor/Battery Charger is included. The indicator is pre-calibrated to work with Hechang load bars.
SPECIAL FEATURES
- Mainly used for animals weighing, like cattle, sheep, horse...
- Automatically lock the animal weight in 3 seconds; Auto-zero function;
- Long life battery; up to 20 hours of run time; charge time 3 hours;
- SUS304 stainless steel shell, waterproof IP67;
- Standard Bluetooth transmitter module, RS232/485 interface;
- Automatic screen saver to save battery life;
OUTLINE DIMENSIONS in mm
SPECIFICATIONS
| Specifications | |||||||
| Model | HC331W | ||||||
| Housing | 304 stainless steel | ||||||
| Protection class | IP67 | ||||||
| Display | Extra large,bright red LED display,6 digits,33.4mm high | ||||||
| Accuracy | Maximum display divisions 100,000d | ||||||
| Power supply | Lithium battery pack, 8.4VDC 4000mAh | ||||||
| Communication interface | RS232/RS485 serial port as standard; Bluetooth | ||||||
| Main functions | 1. Animal weighing function, mainly used for weighing cattle, sheep and other animals; 2. Automatically lock the animal weight; 3. Auto-zero function; 4. Automatic screen saver to save battery life; 5. Standard Bluetooth transmitter module, support RS232/485 interface; |
||||||
INTERCHANGEABLE REFERENCE
| Brand | Model |
| / | / |
Wiring Schematic Diagram

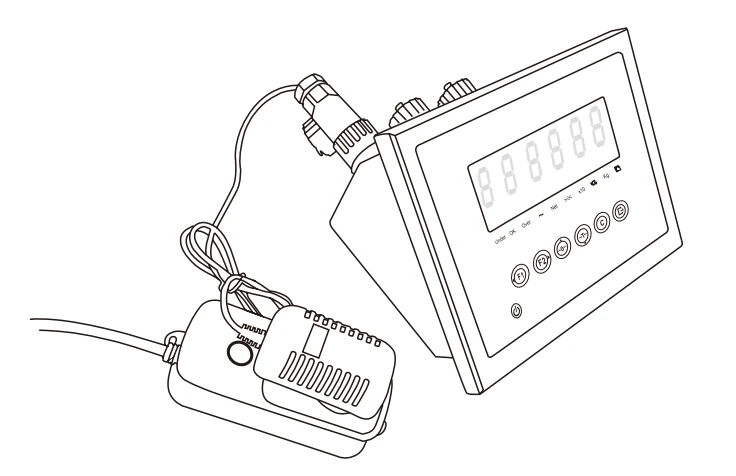

Universal plug connection
