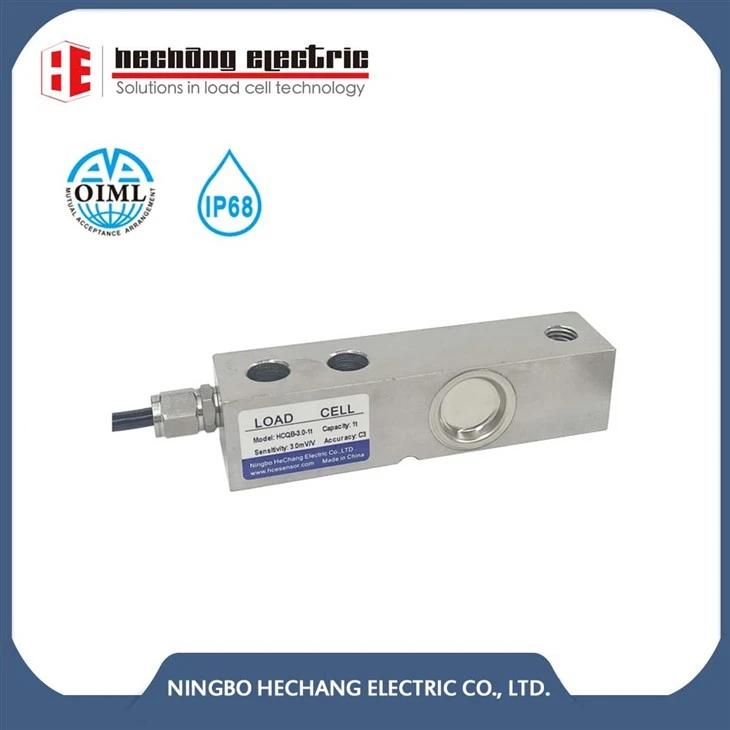

Cattle Scale Shear Beam Load Cell
Reference: HCQB-SS1t
SPECIAL FEATURES:
1. Capacity 1000kg;
2. Sensitivity: 3.0mV/V;
3. Low profile,high accuracy;
4. Stainless steel construction;
5. Environmental protection: IP68;
Description
DESCRIPTION
The shear beam load cell HCQB-SS is stainless stell construction with OIML certificate. The fully welded construction and the cable enntry ensure that this product can be used successfully in harsh environments found in the food, chemical and farming.
SPECIAL FEATURES
- Capacity 1000kg;
- Sensitivity: 3.0mV/V;
- Low profile,high accuracy;
- Stainless steel construction;
- Environmental protection: IP68;
OUTLINE DIMENSIONS in mm

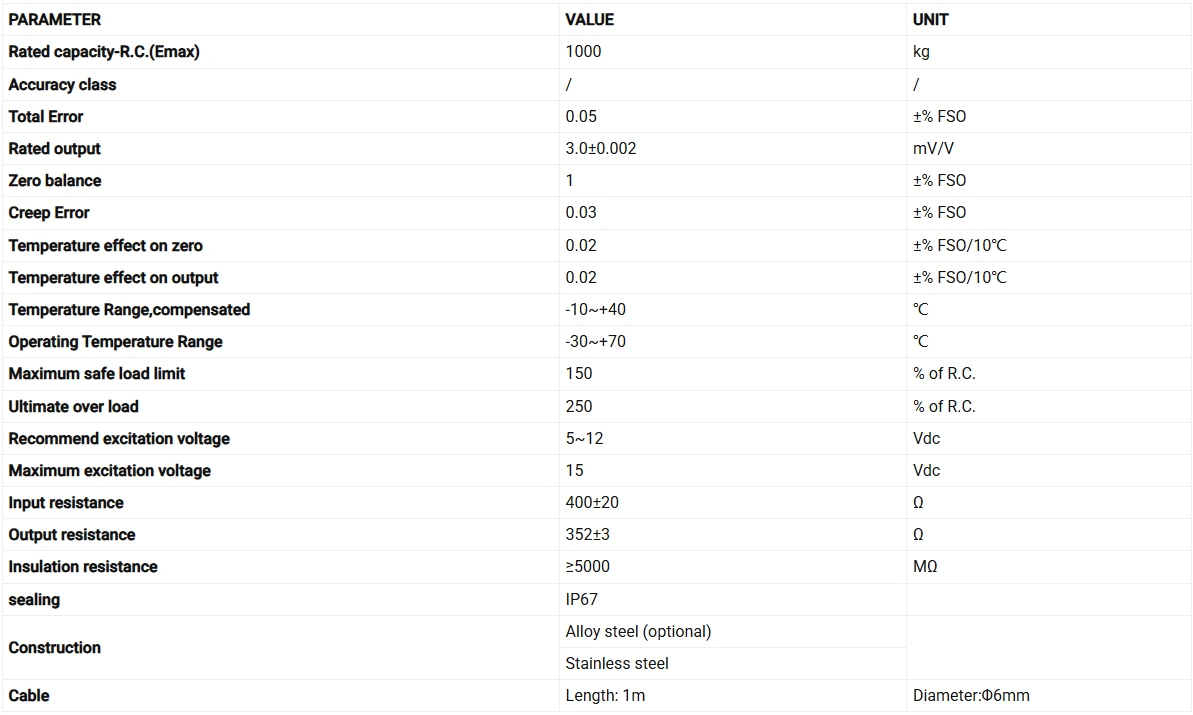

SPECIFICATIONS
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
INTERCHANGEABLE REFERENCE
| Brand | Model |
| / | / |
Wiring Schematic Diagram
