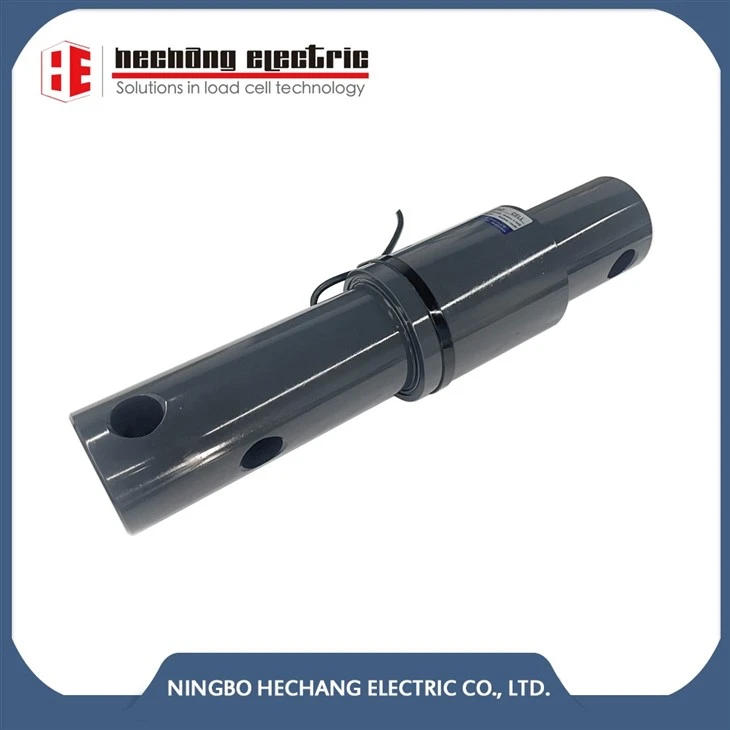

2.875" Diameter Hitch Weighbar
Reference: WBB7340
SPECIAL FEATURES:
1. Static Capacity: 30klb, Mobile Capacity 20klb;
2. Cable Connector: Standard Wires;Overall Diameter: 2.875";
3. Overall Length: 15.75"
4. Waterproof Class: IP67;
5. Electroleess nickel-plated alloy tool steel;
6. Interchangeable products DG969-0430, DG969-0431;
Description
DESCRIPTION
The trailer hitch weighbar is primarily used as part of the trailer hitch kit. It works with flat load cells on the rear chassis to achieve 3-point or 5-point weighing.
SPECIAL FEATURES
- Static Capacity: 30klb, Mobile Capacity 20klb;
-
Cable Connector: Standard Wires;
-
Overall Diameter: 2.875" , Overall Length: 15.75"
- Waterproof Class: IP67;
- Electroleess nickel-plated alloy tool steel;
- Interchangeable products DG969-0430, DG969-0431;
OUTLINE DIMENSIONS AND SPECIFICATIONS
To view dimensions and specifications, please contact us or log in!
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Dinamica Generale | 969-0430 |
| Dinamica Generale | 969-0431 |
Wiring Schematic Diagram
