Harvest Cart Weighing Load Cell
Reference: WBL63
SPECIAL FEATURES:
1. Static Capacity 7.5t, Mobile Capacity 5t;
2. Environmental protection: IP67;
3. Electroleess nickel-plated alloy tool steel;
4. Designed for Grain Cart,Chaser bin, Trailer...
5. Supply customized services;
6. Optional: Painted, ECP connector;
7. Interchangeable products DG969-0188, Avery Weigh-Tronix AWT35-501313...
Description
DESCRIPTION

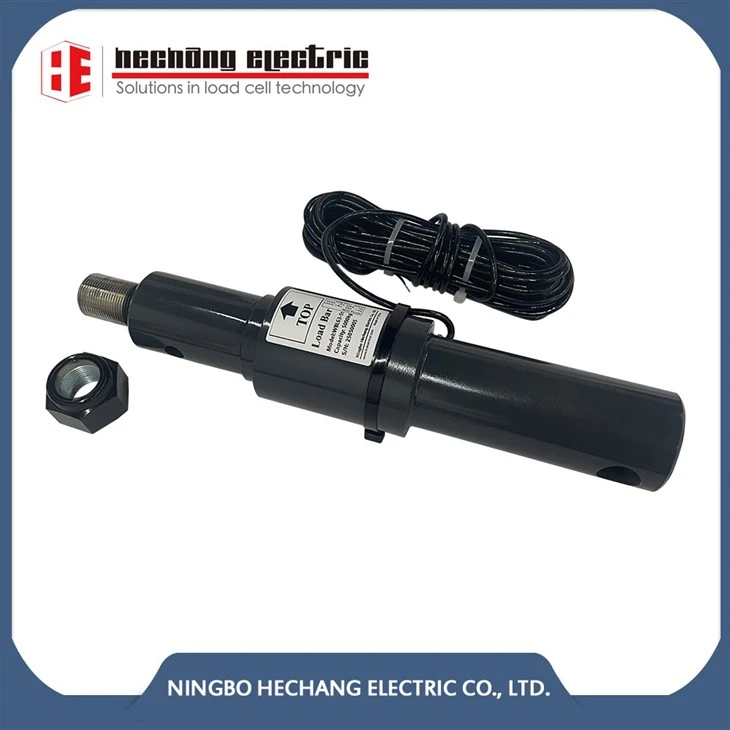

The Harvest Cart Weighing Load Cell WBL63 is a high precision round bar for Grain Cart, Chaser bin, Trailer... This load bar diameter 63mm, length 410mm with M33X2 head thread. With its nick-plated alloy steel body and sealing protection, it provides reliable precision in demanding agriculture environment applications.
SPECIAL FEATURES
- Staic Capacity 7.5t, Mobile capacity 5t;
- Designed for Grain Cart,Chaser bin, Trailer...;
- Environmental protection: IP67;
- PUR cables: maximum protection against moisture, flame, and temperature (operating temperature -40° C ~ 70° C)
- Interchangeable products DG969-0188, Avery Weigh-Tronix AWT35-501313...
OUTLINE DIMENSIONS AND SPECIFICATIONS
To view dimensions and specifications, please contact us or log in!
INTERCHANGEABLE REFERENCE
| Brand | Model |
| Dinamica Generale | 969-0188 |
| Avery Weigh-Tronix | AWT35-501313 |
Wiring Schematic Diagram
